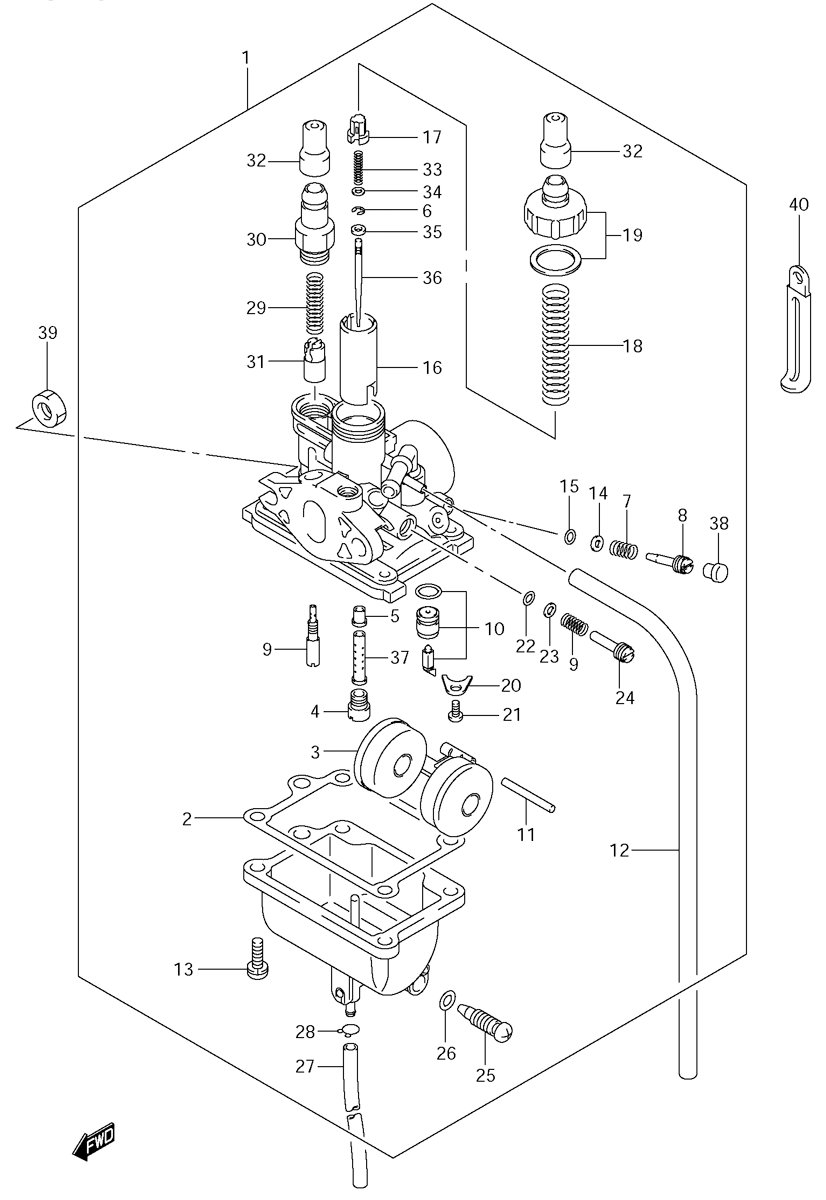

CARBURETOR ASSY. для Suzuki DR-Z70K9 - 2009 года выпуска
-
№АртикулНазвание
-
113200-14H00 CARBURETOR ASSEMBLY (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)CARBURETOR ASSEMBLY (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)
-
113200-14H01 CARBURETOR ASSEMBLY (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)CARBURETOR ASSEMBLY (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)
-
213251-02410 ...GASKET...GASKET
-
313250-02500 ...FLOAT...FLOAT
-
409491-55006 ...JET, MAIN (55)...JET, MAIN (55)
-
513341-14H00 ...JET, NEEDLE (E-5M)...JET, NEEDLE (E-5M)
-
613533-98410 ...E RING...E RING
-
713268-35010 ...SPRING...SPRING
-
813483-16A01 ...SCREW...SCREW
-
909492-17012 ...JET, PILOT (17.5)...JET, PILOT (17.5)
-
1013370-36G00 ...VALVE ASSEMBLY, NEEDLE...VALVE ASSEMBLY, NEEDLE
-
1113254-20010 ...PIN, FLOAT...PIN, FLOAT
-
1209352-50903-600 ...HOSE (5X9X600)...HOSE (5X9X600)
-
1313601-04148 ...SCREW...SCREW
-
1413291-35010 ...WASHER...WASHER
-
1513295-33010 ...O RING...O RING
-
1613551-36G00 ...VALVE, PISTON...VALVE, PISTON
-
1713418-12F40 ...HOLDER...HOLDER
-
1813268-36G00 ...SPRING...SPRING
-
1913261-36G00 ...CAP...CAP
-
2013373-46710 ...PLATE...PLATE
-
2102112-03063 ...SCREW...SCREW
-
2213295-29900 ...O RING...O RING
-
2313291-29900 ...WASHER...WASHER
-
2413269-43G00 ...ADJUSTER (2.0) (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)...ADJUSTER (2.0) (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)
-
2413269-43G00 ...ADJUSTER (1,1/4) (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)...ADJUSTER (1,1/4) (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)
-
2513247-09G10 ...PLUG, DRAIN...PLUG, DRAIN
-
2613278-02330 ...O RING...O RING
-
2709355-30705-600 ...HOSE (3X7X600)...HOSE (3X7X600)
-
2813529-98010 ...CLIP...CLIP
-
2913417-37200 ...SPRING...SPRING
-
3013418-14H00 ...CAP, STARTER...CAP, STARTER
-
3113411-22G00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
3213416-26F00 ...CAP...CAP
-
3313481-23F00 ...SPRING...SPRING
-
3413382-23F00 ...WASHER...WASHER
-
3513387-23F00 ...RING...RING
-
3613383-14H00 ...NEEDLE, JET...NEEDLE, JET
-
3713385-14H00 ...PIPE (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)...PIPE (SERIAL NUMBER JS1JB41A 82102377 AND BELOW)
-
3713385-14H10 ...PIPE (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)...PIPE (SERIAL NUMBER JS1JB41A 82102378 AND ABOVE)
-
3813281-05A00 ...PLUG...PLUG
-
3909140-06027 NUTNUT
-
4009404-06433 CLAMPCLAMP
