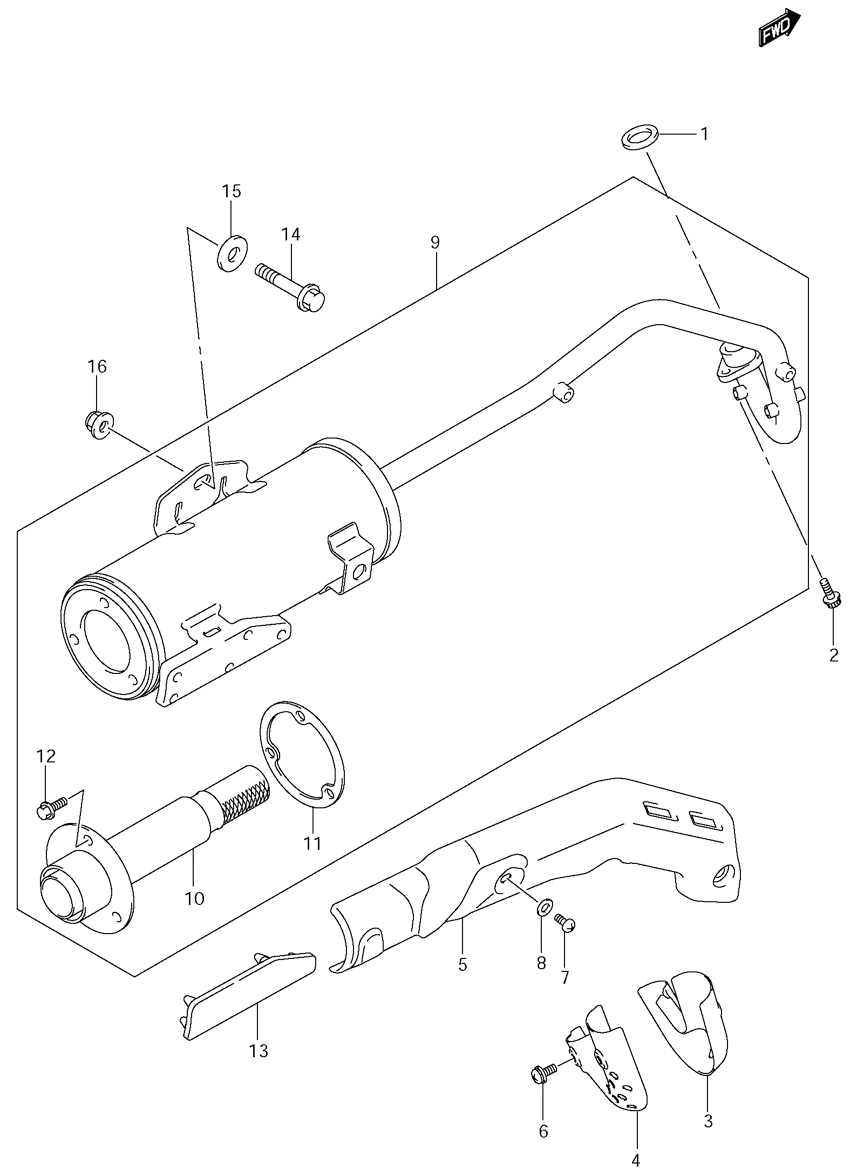

MUFFLER для Suzuki DR-Z70K9 - 2009 года выпуска
-
№АртикулНазвание
-
114181-09D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
207120-0620A BOLTBOLT
-
314186-14H00 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
414187-14H00 COVER, EXHAUST PIPE INNERCOVER, EXHAUST PIPE INNER
-
514188-14H00 COVER, EXHAUST PIPE NO.2COVER, EXHAUST PIPE NO.2
-
602112-7508A SCREW, COVERSCREW, COVER
-
709106-05030 SCREW, COVER RRSCREW, COVER RR
-
808322-0105A WASHERWASHER
-
914310-14H00 BODY, MUFFLERBODY, MUFFLER
-
1014850-14H00 ...ARRESTER...ARRESTER
-
1114773-08G00 ...GASKET...GASKET
-
1209103-06273 ...BOLT...BOLT
-
1314782-14H00 PROTECTOR, HEAT GUARDPROTECTOR, HEAT GUARD
-
1409103-08388 BOLTBOLT
-
1509160-08127 WASHERWASHER
-
1608319-3108A NUTNUT
