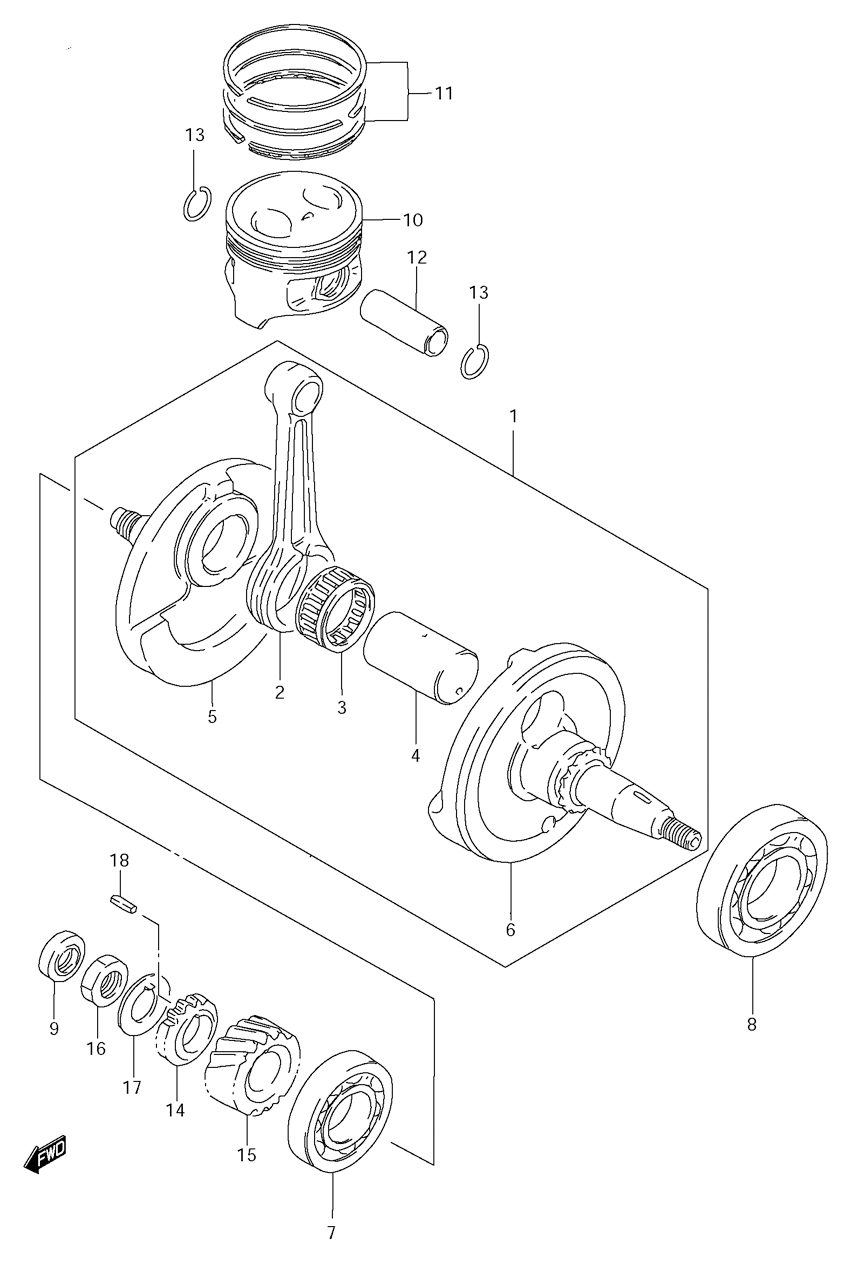

CRANKSHAFT W/ PISTON для Suzuki DR200SEK9 - 2009 года выпуска
-
№АртикулНазвание
-
112200-42A21 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
212161-42A01 ...ROD, CONNECTING...ROD, CONNECTING
-
309263-31008-0B0 ...BEARING...BEARING
-
412210-42A01 ...PIN, CRANK...PIN, CRANK
-
512221-42A02 ...CRANKSHAFT, RIGHT HAND...CRANKSHAFT, RIGHT HAND
-
612261-42A20 ...CRANKSHAFT, LEFT HAND...CRANKSHAFT, LEFT HAND
-
709262-28014 BEARING (28X68X18)BEARING (28X68X18)
-
809262-35038 BEARING (35X72X17)BEARING (35X72X17)
-
909282-12009 OIL SEAL (12X21X7)OIL SEAL (12X21X7)
-
1012111-42A11-0F0 PISTONPISTON
-
1112140-42A01 RING SET, PISTON (STANDARD) (EXCEPT CALF.)RING SET, PISTON (STANDARD) (EXCEPT CALF.)
-
1112140-22A11 RING SET, PISTON (STANDARD) (FOR CALF. ONLY)RING SET, PISTON (STANDARD) (FOR CALF. ONLY)
-
1212151-22A02 PIN, PISTONPIN, PISTON
-
1309381-16001 SNAP RINGSNAP RING
-
1416321-42A00 GEAR, OIL PUMP DRIVE (NO. OF TEETH: 15)GEAR, OIL PUMP DRIVE (NO. OF TEETH: 15)
-
1521111-42A01 GEAR, PRIMARY DRIVE (NO. OF TEETH: 19)GEAR, PRIMARY DRIVE (NO. OF TEETH: 19)
-
1609140-18004 NUTNUT
-
1709166-18003 WASHERWASHER
-
1809421-04007 KEYKEY
