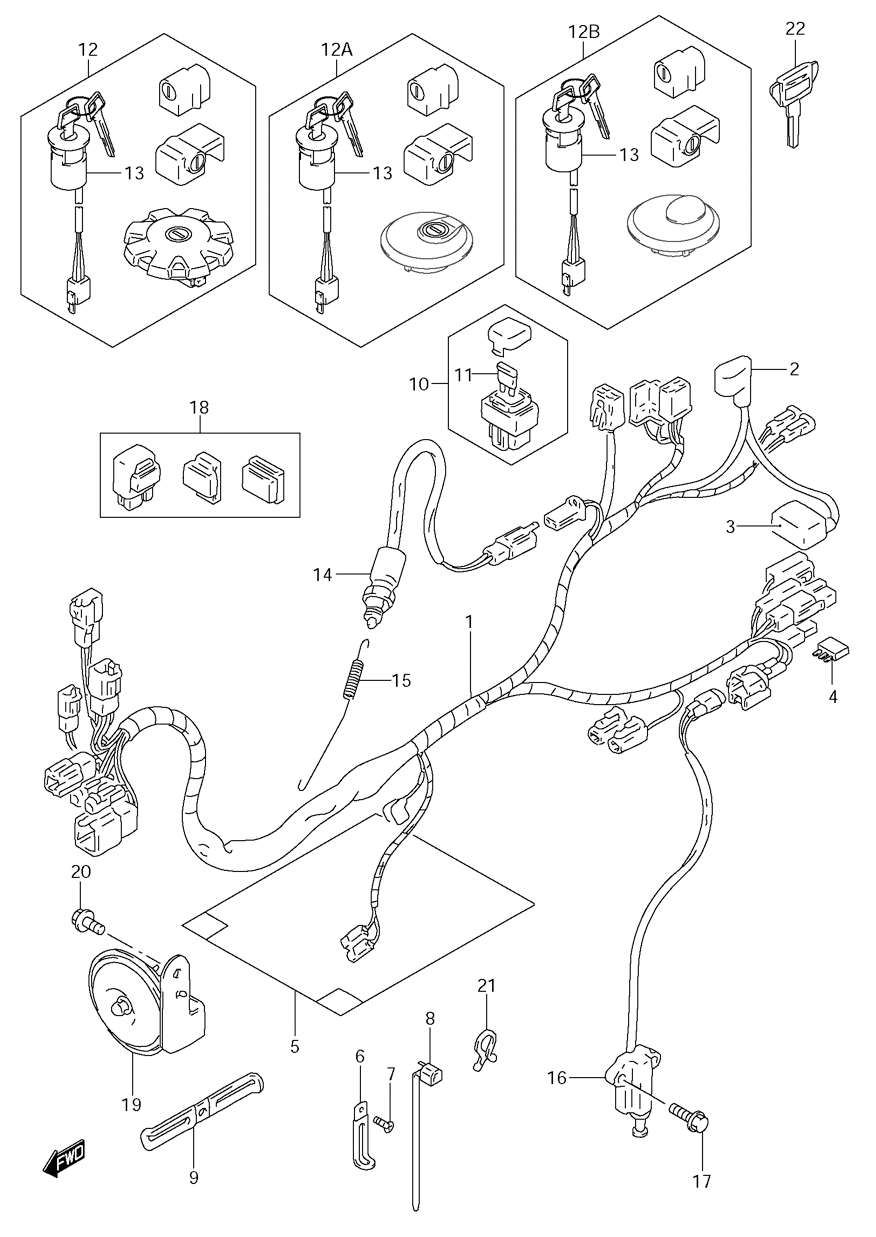

ELECTRICAL - WIRING HARNESS для Suzuki DR200SEK9 - 2009 года выпуска
-
№АртикулНазвание
-
136610-42A50 HARNESS, WIRINGHARNESS, WIRING
-
231861-10D00 ...CAP, RELAY...CAP, RELAY
-
333624-10D00 ...CAP, BATTERY (+)...CAP, BATTERY (+)
-
436611-38A00 ...DIODE...DIODE
-
536618-15D20 COVER, WIRE HARNESSCOVER, WIRE HARNESS
-
609404-06429 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
-
609404-06433 CLAMP (LENGTH: 95)CLAMP (LENGTH: 95)
-
703541-0410B SCREWSCREW
-
809407-11401 CLAMP (LENGTH: 95)CLAMP (LENGTH: 95)
-
809407-14403 CLAMP (LENGTH: 125)CLAMP (LENGTH: 125)
-
809407-18402 CLAMP (LENGTH: 165)CLAMP (LENGTH: 165)
-
809407-25401 CLAMP (LENGTH: 235)CLAMP (LENGTH: 235)
-
936651-05301 CLAMP, STARTER MOTOR LEADCLAMP, STARTER MOTOR LEAD
-
1036740-24B01 BOX ASSEMBLY, FUSEBOX ASSEMBLY, FUSE
-
1109481-20101 ...FUSE (20A)...FUSE (20A)
-
1237000-44820 LOCK SETLOCK SET
-
12B37000-44870 LOCK SET (FOR CALF. ONLY)LOCK SET (FOR CALF. ONLY)
-
1337110-44A01 ...SWITCH ASSEMBLY, IGNITION...SWITCH ASSEMBLY, IGNITION
-
1437740-45D00 SWITCH ASSEMBLY, STOP LAMPSWITCH ASSEMBLY, STOP LAMP
-
1509443-06064 SPRINGSPRING
-
1637840-44X50 SWITCH ASSEMBLY, SIDE STANDSWITCH ASSEMBLY, SIDE STAND
-
1701550-0620B BOLTBOLT
-
1838740-24X50 RELAY ASSEMBLY, SIDE STANDRELAY ASSEMBLY, SIDE STAND
-
1938500-44B00 HORN ASSEMBLYHORN ASSEMBLY
-
2001550-0612B BOLTBOLT
-
2109408-00012 CLIP, LEAD WIRECLIP, LEAD WIRE
-
2237146-03A00 KEY, BLANK (OPTIONAL)KEY, BLANK (OPTIONAL)
-
2237146-03A10 KEY, BLANK (OPTIONAL)KEY, BLANK (OPTIONAL)
-
2237146-03A20 KEY, BLANK (OPTIONAL)KEY, BLANK (OPTIONAL)
-
2237146-03A30 KEY, BLANK (OPTIONAL)KEY, BLANK (OPTIONAL)
