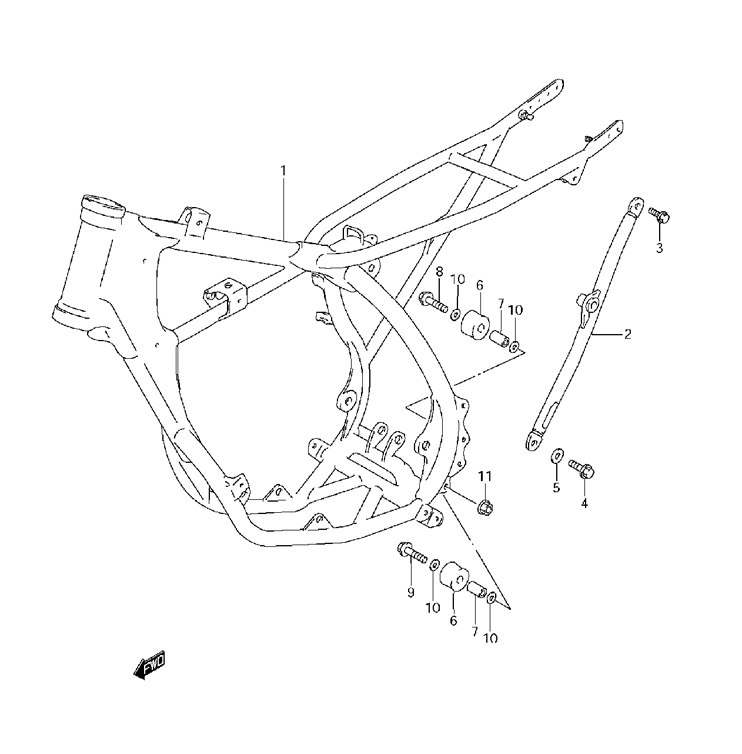

FRAME для Suzuki RM-85K9 - 2009 года выпуска
-
№АртикулНазвание
-
141100-03BB0-YU8 FRAME (GRAY) (YU8)FRAME (GRAY) (YU8)
-
241670-02B30-YU8 TUBE, FRAME SIDE LEFT HAND (GRAY) (YU8)TUBE, FRAME SIDE LEFT HAND (GRAY) (YU8)
-
309100-08274 BOLT, UPPERBOLT, UPPER
-
409100-08284 BOLT, LOWERBOLT, LOWER
-
509160-08120 WASHER, LOWERWASHER, LOWER
-
643911-35B00 ROLLER, CHAIN CONTROLROLLER, CHAIN CONTROL
-
709180-08214 SPACERSPACER
-
809103-08178 BOLT, UPPERBOLT, UPPER
-
909103-08339 BOLT, LOWERBOLT, LOWER
-
1009181-08167 WASHERWASHER
-
1108319-3108A NUTNUT
