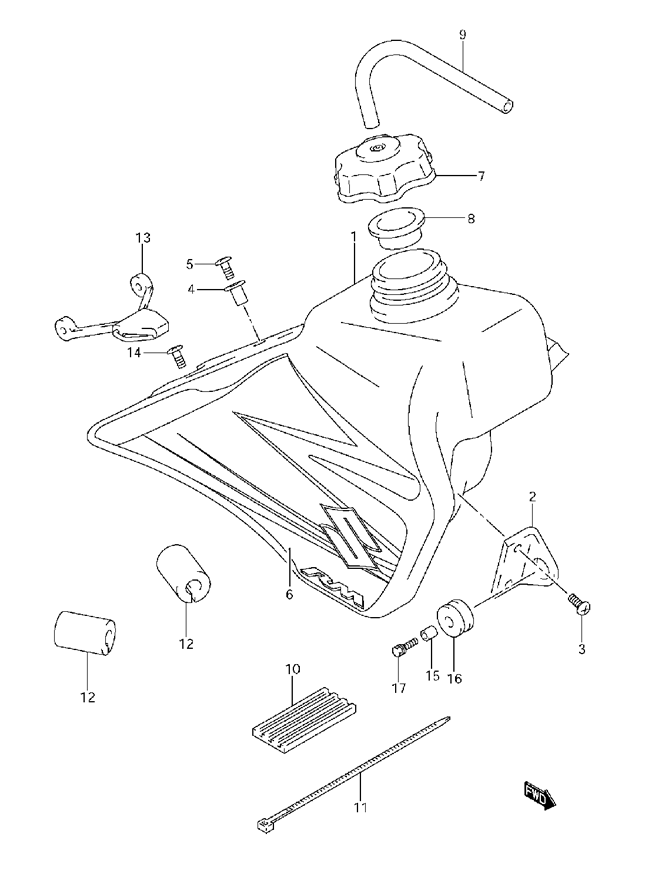

FUEL TANK для Suzuki RM-85K9 - 2009 года выпуска
-
№АртикулНазвание
-
144110-03B10-YU1 TANK, FUEL (YELLOW)(YU1) (INCL. 2-5)TANK, FUEL (YELLOW)(YU1) (INCL. 2-5)
-
244131-27C01 BRACKET, FRONTBRACKET, FRONT
-
302142-0612B SCREWSCREW
-
444132-27C01 HOOK, FRONTHOOK, FRONT
-
502142-0620B SCREWSCREW
-
668110-03BJ0-FYF TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
744210-37F00 CAP, FUELCAP, FUEL
-
844248-27C00 GASKETGASKET
-
909352-50823-600 HOSE (L:600!280)HOSE (L:600!280)
-
1044541-14300 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
1109407-25402 CLAMPCLAMP
-
1244542-17300 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1344560-26C00 BAND, REARBAND, REAR
-
1409139-06134 SCREWSCREW
-
1509180-06268 SPACERSPACER
-
1614762-01B01 CUSHIONCUSHION
-
1709116-06195 BOLTBOLT
