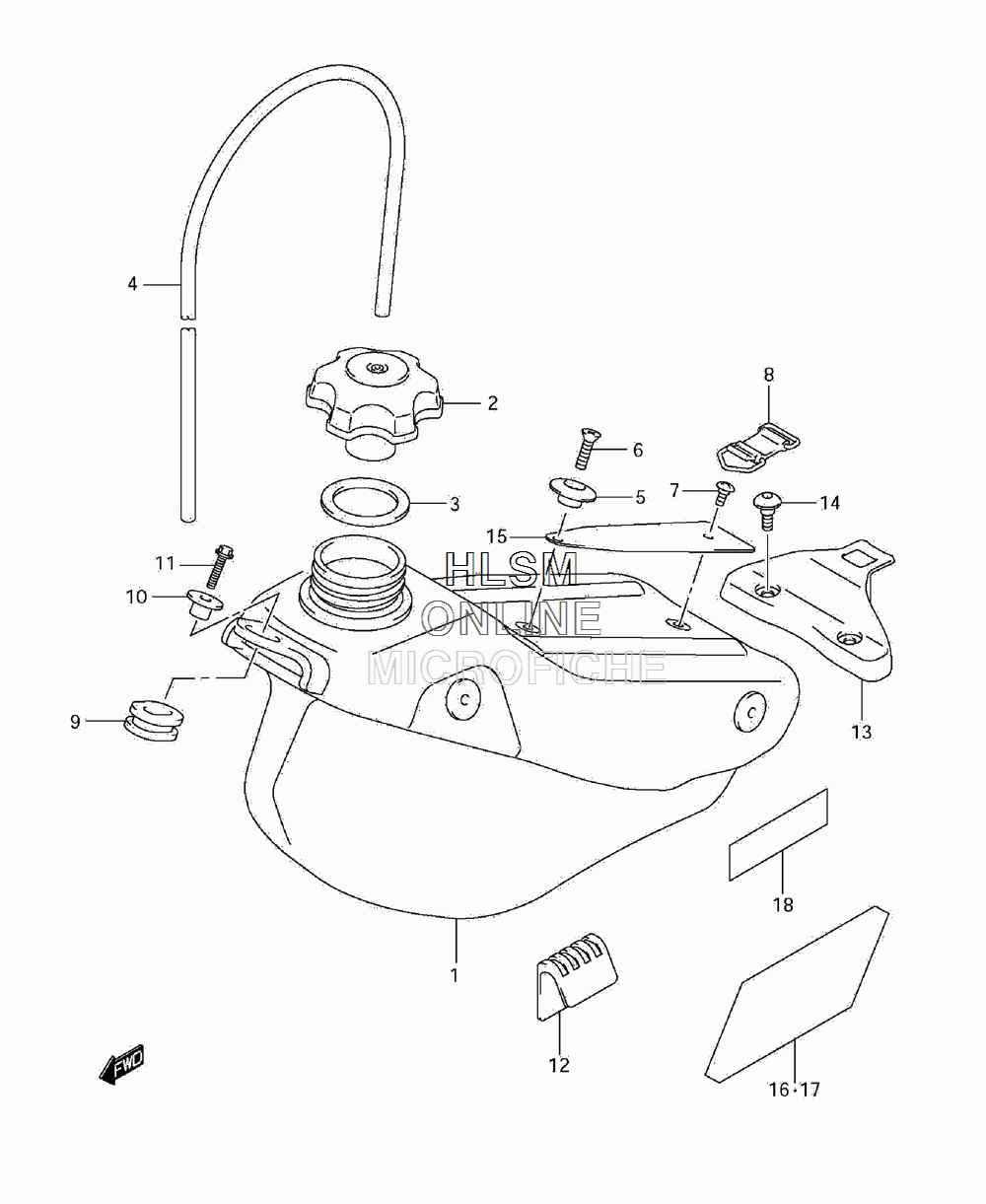

FUEL TANK для Suzuki RMX-450ZL0 - 2010 года выпуска
-
№АртикулНазвание
-
144110-28H01 TANK, FUELTANK, FUEL
-
244210-37F00 CAP, FUEL TANKCAP, FUEL TANK
-
344248-27C00 GASKETGASKET
-
409352-50823-600 HOSE, BREATHER (L:600!350)HOSE, BREATHER (L:600!350)
-
544132-37F10 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
602122-0620B SCREW, HOOKSCREW, HOOK
-
709139-06134 SCREW, TANK BANDSCREW, TANK BAND
-
844560-27C00 BAND, FUEL TANKBAND, FUEL TANK
-
944541-28H00 CUSHION, FRONTCUSHION, FRONT
-
1044134-35G02 SPACERSPACER
-
1109103-06213 BOLT, FRONTBOLT, FRONT
-
1244543-49H00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
1344542-28H10 CUSHION, REARCUSHION, REAR
-
1409139-05074 SCREWSCREW
-
1544280-28H00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
1617795-28H00 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
1717796-28H00 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
1817797-28H00 PROTECTOR, RADIATORPROTECTOR, RADIATOR
