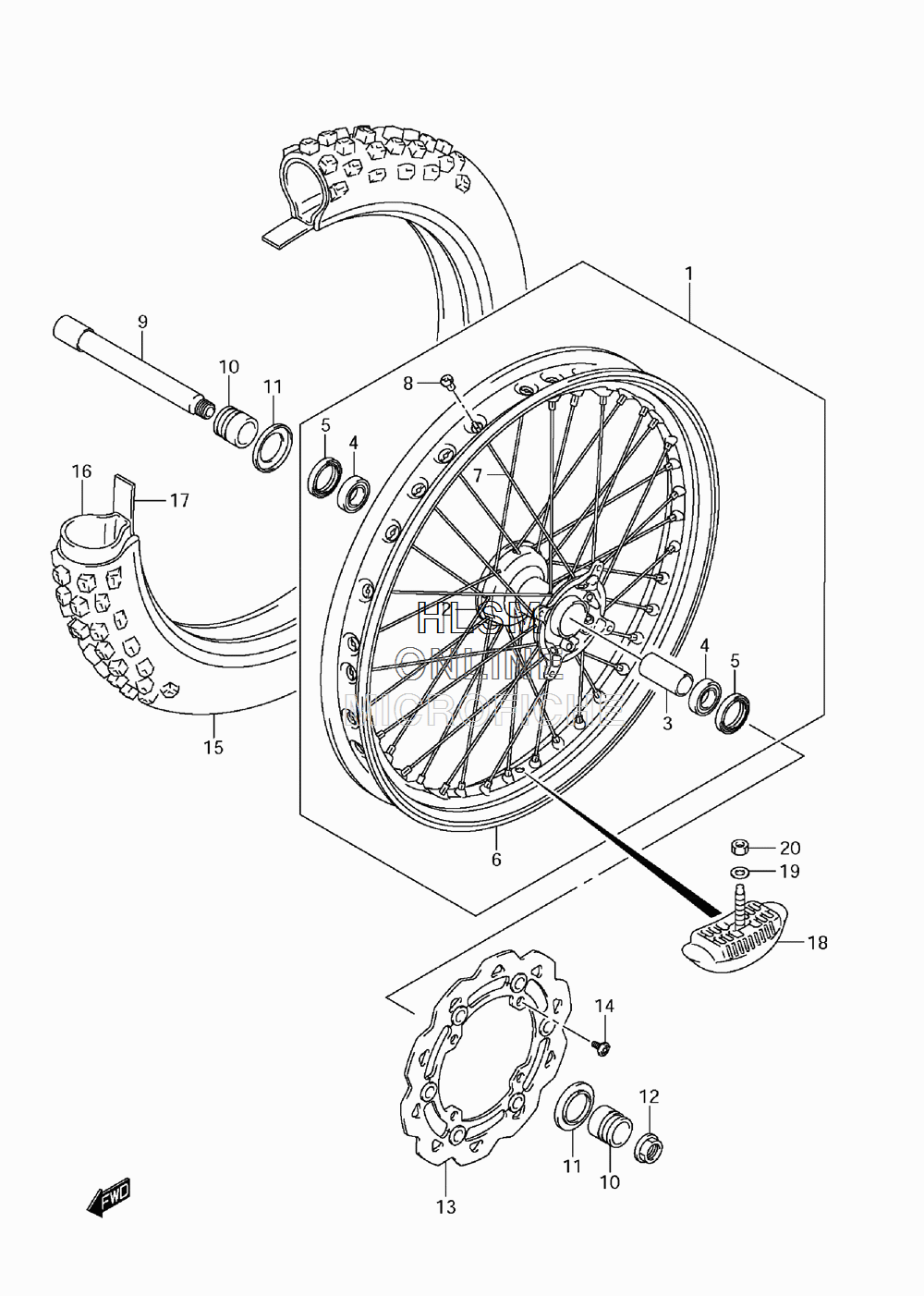

WHEEL - FRONT для Suzuki RMX-450ZL0 - 2010 года выпуска
-
№АртикулНазвание
-
154100-02J00 WHEEL ASSY, FRONT (INCL. 2-8)WHEEL ASSY, FRONT (INCL. 2-8)
-
254111-02J00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
354731-35G00 SPACER, FRONT HUB (20.5X27.3X50)SPACER, FRONT HUB (20.5X27.3X50)
-
409262-22034 BEARING (22X39X9)BEARING (22X39X9)
-
509283-30073 SEAL, FRONT HUBSEAL, FRONT HUB
-
655311-10H00 RIM, FRONT WHEEL (1.60X21)RIM, FRONT WHEEL (1.60X21)
-
755321-35G10 SPOKE, FRONT WHEELSPOKE, FRONT WHEEL
-
855325-35G00 NIPPLE, FRONT WHEELNIPPLE, FRONT WHEEL
-
954711-35G00 AXLE, FRONTAXLE, FRONT
-
1054741-35G00 SPACER, AXLE (L:41)SPACER, AXLE (L:41)
-
1154742-35G00 COVER, FRONT AXLE SPACERCOVER, FRONT AXLE SPACER
-
1209159-18016 NUTNUT
-
1359220-02J00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1409139-06142 SCREW (6X13.5)SCREW (6X13.5)
-
1555110-10H00 TIRE, FRONT (80/100-21) (DUNLOP) 80/100-21TIRE, FRONT (80/100-21) (DUNLOP) 80/100-21
-
1655200-29F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1755261-44AF0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1865270-14300 STOPPER, BEADSTOPPER, BEAD
-
1908322-0108A WASHERWASHER
-
2008310-0008A NUTNUT
