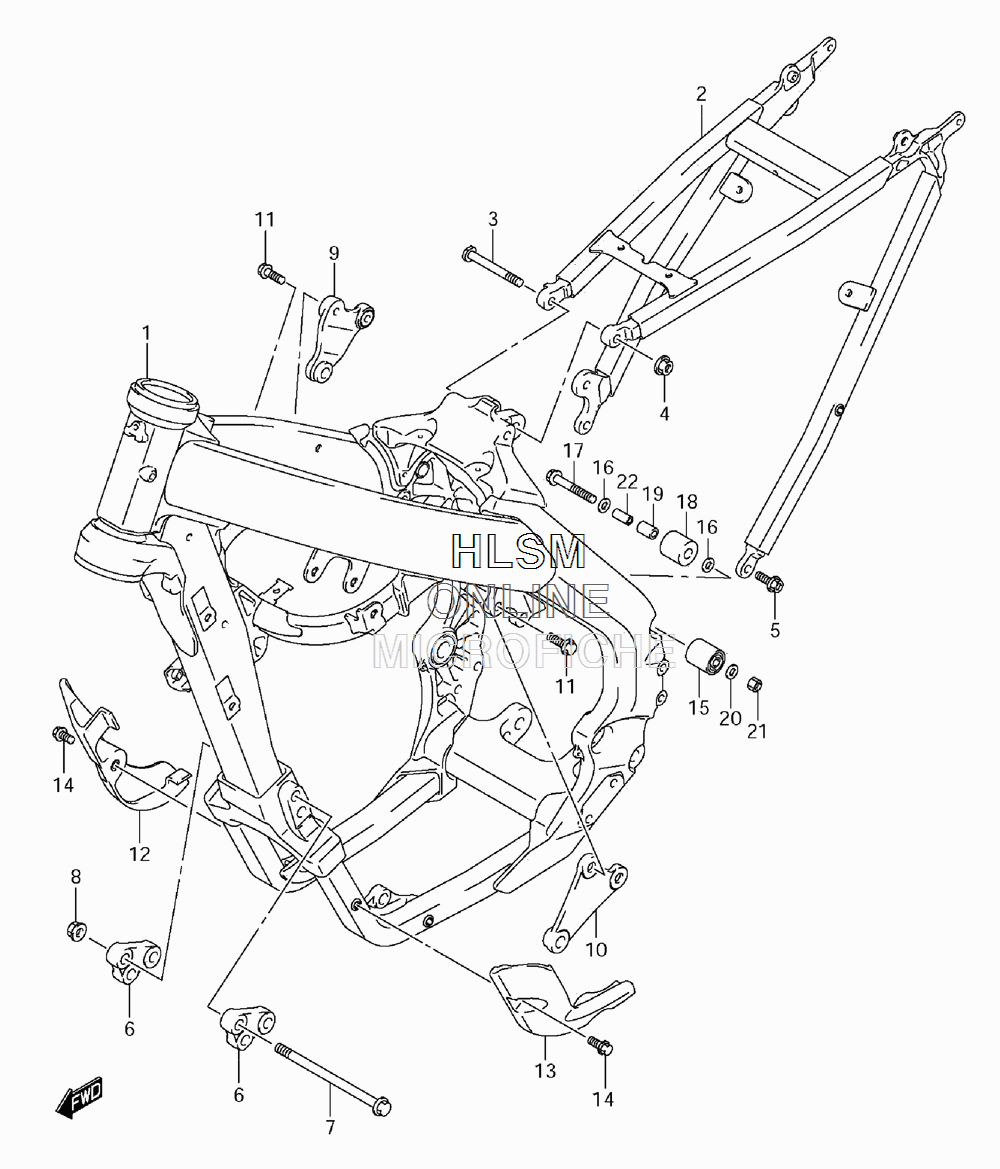

FRAME для Suzuki RM-Z450L1 - 2011 года выпуска
-
№АртикулНазвание
-
141100-28H20 FRAMEFRAME
-
241200-28H30 RAIL, SEATRAIL, SEAT
-
341311-28H20 BOLT, UPPERBOLT, UPPER
-
409159-08146 NUTNUT
-
509103-08506 BOLT (8X23)BOLT (8X23)
-
641991-28H10 BRACKET, ENGINE MOUNT FRONTBRACKET, ENGINE MOUNT FRONT
-
709103-10403 BOLT (10X135)BOLT (10X135)
-
809159-10122 NUTNUT
-
941993-28H00 BRACKET, ENGINE MOUNT UPPER RIGHT HANDBRACKET, ENGINE MOUNT UPPER RIGHT HAND
-
1041994-28H00 BRACKET, ENGINE MOUNT UPPER LEFT HANDBRACKET, ENGINE MOUNT UPPER LEFT HAND
-
1109103-08404 BOLT (8X21)BOLT (8X21)
-
1242520-28H01 PROTECTOR, FRONT RIGHT HANDPROTECTOR, FRONT RIGHT HAND
-
1342530-28H10 PROTECTOR, FRONT LEFT HANDPROTECTOR, FRONT LEFT HAND
-
1409116-06177 BOLT (6X25)BOLT (6X25)
-
1543910-35G00 ROLLER, CHAIN LOWERROLLER, CHAIN LOWER
-
1609160-08081 WASHER (8.5X23X1.5)WASHER (8.5X23X1.5)
-
1709103-08207 BOLT (8X45)BOLT (8X45)
-
1843911-28H00 ROLLER, CHAIN UPPERROLLER, CHAIN UPPER
-
1943912-28H00 COLLAR, CHAIN ROLLERCOLLAR, CHAIN ROLLER
-
2009181-08111 WASHER (8X12X1)WASHER (8X12X1)
-
2108319-2108A NUTNUT
-
2209180-08214 SPACER (8.6X12.2X25.5)SPACER (8.6X12.2X25.5)
