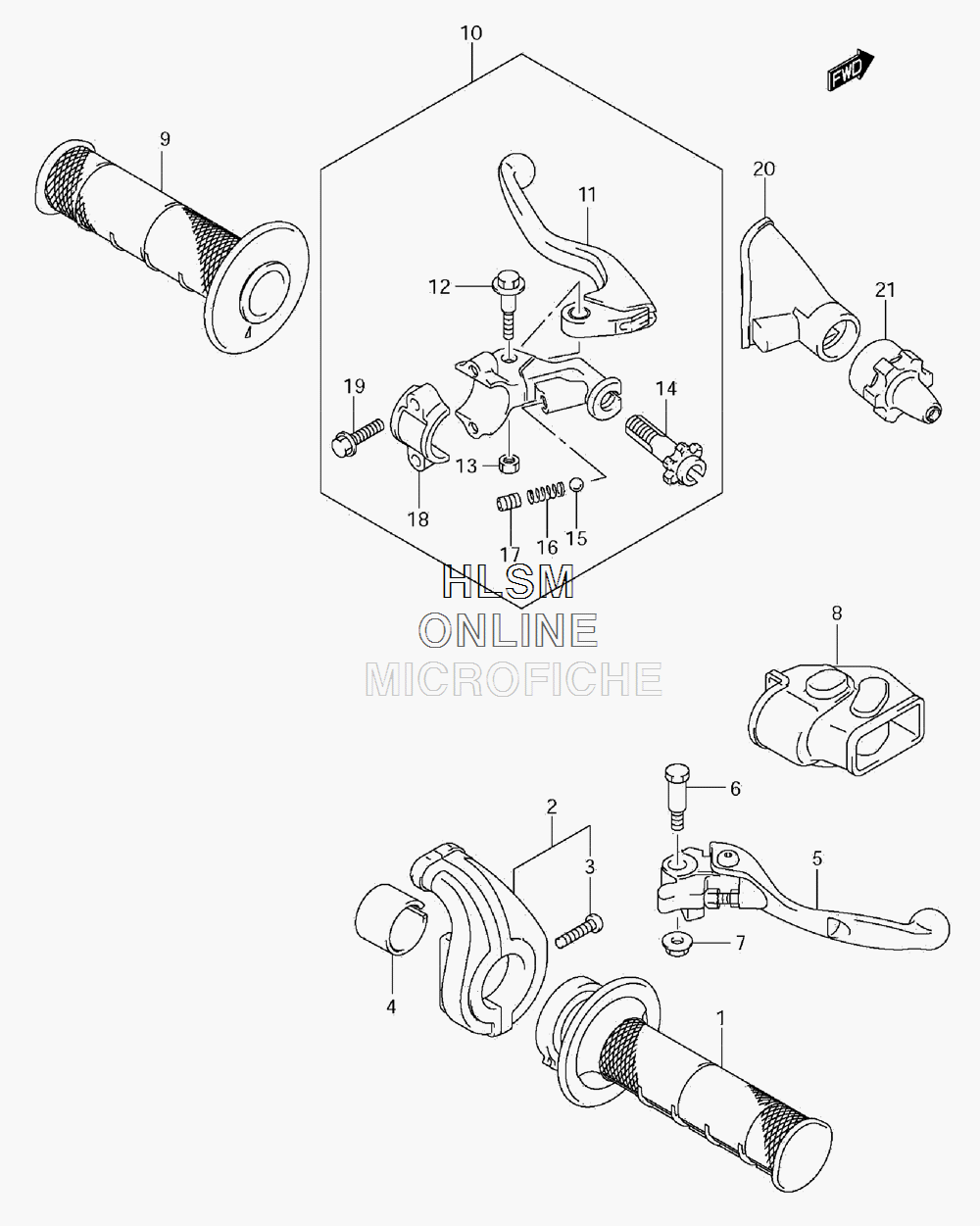

HANDLEBAR - LEVERS для Suzuki RM-Z450L1 - 2011 года выпуска
-
№АртикулНазвание
-
157110-28H00 GRIP, THROTTLEGRIP, THROTTLE
-
257100-10H00 CASE ASSY, THROTTLE (INC 3)CASE ASSY, THROTTLE (INC 3)
-
357151-35G00 COLLAR, CASECOLLAR, CASE
-
457129-35G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
557310-37F00 LEVER, BRAKELEVER, BRAKE
-
657431-14500 BOLT, PIVOTBOLT, PIVOT
-
708316-1006A NUTNUT
-
857343-35G00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
957211-28H00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1057500-28H00 LEVER ASSY, CLUTCH (INCL. 11-19)LEVER ASSY, CLUTCH (INCL. 11-19)
-
1157621-35G10 LEVER, CLUTCHLEVER, CLUTCH
-
1257431-35G00 BOLT, PIVOTBOLT, PIVOT
-
1308310-00057 NUTNUT
-
1457441-37F00 ADJUSTER, CABLEADJUSTER, CABLE
-
1506111-06003 BALLBALL
-
1609440-04003 SPRINGSPRING
-
1709134-06009 SCREW (6X8)SCREW (6X8)
-
1857512-28C00 BRACKET, HOLDERBRACKET, HOLDER
-
1957513-29F10 BOLT, BRACKETBOLT, BRACKET
-
2057341-28H00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2157342-37F00 COVER, CLUTCH ADJUSTERCOVER, CLUTCH ADJUSTER
