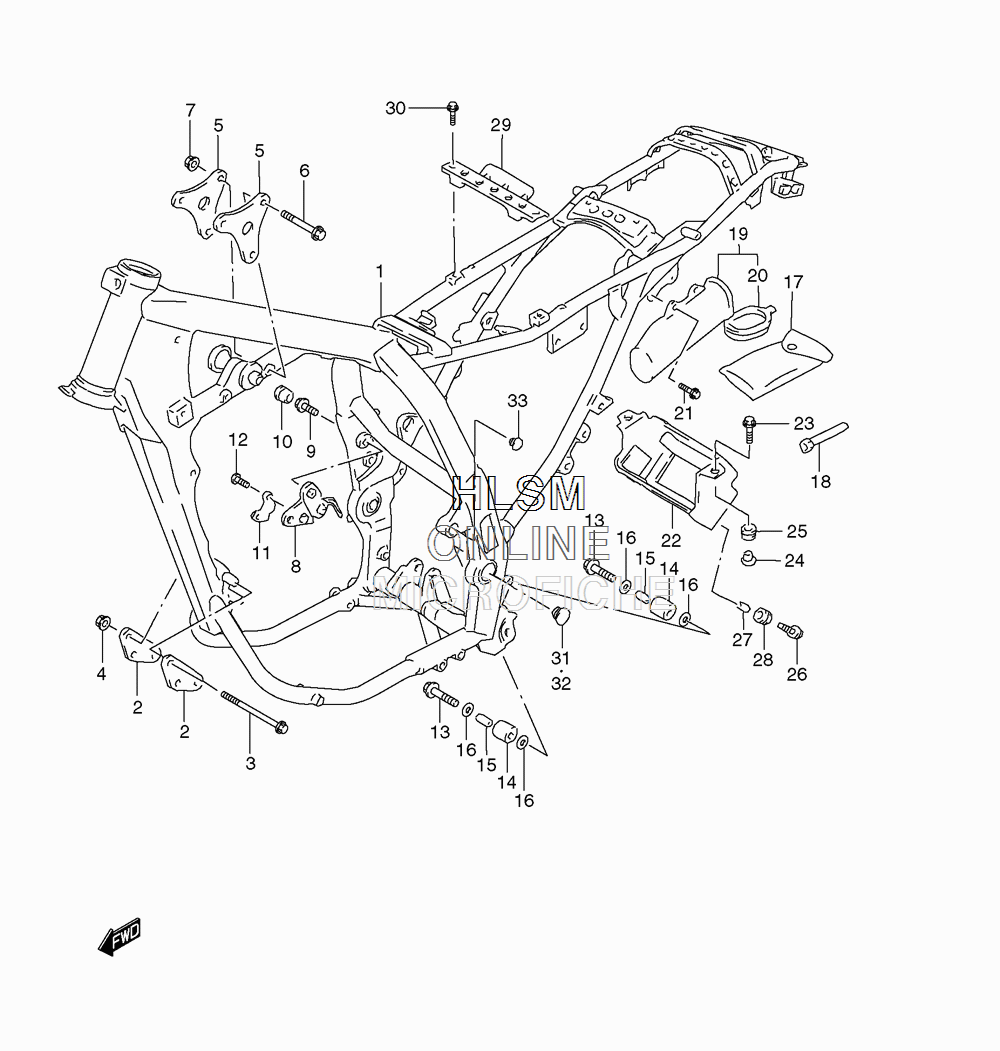

FRAME (CANADA ONLY) для Suzuki DR650SE - 2012 года выпуска
-
№АртикулНазвание
-
141100-32E40-YPT FRAME (GRAY)FRAME (GRAY)
-
241911-32E00 PLATE, ENG MTG, FRONTPLATE, ENG MTG, FRONT
-
309103-08139 BOLT (8X100)BOLT (8X100)
-
408319-3108A NUTNUT
-
541991-32E00 PLATE, ENG MTG, UPPERPLATE, ENG MTG, UPPER
-
609103-08339 BOLT (8X55)BOLT (8X55)
-
708319-3108A NUTNUT
-
841930-32E00-019 PLATE, REAR RH (BLACK)PLATE, REAR RH (BLACK)
-
901550-0820B BOLTBOLT
-
1009250-20012 PLUGPLUG
-
1143251-32E00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1202162-0616B SCREWSCREW
-
1309103-08178 BOLT (8X38)BOLT (8X38)
-
1443911-13E00 ROLLER, CHAINROLLER, CHAIN
-
1509180-08119 SPACER (8.6X12X25.5)SPACER (8.6X12X25.5)
-
1608211-08201 WASHERWASHER
-
1709800-21034 TOOL ASSYTOOL ASSY
-
1809816-00100 BOX SPANNER 16BOX SPANNER 16
-
1941550-32E00 HOLDER, TOOLHOLDER, TOOL
-
2041552-37210 ...CAP...CAP
-
2109116-06006 BOLT (6X16)BOLT (6X16)
-
2241540-32E00 HOLDER, BATTERYHOLDER, BATTERY
-
2309116-06167 BOLT (6X20)BOLT (6X20)
-
2409169-06065 WASHERWASHER
-
2509320-08021 CUSHIONCUSHION
-
2609116-06213 BOLT (6X16)BOLT (6X16)
-
2709180-06038 SPACER (6.1X9X7.5)SPACER (6.1X9X7.5)
-
2809320-08021 CUSHIONCUSHION
-
2941561-32E00 PLATE, FITTINGPLATE, FITTING
-
3001550-0610B BOLTBOLT
-
3143585-32E00 PLUG, FRAME PIVOT RIGHTPLUG, FRAME PIVOT RIGHT
-
3243595-32E00 PLUG, FRAME PIVOT LEFTPLUG, FRAME PIVOT LEFT
-
3343586-32E00 PLUG, FRAME BOSSPLUG, FRAME BOSS
