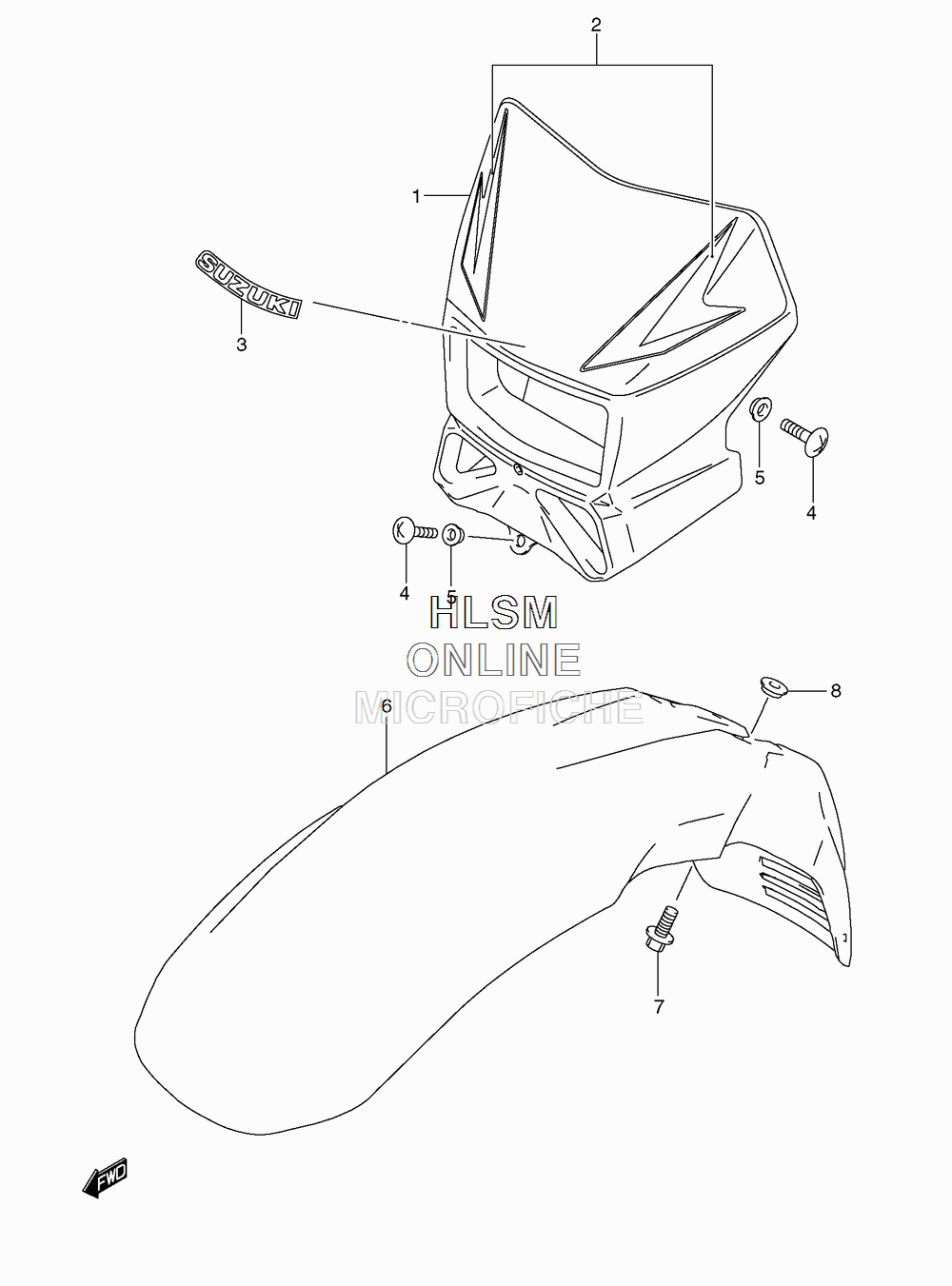

HEADLAMP HOUSING для Suzuki DR650SE - 2012 года выпуска
-
№АртикулНазвание
-
1-151811-29F50-30H COVER, HEAD LAMP (WHITE)COVER, HEAD LAMP (WHITE)
-
1-251811-29F50-YUD COVER, HEAD LAMP (GRAY)COVER, HEAD LAMP (GRAY)
-
2-168720-32E00-HLW TAPE SET (FOR 30H WHITE)TAPE SET (FOR 30H WHITE)
-
2-268720-32E00-JKA TAPE SET (FOR YUD GRAY)TAPE SET (FOR YUD GRAY)
-
3-168281-01H00-YD8 EMBLEM, "SUZUKI" (SILVER)EMBLEM, "SUZUKI" (SILVER)
-
3-268281-01H00-019 EMBLEM, "SUZUKI" (BLACK)EMBLEM, "SUZUKI" (BLACK)
-
402142-0612A SCREWSCREW
-
509169-06071 WASHERWASHER
-
6-153111-13E00-30H FENDER, FRONT (WHITE)FENDER, FRONT (WHITE)
-
6-253111-13E00-YUD FENDER, FRONT (GRAY)FENDER, FRONT (GRAY)
-
709116-06170 BOLT (6X16)BOLT (6X16)
-
809169-06073 WASHERWASHER
