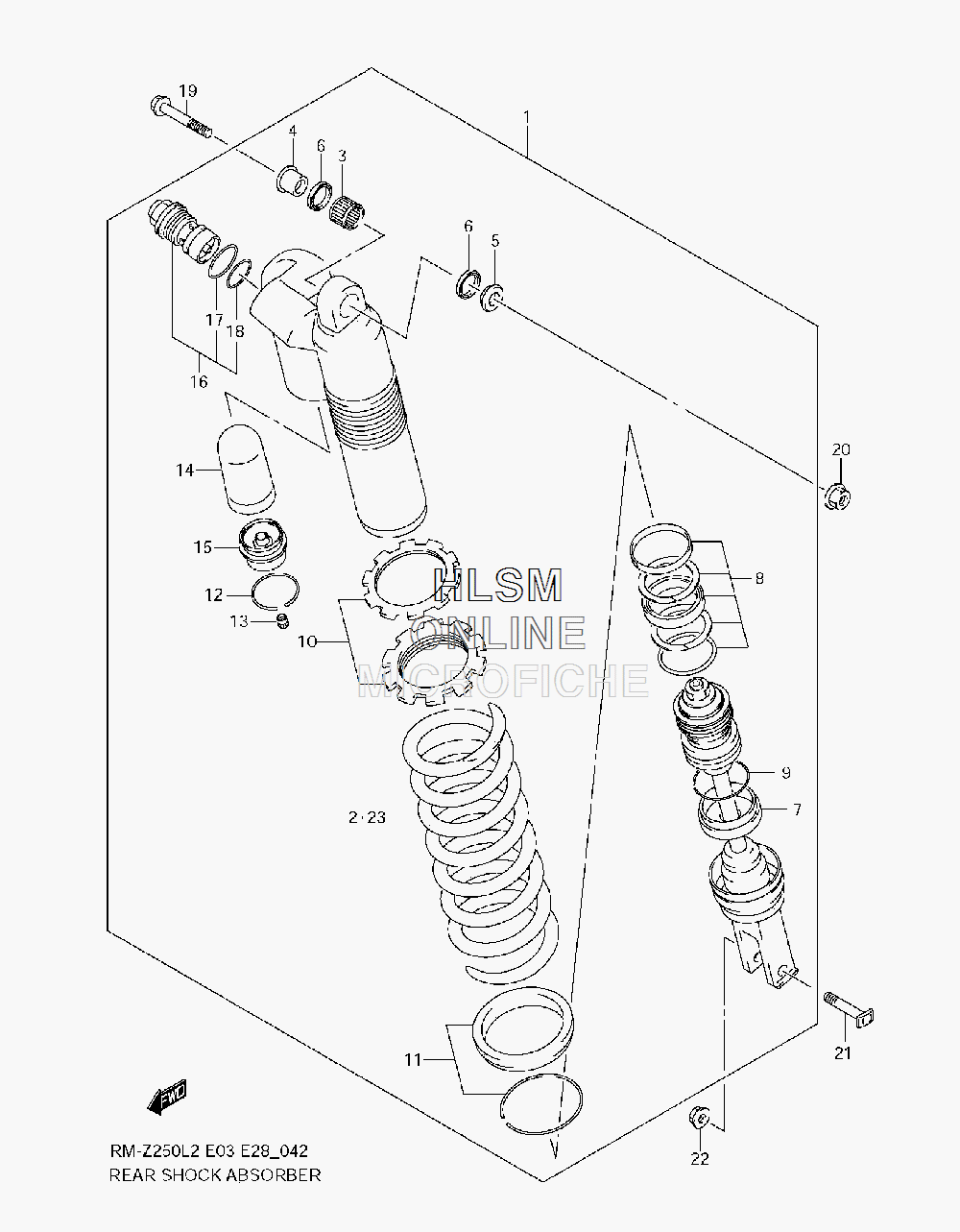

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250L2 - 2012 года выпуска
-
№АртикулНазвание
-
162100-49H50-YKS ABSORBER ASSY, RR SHOCK (YKS - RED) (INCL. 2-18)ABSORBER ASSY, RR SHOCK (YKS - RED) (INCL. 2-18)
-
262211-35G30 SPRING (K=5.7)SPRING (K=5.7)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, UPPER BEARING RIGHT HANDSPACER, UPPER BEARING RIGHT HAND
-
562685-36F00 SPACER, UPPER BEARING LEFT HANDSPACER, UPPER BEARING LEFT HAND
-
609284-16005 OIL SEAL (16X22X2.5)OIL SEAL (16X22X2.5)
-
762120-49H30 ROD, PISTONROD, PISTON
-
862150-28H60 O RING SETO RING SET
-
962279-36E80 RING, STOPPERRING, STOPPER
-
1062190-36F00 ADJUSTER SETADJUSTER SET
-
1162220-36F00 SPRING SEAT SETSPRING SEAT SET
-
1262278-36E00 RING, STOPPERRING, STOPPER
-
1352194-46686 CAPCAP
-
1462273-36E00 BLADDERBLADDER
-
1562275-28H30 CAP, CHAMBERCAP, CHAMBER
-
1662130-28H60 BOLT, PLUG (INCL. 17, 18)BOLT, PLUG (INCL. 17, 18)
-
1762131-28E00 O RINGO RING
-
1851174-36EB0 O RINGO RING
-
1962311-28H00 BOLTBOLT
-
2009159-10122 NUTNUT
-
2162221-37F30 BOLTBOLT
-
2209159-10067 NUTNUT
-
2362211-37FK0 SPRING (SOFT K=5.3) (OPT)SPRING (SOFT K=5.3) (OPT)
-
2362211-37FL0 SPRING (HARD K=5.5) (OPT)SPRING (HARD K=5.5) (OPT)
-
2362211-35G40 SPRING (HARD K=5.9) (OPT)SPRING (HARD K=5.9) (OPT)
