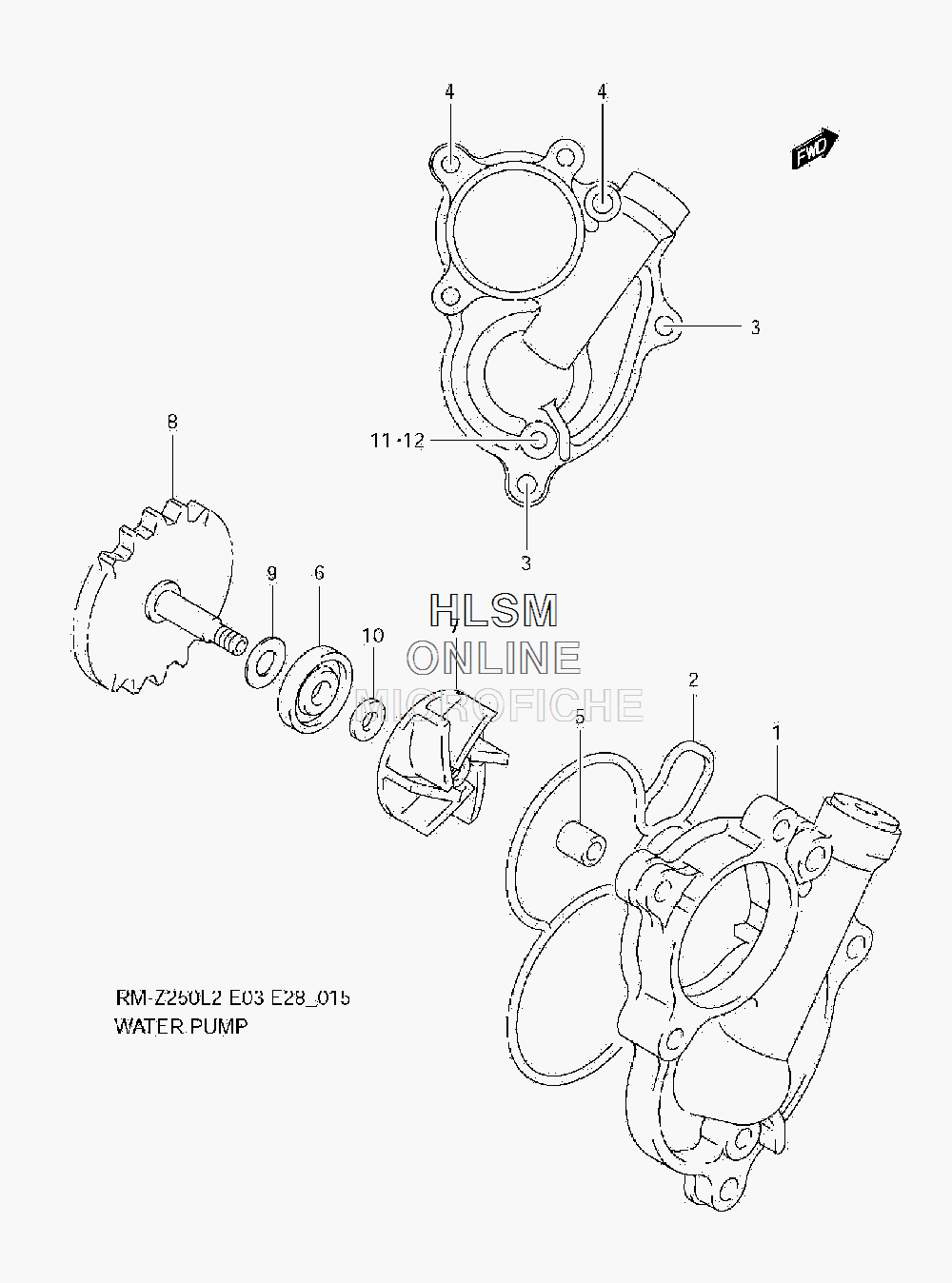

WATER PUMP для Suzuki RM-Z250L2 - 2012 года выпуска
-
№АртикулНазвание
-
117410-10H00 CASE, WATER PUMP AND OIL FILTERCASE, WATER PUMP AND OIL FILTER
-
217431-10H00 O RING, WATER PUMP CASEO RING, WATER PUMP CASE
-
301547-0660A BOLT (6X60)BOLT (6X60)
-
401547-0665A BOLT (6X65)BOLT (6X65)
-
504211-09109 PINPIN
-
617461-37F00 SEAL, WATER PUMP OILSEAL, WATER PUMP OIL
-
717491-10H00 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
817510-10H02 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
909181-08186 SHIM (8X18X0.5)SHIM (8X18X0.5)
-
1009181-06003 SHIM (6X14X1)SHIM (6X14X1)
-
1107120-0610A BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
