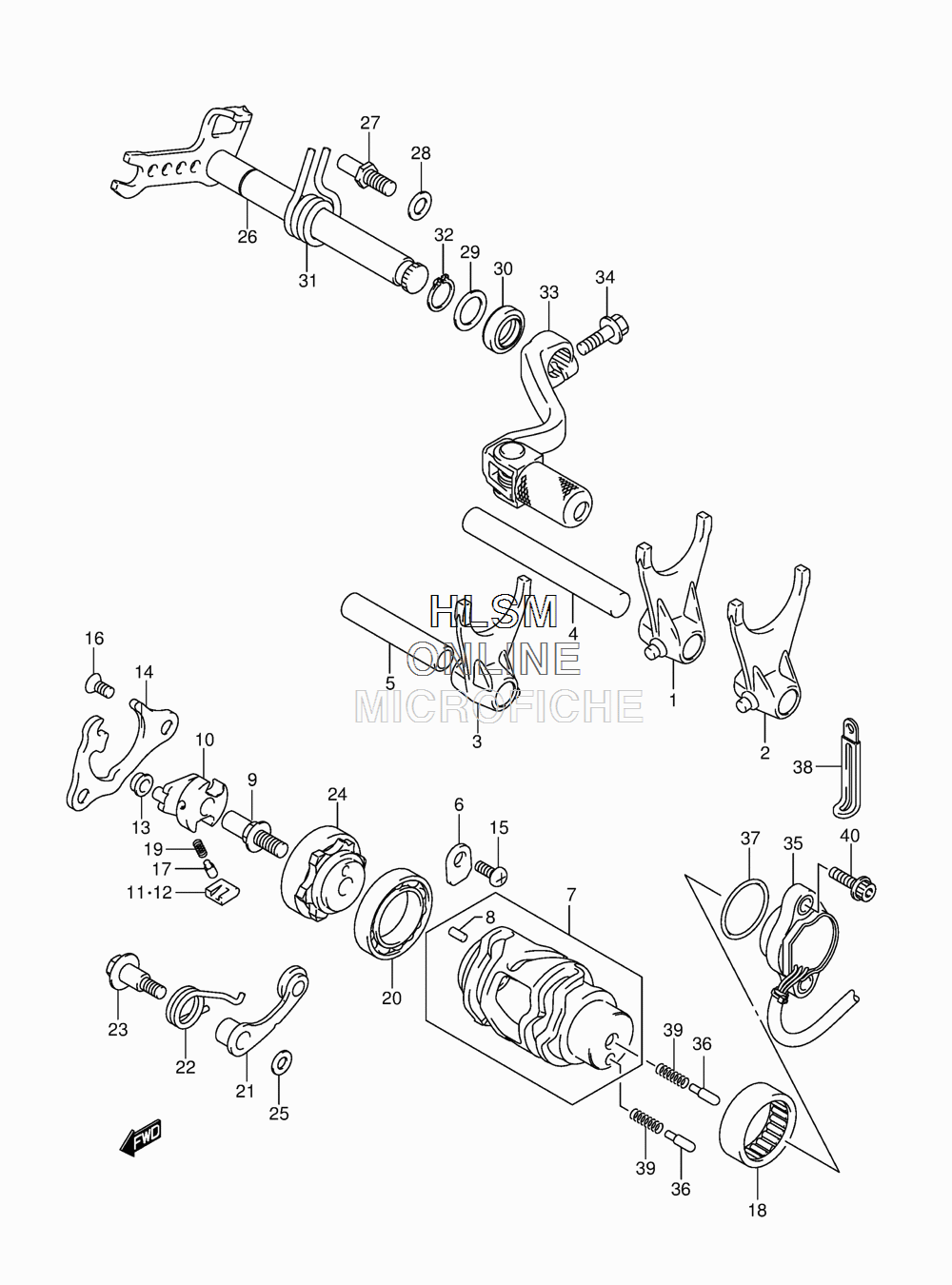

GEAR SHIFTING для Suzuki RM-Z450L4 - 2014 года выпуска
-
№АртикулНазвание
-
125211-28H00 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-28H00 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-28H00 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-28H00 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
525421-27C01 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
624741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
725310-28H10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 PIN 4X8PIN 4X8
-
925313-37F00 PIN, SHIFT CAM DRIVEN GEARPIN, SHIFT CAM DRIVEN GEAR
-
1025322-28H00 SHIFTER, GEAR SHIFT CAMSHIFTER, GEAR SHIFT CAM
-
1125323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
1225324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1325325-28H00 ROLLER, GEAR SHIFT CAM SHIFTERROLLER, GEAR SHIFT CAM SHIFTER
-
1425331-28H00 LIFTER, GEAR SHIFT PAWLLIFTER, GEAR SHIFT PAWL
-
1509125-06122 SCREW (6X12)SCREW (6X12)
-
1609126-06011 SCREW (6X12)SCREW (6X12)
-
1709209-05023 PINPIN
-
1809263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
1909440-04003 K S PAWL SPRINGK S PAWL SPRING
-
2008140-68050 BEARINGBEARING
-
2125350-28H00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2225355-28H10 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
2325357-28H00 BOLT, SHIFT CAM STOPPERBOLT, SHIFT CAM STOPPER
-
2425381-49H00 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
2508211-06121 WASHERWASHER
-
2625510-28H01 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2725671-10H00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2809181-08139 SHIM (8.8X14X1)SHIM (8.8X14X1)
-
2909181-14139 SHIM (14X20X1)SHIM (14X20X1)
-
3009283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
3109444-20011 SPRINGSPRING
-
3208331-3114A CIRCLIPCIRCLIP
-
3325600-28H01 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3401547-0620A BOLTBOLT
-
3537730-49H00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3609209-05011 K S PAWL ROLLER (5X15.5)K S PAWL ROLLER (5X15.5)
-
3709280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
3809404-06429 CLAMP (L:45)CLAMP (L:45)
-
3909440-04010 K S PAWL SPRINGK S PAWL SPRING
-
4007120-0516A BOLTBOLT
