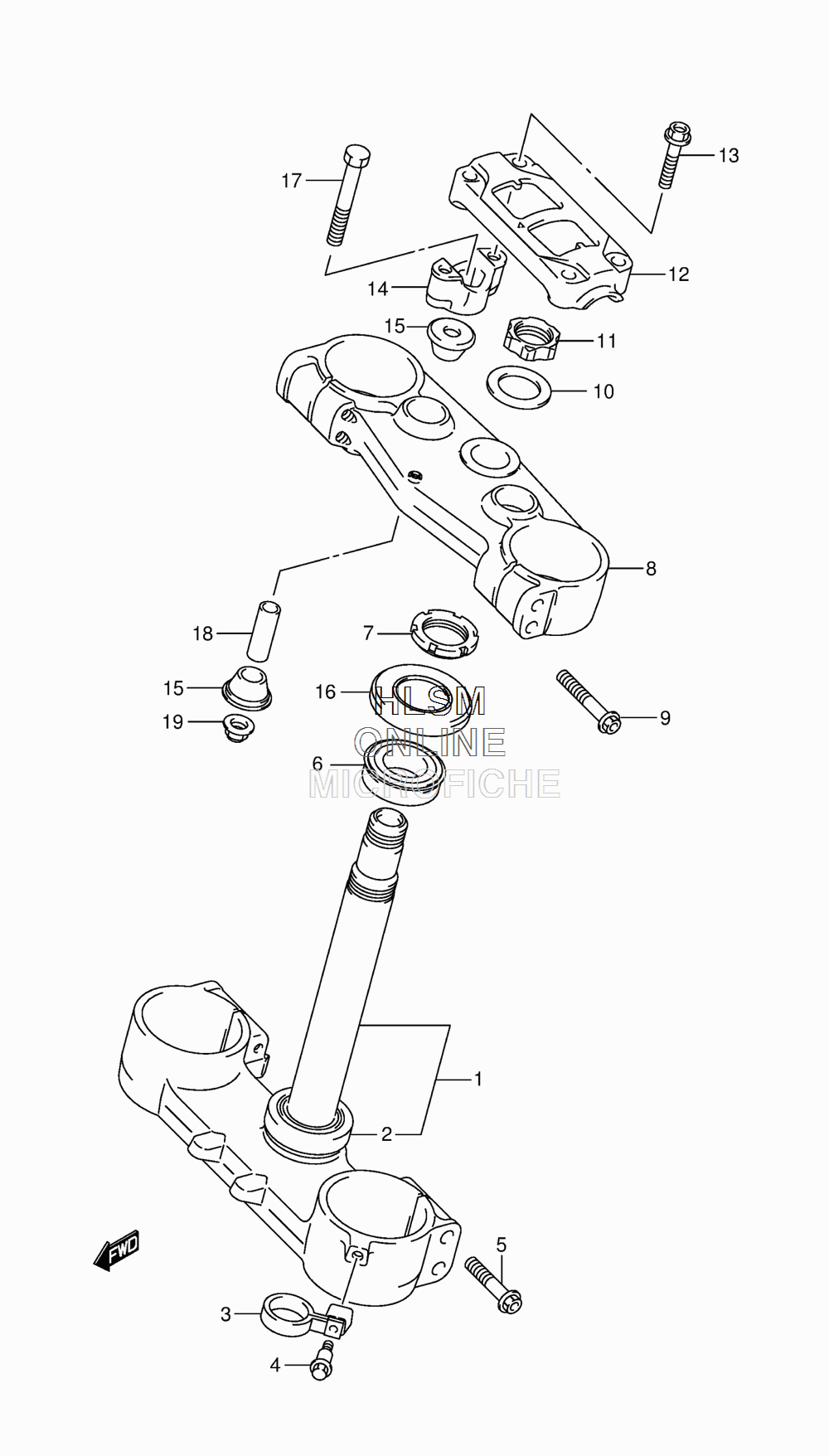

STEERING STEM для Suzuki RM-Z450L4 - 2014 года выпуска
-
№АртикулНазвание
-
151410-28H30 STEM, STEERINGSTEM, STEERING
-
209265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
358621-37F80 GUIDE, FRONT BRAKE HOSEGUIDE, FRONT BRAKE HOSE
-
409111-06087 BOLT (6X20.5)BOLT (6X20.5)
-
551328-37F80 BOLTBOLT
-
609265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
751631-28H00 NUT, STEERINGNUT, STEERING
-
851311-28H20 HEAD, STEERING STEMHEAD, STEERING STEM
-
951328-37F80 BOLTBOLT
-
1051356-29E00 WASHER, STEM HEADWASHER, STEM HEAD
-
1151353-37F70 NUT, STEM HEADNUT, STEM HEAD
-
1256211-10H10 HOLDER, HANDLEHOLDER, HANDLE
-
1351321-37F90 BOLTBOLT
-
1456221-28H01 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1556241-10H11 CUSHION, RUBBERCUSHION, RUBBER
-
1651643-28H10 COVER, STEERING UPPERCOVER, STEERING UPPER
-
1756321-28H00 BOLTBOLT
-
1856243-10H11 SPACERSPACER
-
1908319-31108 NUTNUT
