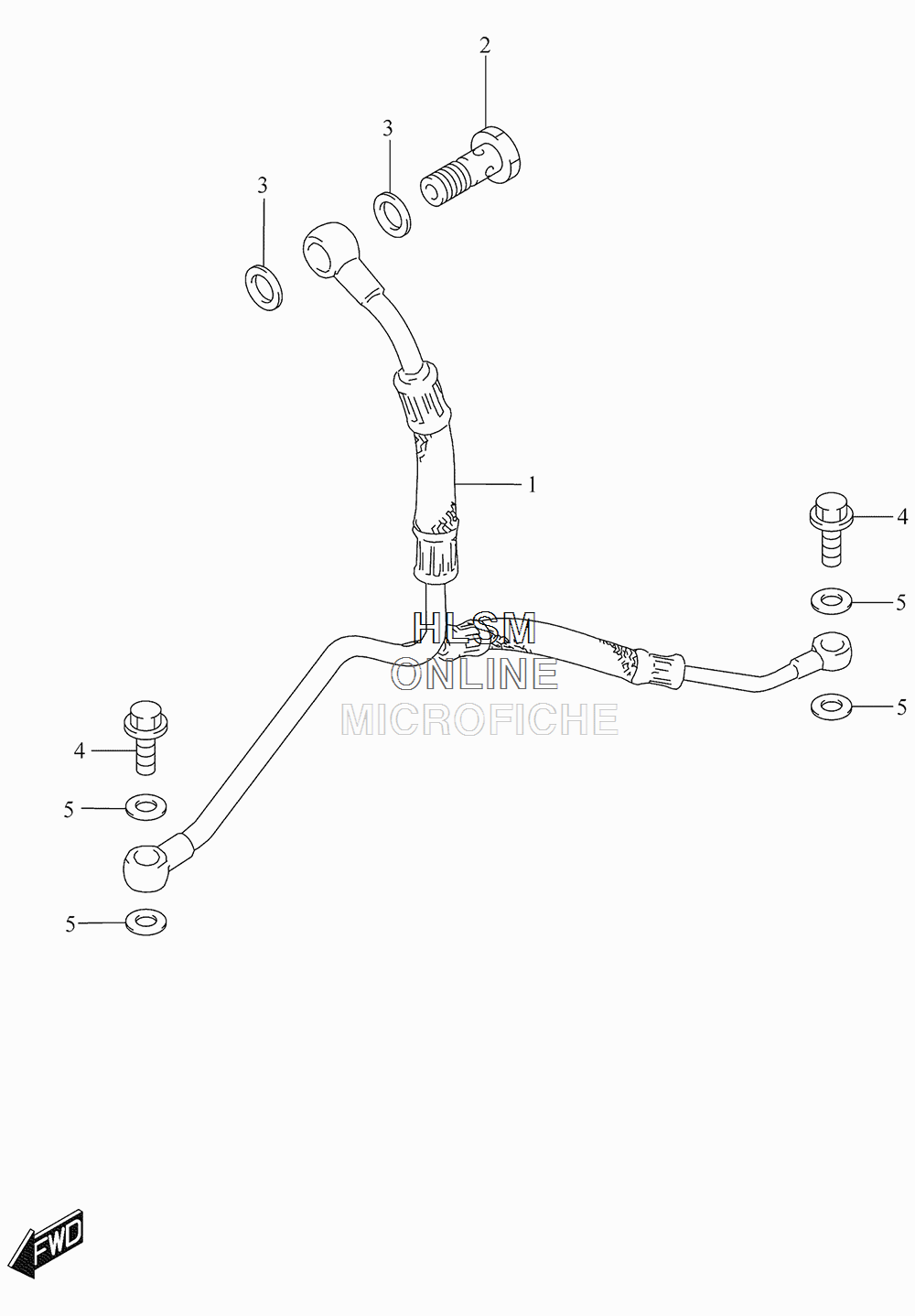

OIL PIPES для Suzuki DR650SE - 2015 года выпуска
-
№АртикулНазвание
-
116480-32E10 PIPE, T/M AND SHAFT OILPIPE, T/M AND SHAFT OIL
-
209360-12008 UNIONUNION
-
309168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
409360-10066 UNIONUNION
-
509168-10007 GASKET (10.1X16X1)GASKET (10.1X16X1)
