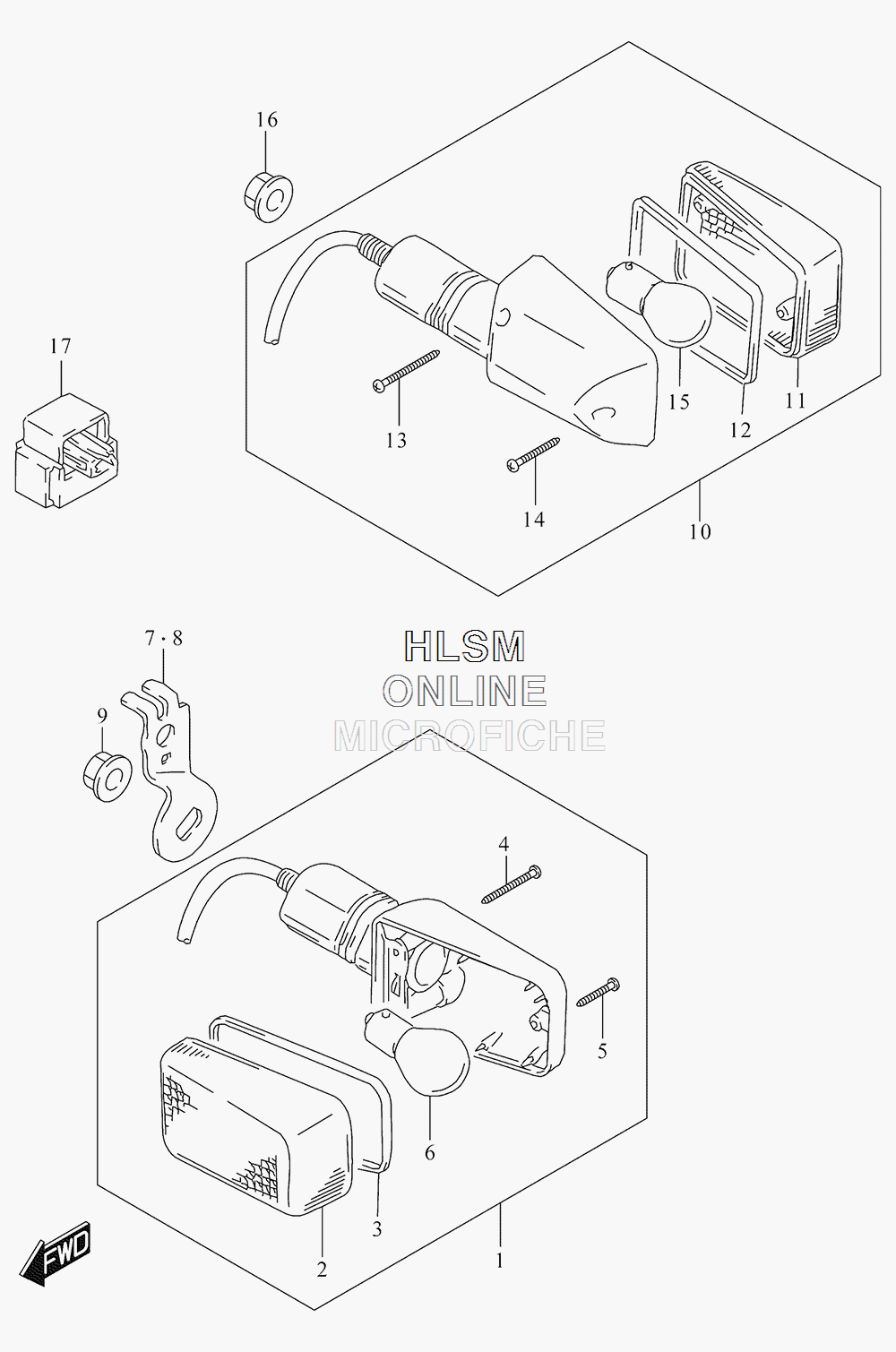

TURN SIGNAL ASSY. для Suzuki DR650SE - 2015 года выпуска
-
№АртикулНазвание
-
135601-29E30 LAMP ASSY, FRONT TURNSIGNALLAMP ASSY, FRONT TURNSIGNAL
-
235612-17C20 LENSLENS
-
335613-27A00 GASKETGASKET
-
435623-27A00 TAPPING SCREW, 3X30TAPPING SCREW, 3X30
-
535725-40511 TAPPING SCREW, 3X20TAPPING SCREW, 3X20
-
609471-12045 BULB (12V,21W)BULB (12V,21W)
-
735671-32E00 BRACKET, FRONT RIGHT HANDBRACKET, FRONT RIGHT HAND
-
835681-32E00 BRACKET, FRONT LEFT HANDBRACKET, FRONT LEFT HAND
-
908316-1010A NUTNUT
-
1035603-29E90 LAMP ASSY, REAR TURNSIGNALLAMP ASSY, REAR TURNSIGNAL
-
1135652-17C20 LENSLENS
-
1235613-27A00 GASKETGASKET
-
1335623-27A00 TAPPING SCREW, 3X30TAPPING SCREW, 3X30
-
1435725-40511 TAPPING SCREW, 3X20TAPPING SCREW, 3X20
-
1509471-12045 BULB (12V,21W)BULB (12V,21W)
-
1608316-1010A NUTNUT
-
1738610-26E00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
