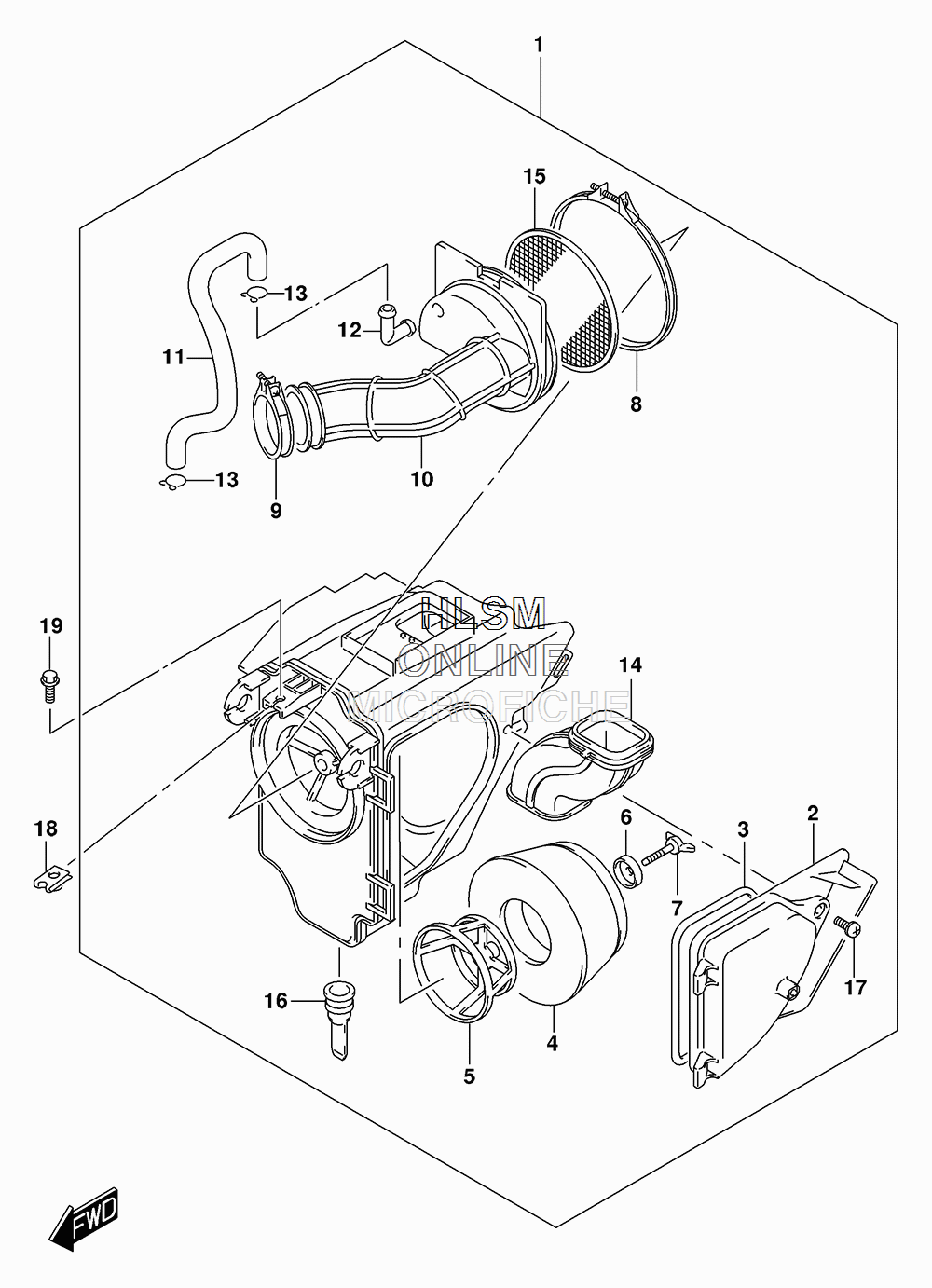

AIR CLEANER для Suzuki DR-Z125L - 2016 года выпуска
-
№АртикулНазвание
-
113700-08G01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-08G01 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
313746-08G00 ...GASKET...GASKET
-
413780-08G00 ...FILTER...FILTER
-
513791-08G00 ...HOLDER, FILTER...HOLDER, FILTER
-
613792-13A01 ...WASHER, FILTER...WASHER, FILTER
-
713831-31G00 ...BOLT, WING...BOLT, WING
-
813826-14D01 ...CLAMP (CLEANER SIDE)...CLAMP (CLEANER SIDE)
-
909402-48208 ...CLAMP...CLAMP
-
1013881-08G00 ...TUBE, OUTLET...TUBE, OUTLET
-
1113853-08G00 ...TUBE, BREATHER...TUBE, BREATHER
-
1213858-14D20 ...JOINT...JOINT
-
1309401-14301 ...CLIP...CLIP
-
1413891-08G00 ...TUBE, INLET...TUBE, INLET
-
1513810-03G00 ...TRAP, FLAME...TRAP, FLAME
-
1613681-19B00 ...TUBE, DRAIN...TUBE, DRAIN
-
1702142-0516B ...SCREW...SCREW
-
1809148-06021 NUTNUT
-
1901547-0612A BOLT, AIR CLEANERBOLT, AIR CLEANER
