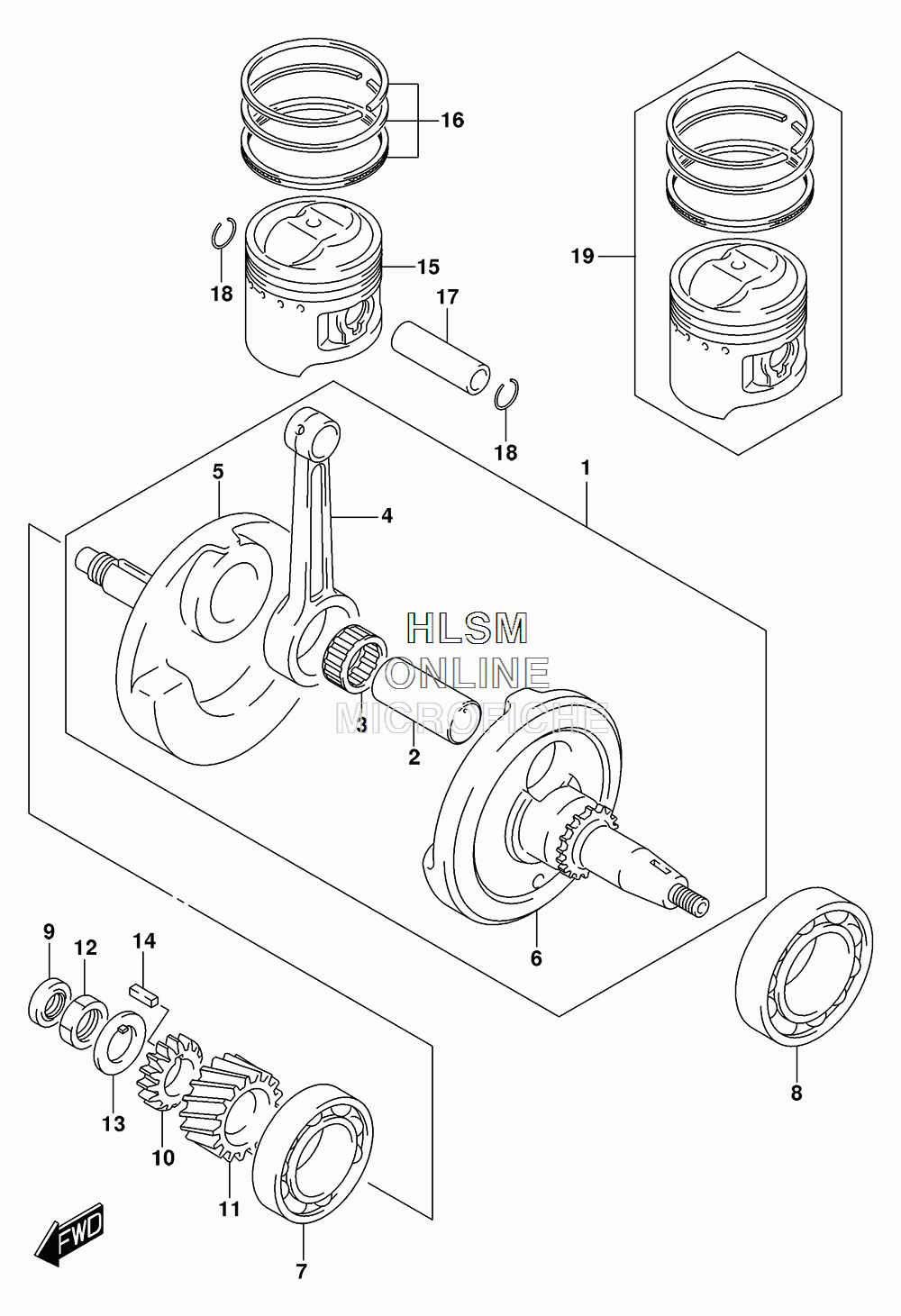

CRANKSHAFT W/ PISTON для Suzuki DR-Z125L - 2016 года выпуска
-
№АртикулНазвание
-
112200-05240 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212211-05231 ...PIN, CRANK...PIN, CRANK
-
309263-28027-0B0 ...BEARING (28X36X15.8)...BEARING (28X36X15.8)
-
412161-05221-0B0 ...CONNROD...CONNROD
-
512221-05210 ...CRANKSHAFT RH...CRANKSHAFT RH
-
612261-05210 ...CRANKSHAFT LH...CRANKSHAFT LH
-
709262-28014 BEARING (28X68X18)BEARING (28X68X18)
-
809262-35038 BEARING (35X72X17)BEARING (35X72X17)
-
909282-12009 OIL SEAL (12X21X7)OIL SEAL (12X21X7)
-
1016321-05201 GEAR, OIL PUMP DRIVE (NT:15)GEAR, OIL PUMP DRIVE (NT:15)
-
1121111-05200-0C0 GEAR, PRIMARY DRIVE (NT:17)GEAR, PRIMARY DRIVE (NT:17)
-
1209140-16019 NUTNUT
-
1309166-16012 WASHERWASHER
-
1409421-04004 KEYKEY
-
1512111-05202-0F0 PISTONPISTON
-
1612140-01410 RING SET, PISTONRING SET, PISTON
-
1712151-05220-0A0 PIN, PISTONPIN, PISTON
-
1809381-14001 SNAP RINGSNAP RING
-
1912100-05200-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
