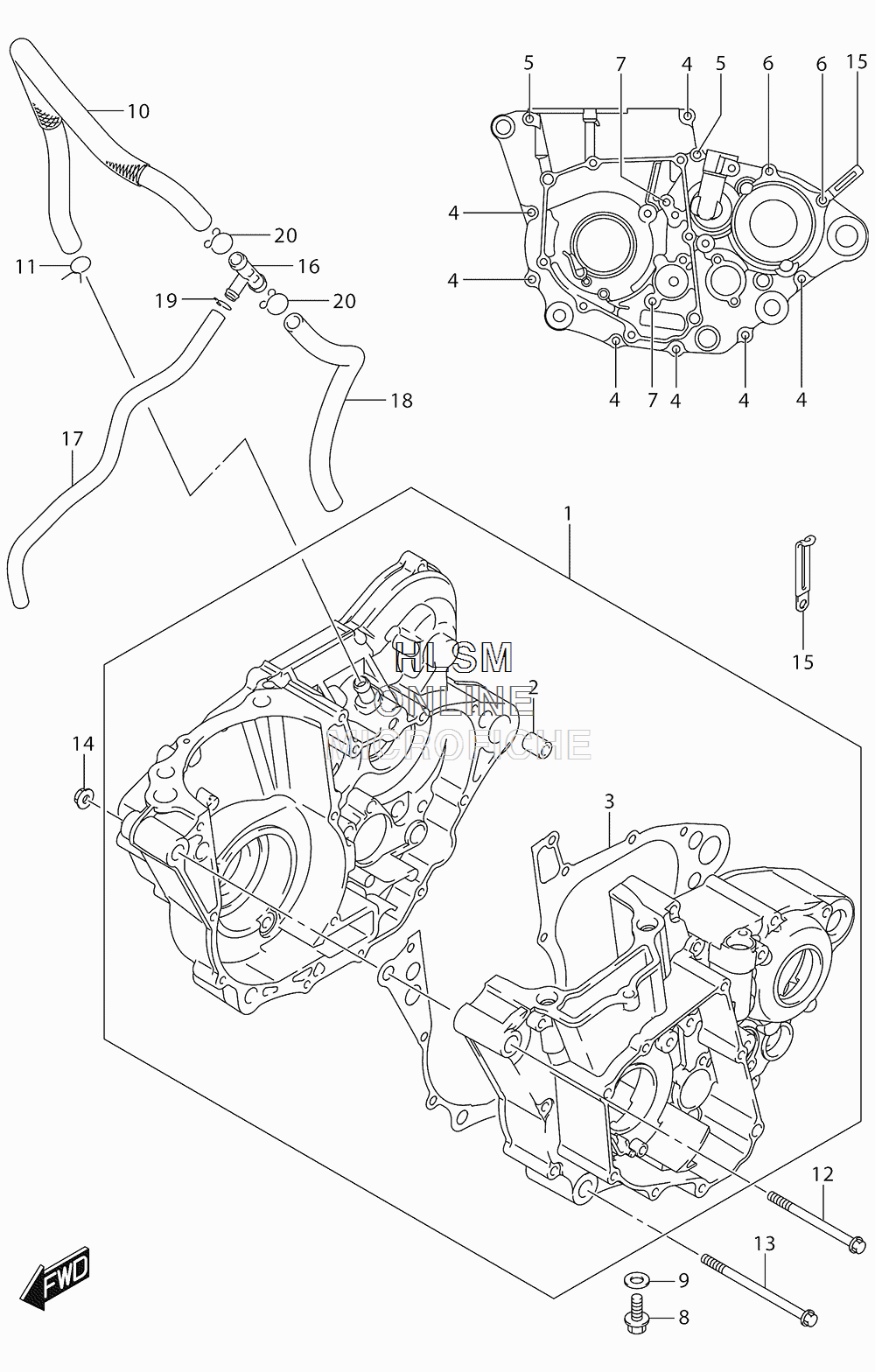

CRANKCASE для Suzuki RM-Z450 [RMZ450] - 2016 года выпуска
-
№АртикулНазвание
-
111301-28880 CRANKCASE SETCRANKCASE SET
-
209206-13020 ...PIN (10.4X13X18)...PIN (10.4X13X18)
-
311481-28H00 ...GASKET, CRANKCASE...GASKET, CRANKCASE
-
401547-0655A ...BOLT...BOLT
-
501547-0665A ...BOLT...BOLT
-
601547-0675A ...BOLT...BOLT
-
701547-0680A ...BOLT...BOLT
-
809103-08393 BOLT (8X20) (OIL DRAIN)BOLT (8X20) (OIL DRAIN)
-
909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1011332-49H20 HOSE, BREATHERHOSE, BREATHER
-
1109401-13301 CLIPCLIP
-
1209103-10403 BOLT (10X135)BOLT (10X135)
-
1309103-10446 BOLT (10X125)BOLT (10X125)
-
1409159-10122 NUTNUT
-
1509404-06429 CLAMP (L:45)CLAMP (L:45)
-
1611331-28H00 JOINT, BREATHER HOSEJOINT, BREATHER HOSE
-
1711334-49H00 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
1809352-90133-260 HOSE (L:260->210)HOSE (L:260->210)
-
1909401-10410 CLIPCLIP
-
2009401-13102 CLIPCLIP
