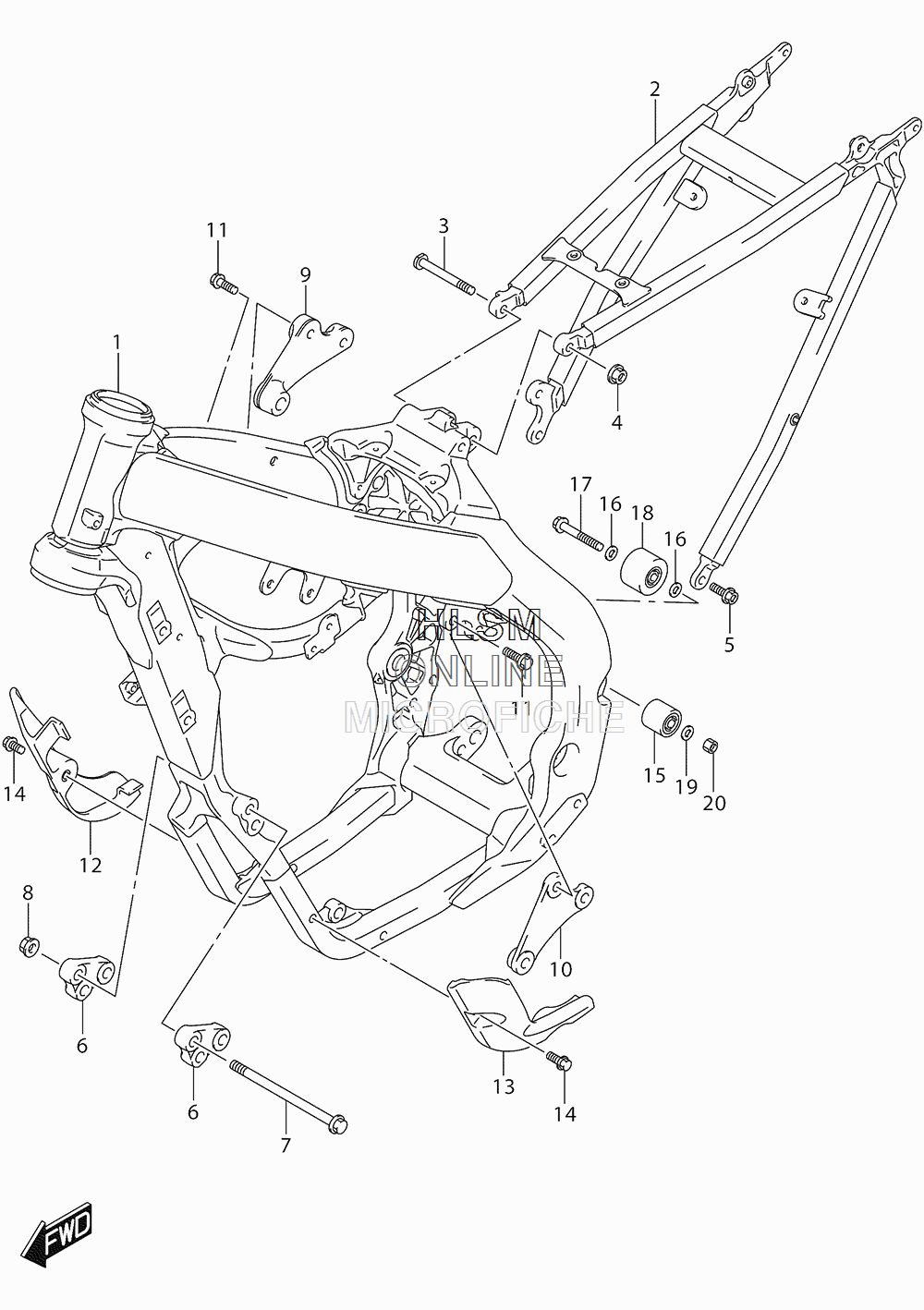

FRAME для Suzuki RM-Z450 [RMZ450] - 2016 года выпуска
-
№АртикулНазвание
-
141100-28H40 FRAMEFRAME
-
241200-28H40 RAIL, SEATRAIL, SEAT
-
341311-28H20 BOLT, SEAT RAIL UPPERBOLT, SEAT RAIL UPPER
-
409159-08146 NUTNUT
-
509103-08506 BOLT (8X23)BOLT (8X23)
-
641991-28H10 BRACKET, ENGINE MOUNT FRONTBRACKET, ENGINE MOUNT FRONT
-
709103-10403 BOLT (10X135)BOLT (10X135)
-
809159-10122 NUTNUT
-
941930-28H20 BRACKET, ENGINE MOUNT UPPER RHBRACKET, ENGINE MOUNT UPPER RH
-
1041940-28H30 BRACKET, ENGINE MOUNT UPPER LHBRACKET, ENGINE MOUNT UPPER LH
-
1109103-08404 BOLT (8X21)BOLT (8X21)
-
1242520-28H10 PROTECTOR, FRONT RHPROTECTOR, FRONT RH
-
1342530-28H20 PROTECTOR, FRONT LHPROTECTOR, FRONT LH
-
1409116-06177 BOLT (6X25)BOLT (6X25)
-
1543910-37F00 ROLLER, CHAINROLLER, CHAIN
-
1609181-08167 SHIM (8X16X1)SHIM (8X16X1)
-
1709103-08207 BOLT (8X45)BOLT (8X45)
-
1843910-37F00 ROLLER, CHAINROLLER, CHAIN
-
1909181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
2008319-2108A NUTNUT
