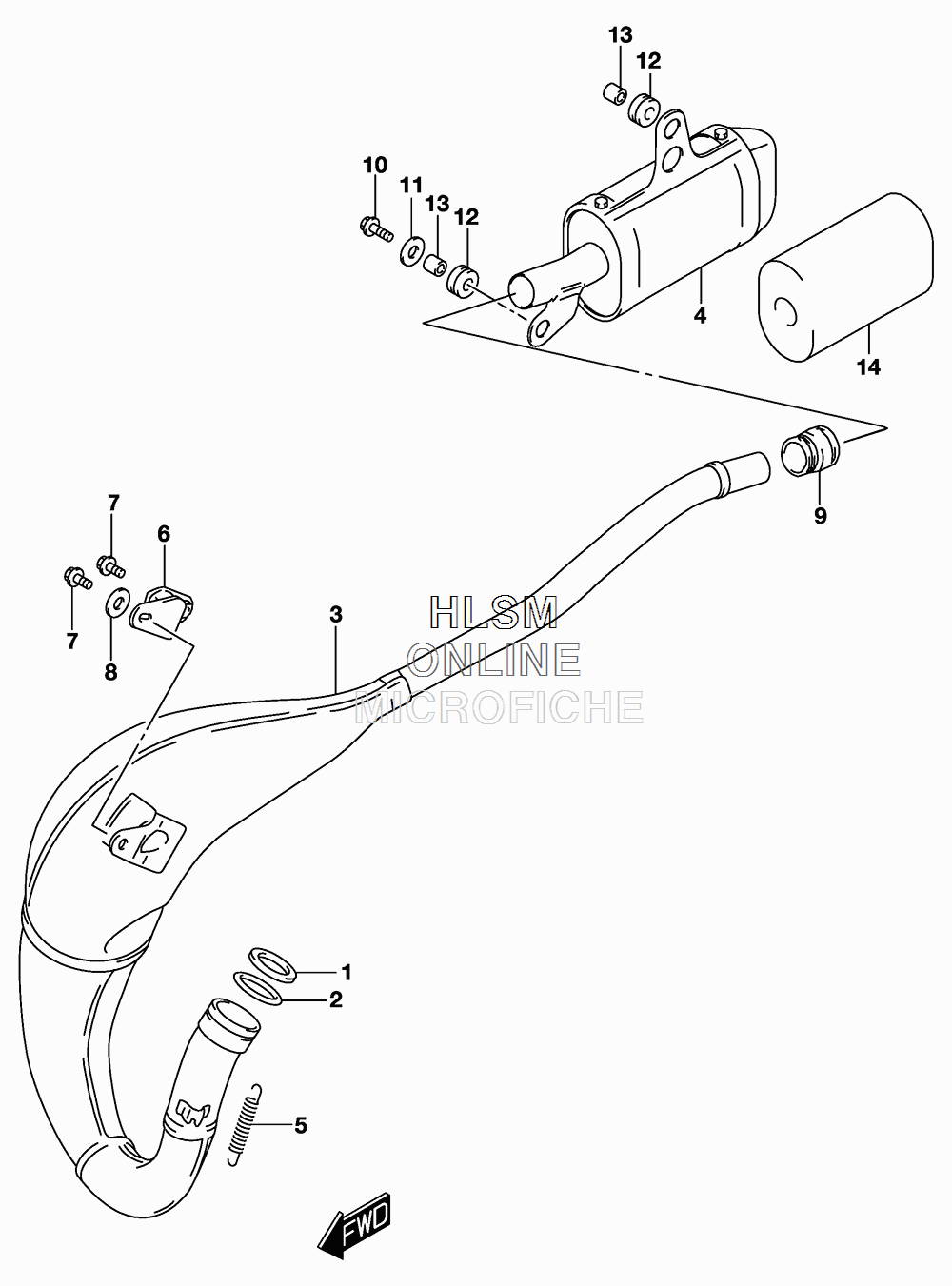

MUFFLER для Suzuki RM85 - 2016 года выпуска
-
№АртикулНазвание
-
114181-40C00 GASKET, EXHAUSTGASKET, EXHAUST
-
214171-03B00 O RING, EXHAUST FLANGEO RING, EXHAUST FLANGE
-
314310-03B01 BODY, MUFFLER 1STBODY, MUFFLER 1ST
-
414330-03B10 MUFFLER, 2NDMUFFLER, 2ND
-
509443-11027 SPRINGSPRING
-
614770-20401 DAMPER, MUFFLERDAMPER, MUFFLER
-
701547-0612A BOLT (6X12)BOLT (6X12)
-
809160-06079 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
914771-17300 CONNECTOR, 2ND MUFFLERCONNECTOR, 2ND MUFFLER
-
1001547-0620A BOLTBOLT
-
1109160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1209320-08021 CUSHIONCUSHION
-
1309180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
1414351-03B10 SILENCER, MUFFLER (OPT)SILENCER, MUFFLER (OPT)
