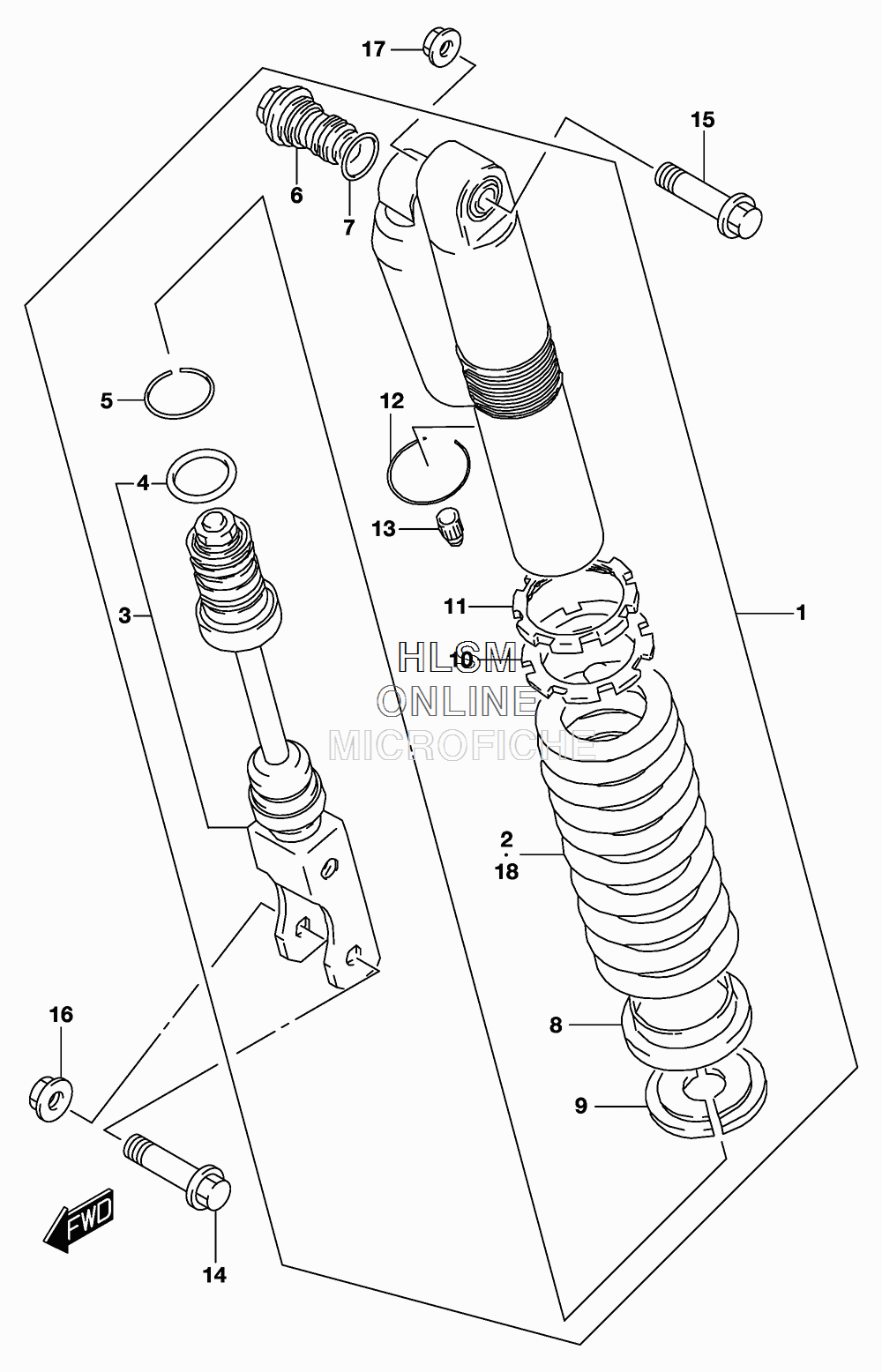

SUSPENSION - SHOCKS REAR для Suzuki RM85 - 2016 года выпуска
-
№АртикулНазвание
-
162100-03BH0-YKS ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
262211-03B90 ...SPRING, REAR (K=4.6)...SPRING, REAR (K=4.6)
-
362120-03BB0 ...ROD, PISTON...ROD, PISTON
-
462153-03BB0 ......O RING......O RING
-
562279-03BB0 ...RING, ROD STOPPER...RING, ROD STOPPER
-
662130-03B30 ...BOLT, PLUG...BOLT, PLUG
-
751177-36E20 ......O RING......O RING
-
862249-17C00 ...SEAT, SPRING...SEAT, SPRING
-
962225-17C00 ...SEAT STOPPER, SPRING...SEAT STOPPER, SPRING
-
1062191-19C00 ...ADJUSTER, SPRING...ADJUSTER, SPRING
-
1162194-03BB0 ...NUT, SPRING ADJUSTER...NUT, SPRING ADJUSTER
-
1262278-03B30 ...RING, STOPPER...RING, STOPPER
-
1351294-20400 ...CAP...CAP
-
1462221-37F30 BOLT, LOWERBOLT, LOWER
-
1562648-14500 BOLT, UPPERBOLT, UPPER
-
1609159-10067 NUT (LOWER)NUT (LOWER)
-
1709159-10115 NUT (UPPER)NUT (UPPER)
-
1862211-03B80 SPRING, REAR (SOFT K=4.4) (OPT)SPRING, REAR (SOFT K=4.4) (OPT)
-
1862211-03BA0 SPRING, REAR (HARD K=4.8) (OPT)SPRING, REAR (HARD K=4.8) (OPT)
