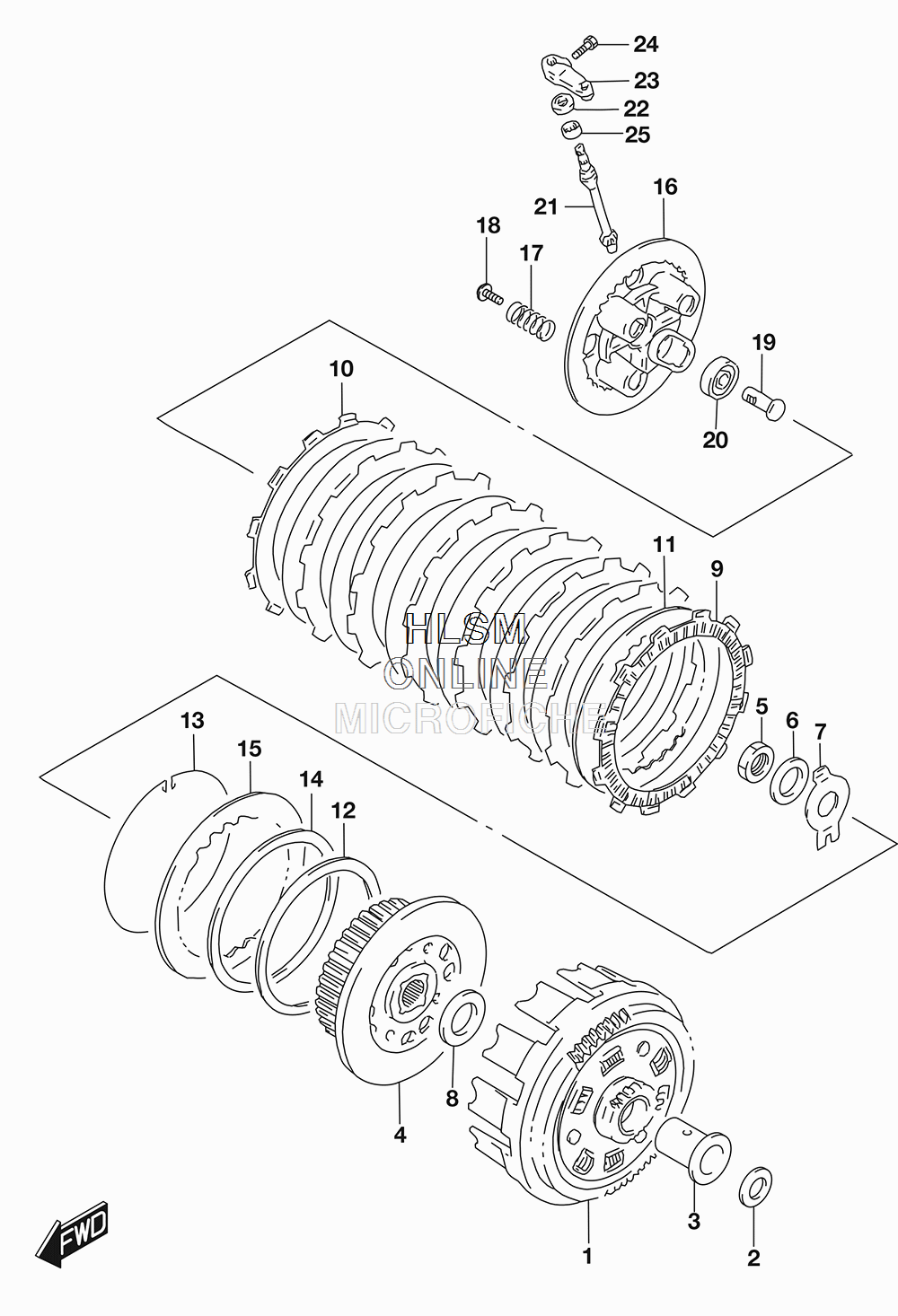

CLUTCH для Suzuki DR-650SEL7 - 2017 года выпуска
-
№АртикулНазвание
-
121200-44B21 GEAR, PRIMARY (NT:20/61)GEAR, PRIMARY (NT:20/61)
-
209160-22032 WASHER (22X32X3)WASHER (22X32X3)
-
321251-32E00 SPACERSPACER
-
421410-44B00 HUB, SLEEVEHUB, SLEEVE
-
509140-20001 NUTNUT
-
609164-20002 WASHERWASHER
-
709169-20005 WASHERWASHER
-
809160-22068 WASHER (22X44X2)WASHER (22X44X2)
-
921441-31D00 PLATE, DRIVE (T:3.0)PLATE, DRIVE (T:3.0)
-
1021441-44B01 PLATE, DRIVE (T:3.0)PLATE, DRIVE (T:3.0)
-
1121451-44B00 PLATE, DRIVEN, NO.1 (T:1.6)PLATE, DRIVEN, NO.1 (T:1.6)
-
1221471-49100 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1321481-45100 RING, WAVE WASHER STOPPERRING, WAVE WASHER STOPPER
-
1409164-00003 WASHERWASHER
-
1521451-49200 PLATE, DRIVEN NO.2 (T:2.0)PLATE, DRIVEN NO.2 (T:2.0)
-
1621462-31D00 DISC, PRESSUREDISC, PRESSURE
-
1709440-20016 SPRINGSPRING
-
1809116-06168 BOLT (6X16)BOLT (6X16)
-
1923165-31D00 RACK, RELEASERACK, RELEASE
-
2008150-62007 BEARINGBEARING
-
2123261-32E00 PINION, RELEASEPINION, RELEASE
-
2209285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
2323271-31D00 ARM, RELEASEARM, RELEASE
-
2401500-0616A BOLTBOLT
-
2509263-12024 BEARING (12X16X10)BEARING (12X16X10)
