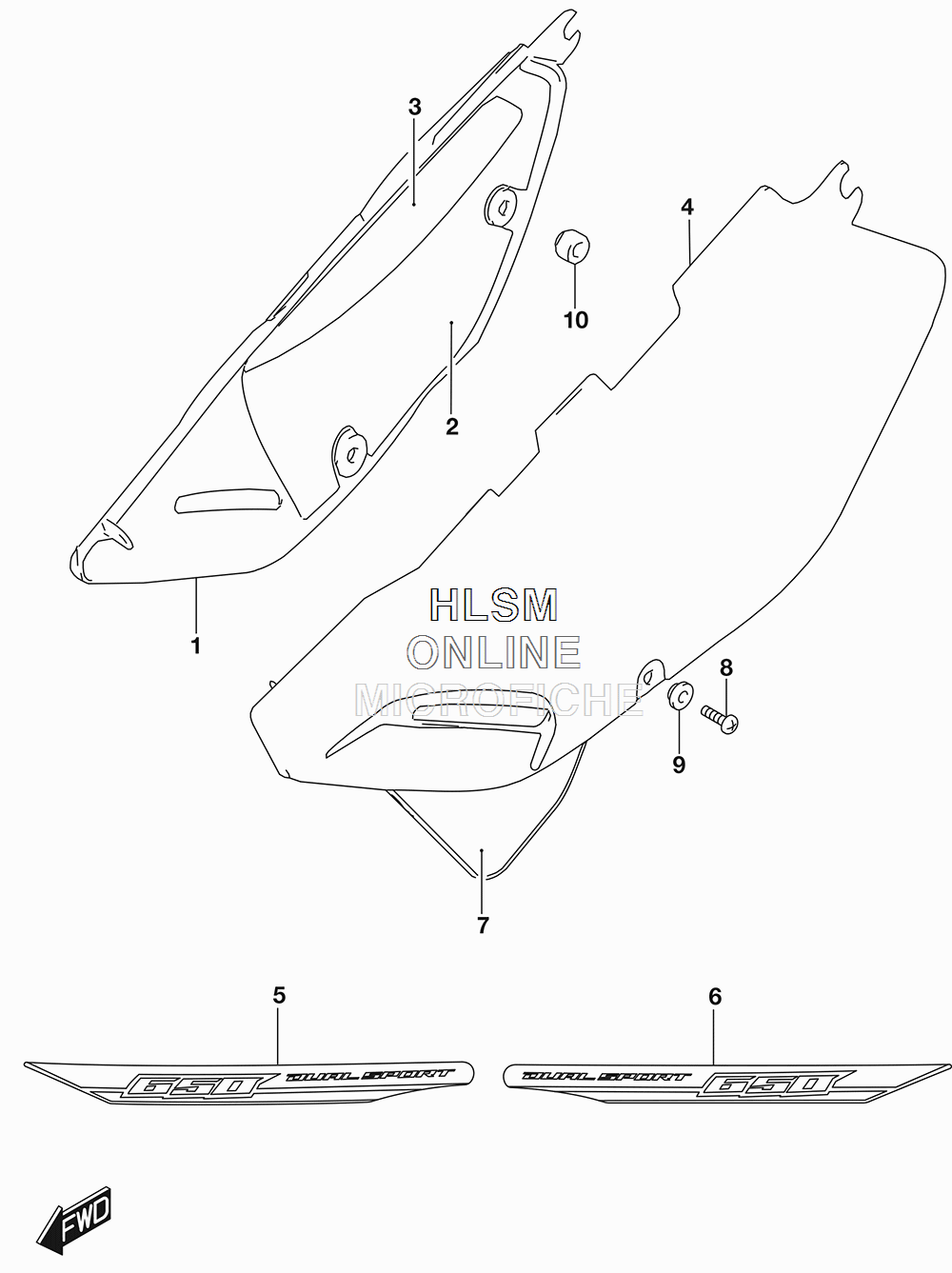

SIDE COVER для Suzuki DR-650SEL7 - 2017 года выпуска
-
№АртикулНазвание
-
147111-32E10-019 COVER, FRAME (RH) (019 - BLACK)COVER, FRAME (RH) (019 - BLACK)
-
247166-32E00 SHIELD, COVER LOWER (RH)SHIELD, COVER LOWER (RH)
-
347167-32E00 SHIELD, COVER UPPER (RH)SHIELD, COVER UPPER (RH)
-
447211-32E10-019 COVER, FRAME (LH) (019 - BLACK)COVER, FRAME (LH) (019 - BLACK)
-
568135-32E70-BCJ TAPE, (RH) (BCJ - BLUE/GRAY/BLACK/SILVER)TAPE, (RH) (BCJ - BLUE/GRAY/BLACK/SILVER)
-
668145-32E70-BCJ TAPE, (LH) (BCJ - BLUE/GRAY/BLACK/SILVER)TAPE, (LH) (BCJ - BLUE/GRAY/BLACK/SILVER)
-
768146-32E00 TAPE, LOWER (LH)TAPE, LOWER (LH)
-
802142-0616A SCREWSCREW
-
909169-06031 WASHERWASHER
-
1009321-10019 CUSHIONCUSHION
