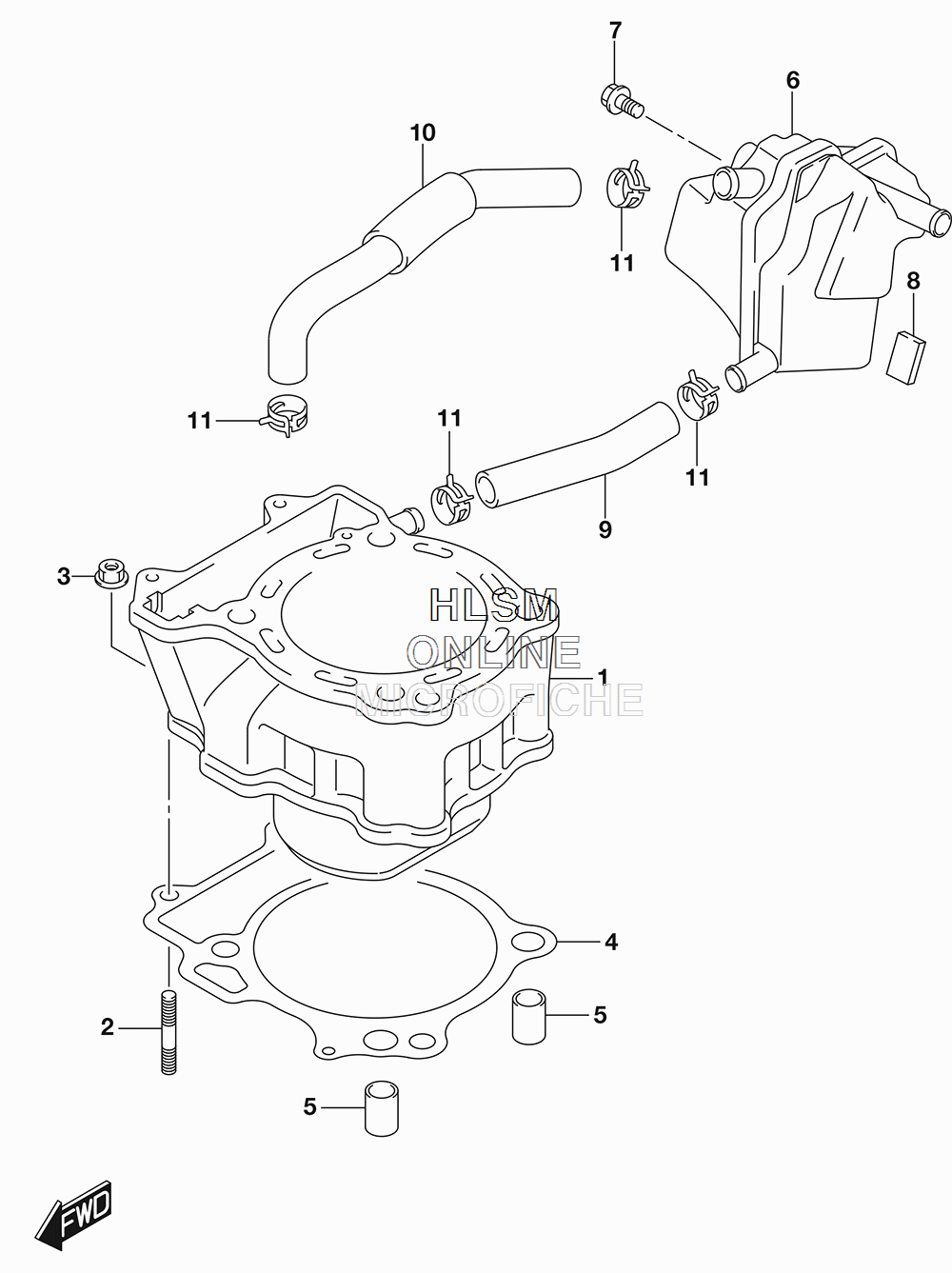

CYLINDER для Suzuki DR-Z400SL7 - 2017 года выпуска
-
№АртикулНазвание
-
111210-29F20-0F0 CYLINDERCYLINDER
-
201421-0625A STUD BOLTSTUD BOLT
-
308316-1006A NUTNUT
-
411241-29F11 GASKET, CYLINDERGASKET, CYLINDER
-
504211-13189 PINPIN
-
611330-29F00 TANK, OIL RETURNTANK, OIL RETURN
-
701550-0610A BOLTBOLT
-
833651-37000 CUSHION, OIL RETURN TANKCUSHION, OIL RETURN TANK
-
911332-29F00 HOSE, BREATHERHOSE, BREATHER
-
1011333-29F00 HOSE, BREATHERHOSE, BREATHER
-
1109401-15404 CLIPCLIP
