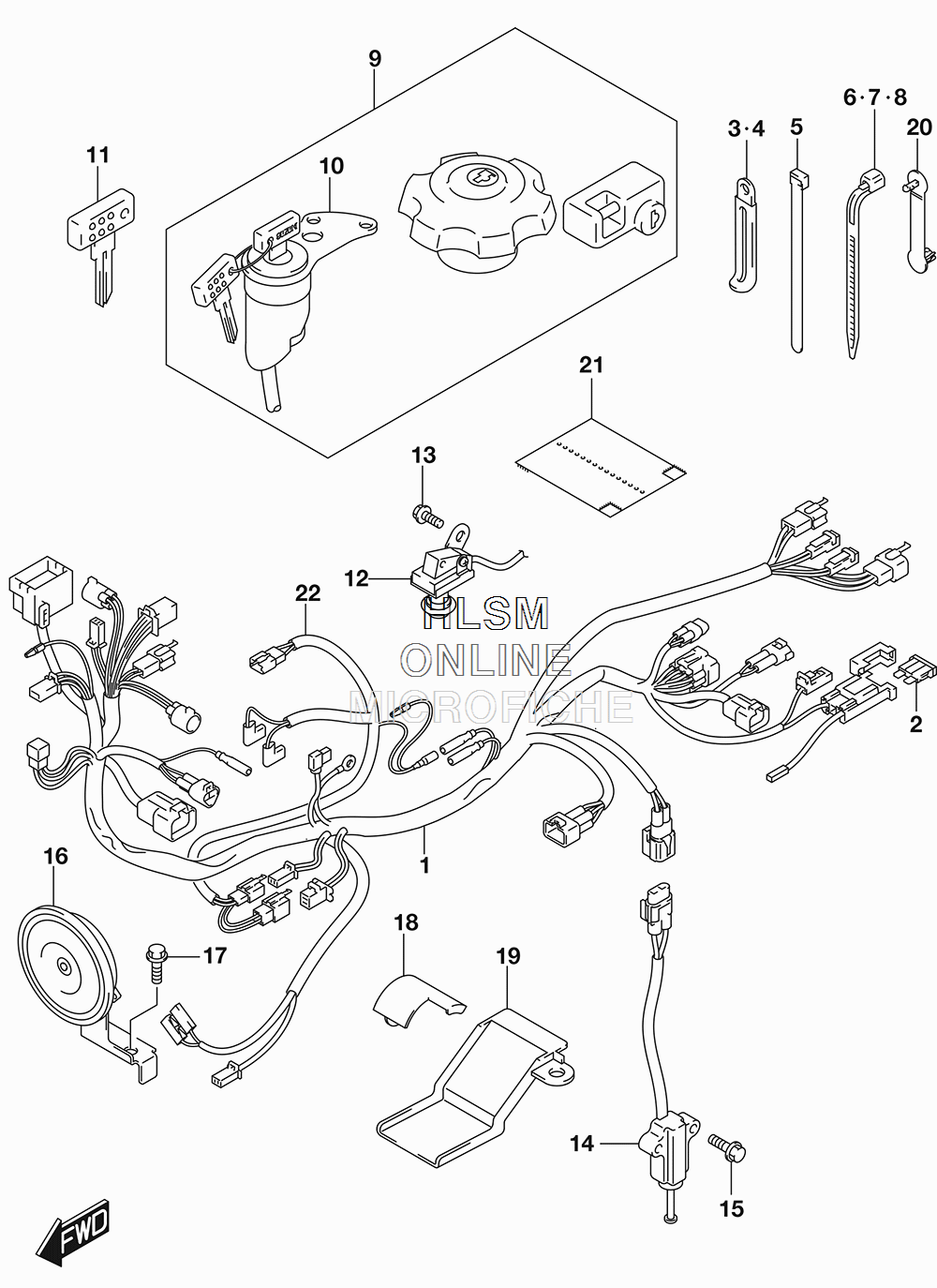

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki DR-Z400SL7 - 2017 года выпуска
-
№АртикулНазвание
-
136610-29FF0 HARNESS, WIRINGHARNESS, WIRING
-
209481-20101 ...FUSE (20A)...FUSE (20A)
-
309404-06429 CLAMP (L:45)CLAMP (L:45)
-
409404-06433 CLAMP (L:80)CLAMP (L:80)
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
709407-18402 CLAMP (L:165)CLAMP (L:165)
-
809407-25401 CLAMP (L:235)CLAMP (L:235)
-
937000-29821 LOCK SETLOCK SET
-
1037110-29F00 ...SWITCH ASSY, IGNITION...SWITCH ASSY, IGNITION
-
11-137146-01F00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
11-237146-01F10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
-
11-337146-01F20 KEY, BLANK (TYPE:E) (OPT)KEY, BLANK (TYPE:E) (OPT)
-
11-437146-01F30 KEY, BLANK (TYPE:F) (OPT)KEY, BLANK (TYPE:F) (OPT)
-
1237740-29F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1302162-0608B SCREWSCREW
-
1437840-11X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1501550-0616A BOLTBOLT
-
1638500-29F01 HORN ASSYHORN ASSY
-
1701550-0612A BOLTBOLT
-
1836611-29F10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1936611-29F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2036651-48E00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2136618-15D20 COVER, WIRING HARNESSCOVER, WIRING HARNESS
-
2236856-29F00 WIRE, CARBURETOR HEATER (OPT)WIRE, CARBURETOR HEATER (OPT)
