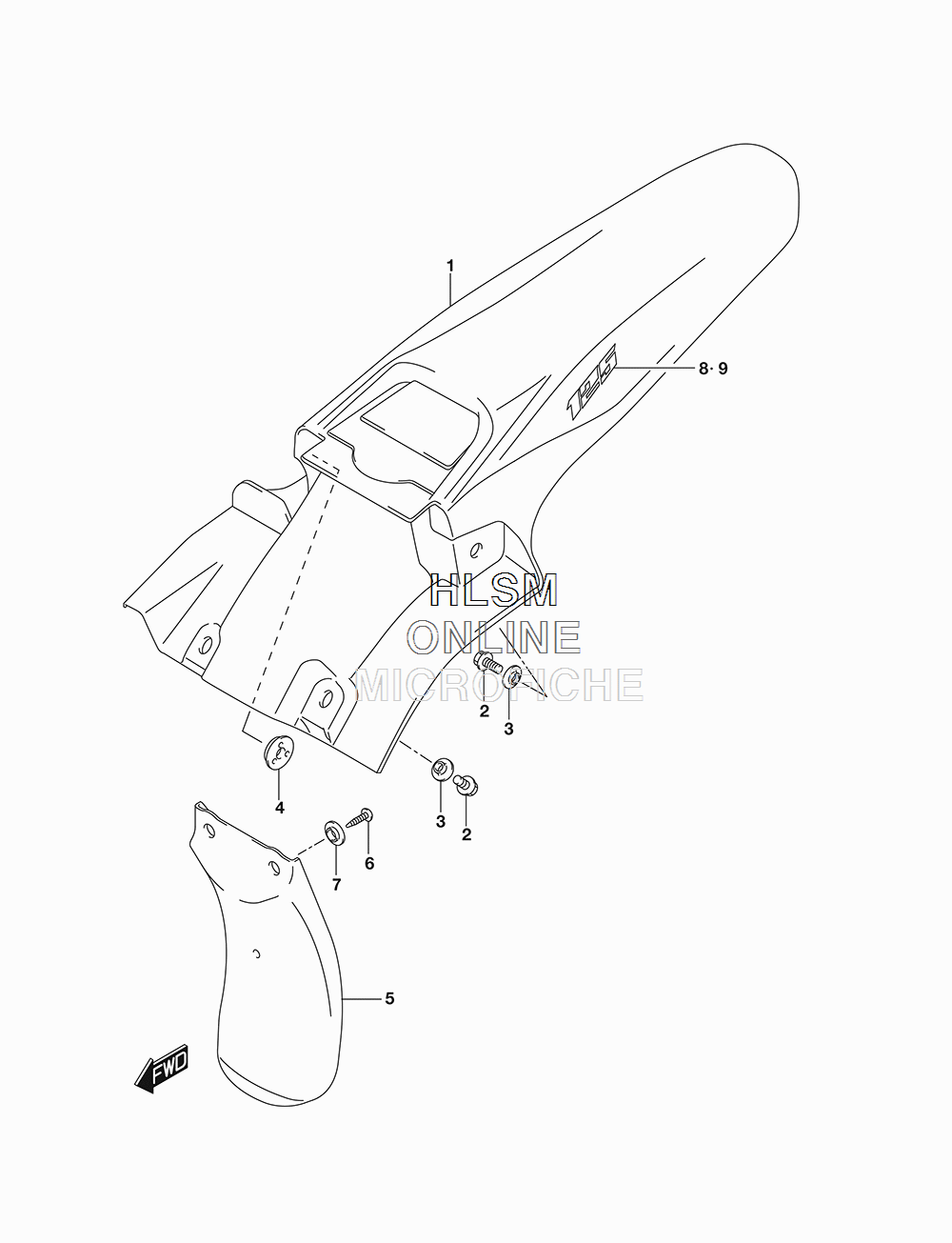

FENDER - REAR (CANADA) для Suzuki DR-Z125L8 - 2018 года выпуска
-
№АртикулНазвание
-
163113-08G60-YU1 FENDER, REAR (YU1 - YELLOW)FENDER, REAR (YU1 - YELLOW)
-
209103-06200 BOLT (6X16)BOLT (6X16)
-
309169-06076 WASHERWASHER
-
409169-08045 WASHERWASHER
-
563411-29F00 MUD GUARD, FRONTMUD GUARD, FRONT
-
609132-05053 SCREW (5X16)SCREW (5X16)
-
709169-06045 WASHERWASHER
-
868171-08G60-GY8 EMBLEM (RH) (GY8 - YELLOW/BLACK)EMBLEM (RH) (GY8 - YELLOW/BLACK)
-
968172-08G60-GY8 EMBLEM (LH) (GY8 - YELLOW/BLACK)EMBLEM (LH) (GY8 - YELLOW/BLACK)
