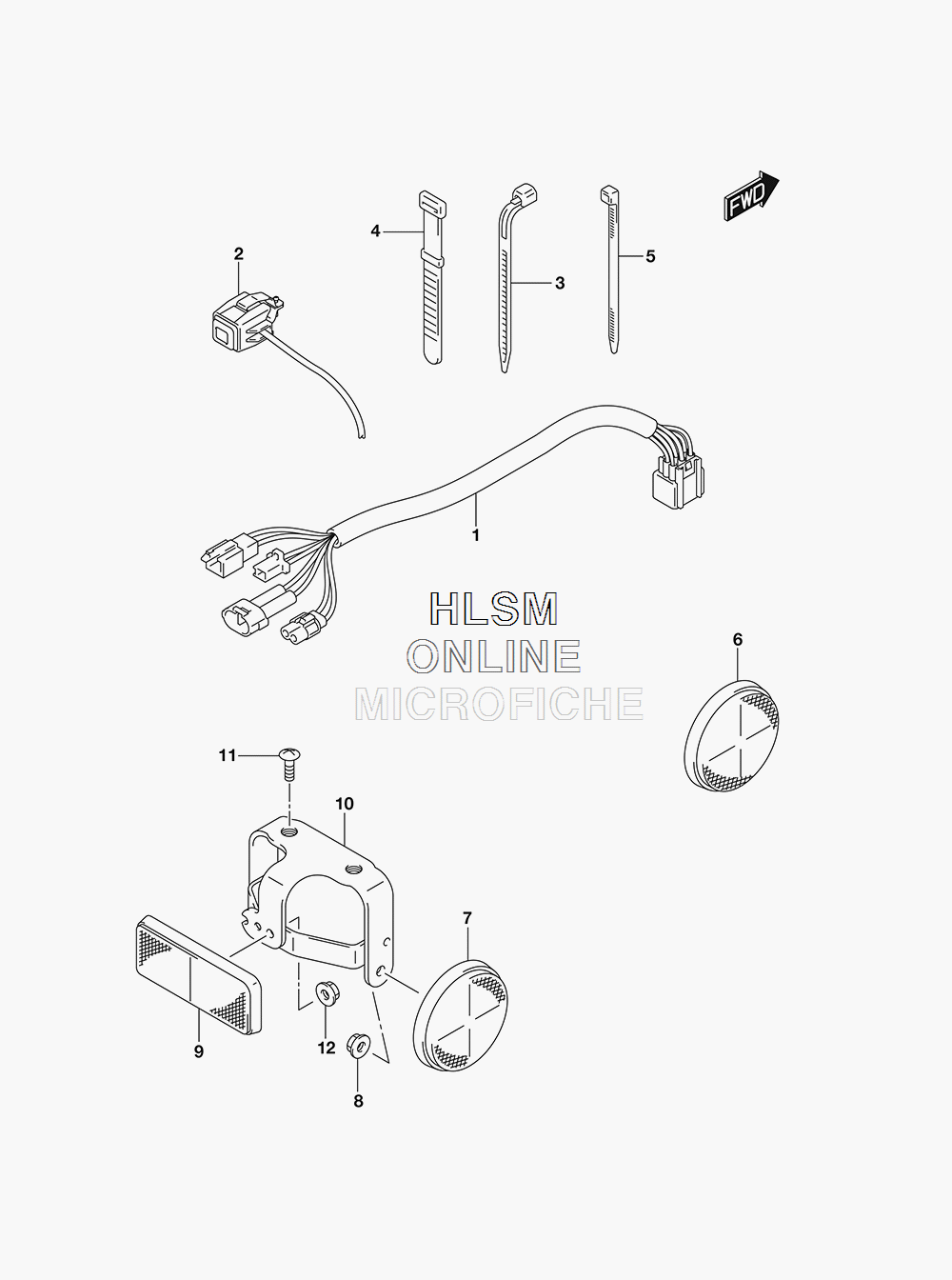

WIRING HARNESS (CANADA) для Suzuki DR-Z125L8 - 2018 года выпуска
-
№АртикулНазвание
-
136610-08G00 HARNESS, WIRINGHARNESS, WIRING
-
237820-08G00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
309407-18402 CLAMP (L:165)CLAMP (L:165)
-
409407-12402 CLAMP (L:120)CLAMP (L:120)
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
635950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
735970-14A20 REFLECTOR ASSY, RR SIDEREFLECTOR ASSY, RR SIDE
-
808316-1005A NUTNUT
-
935970-07F01 REFLECTOR ASSY, RRREFLECTOR ASSY, RR
-
1035974-08G10 BRACKET, SIDE & RRBRACKET, SIDE & RR
-
1102142-0612A SCREWSCREW
-
1208316-1005A NUTNUT
