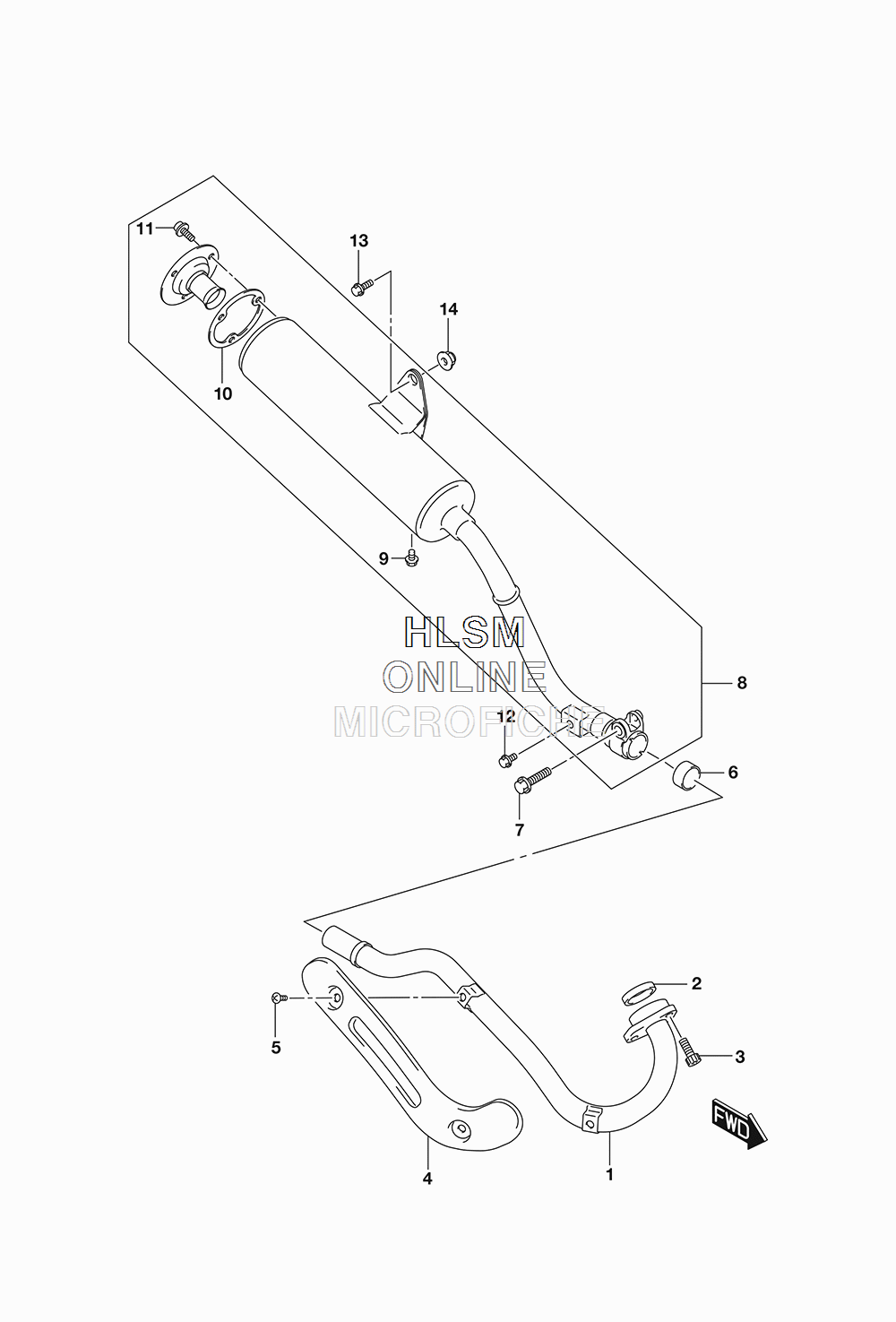

MUFFLER для Suzuki DR-Z125LL8 - 2018 года выпуска
-
№АртикулНазвание
-
114150-08G00 EXHAUST PIPEEXHAUST PIPE
-
214181-14D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
307130-0825A BOLTBOLT
-
414180-08G10 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
509139-06076 SCREW (6X10)SCREW (6X10)
-
614771-08G00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
707120-0840A BOLTBOLT
-
814310-08G01 BODY, MUFFLERBODY, MUFFLER
-
907120-0610A ...BOLT...BOLT
-
1014773-08G00 ...GASKET, ARRESTER...GASKET, ARRESTER
-
1107120-0610A ...BOLT...BOLT
-
1201550-0812A BOLTBOLT
-
1309103-08247 BOLT (8X23)BOLT (8X23)
-
1408319-3108A NUTNUT
