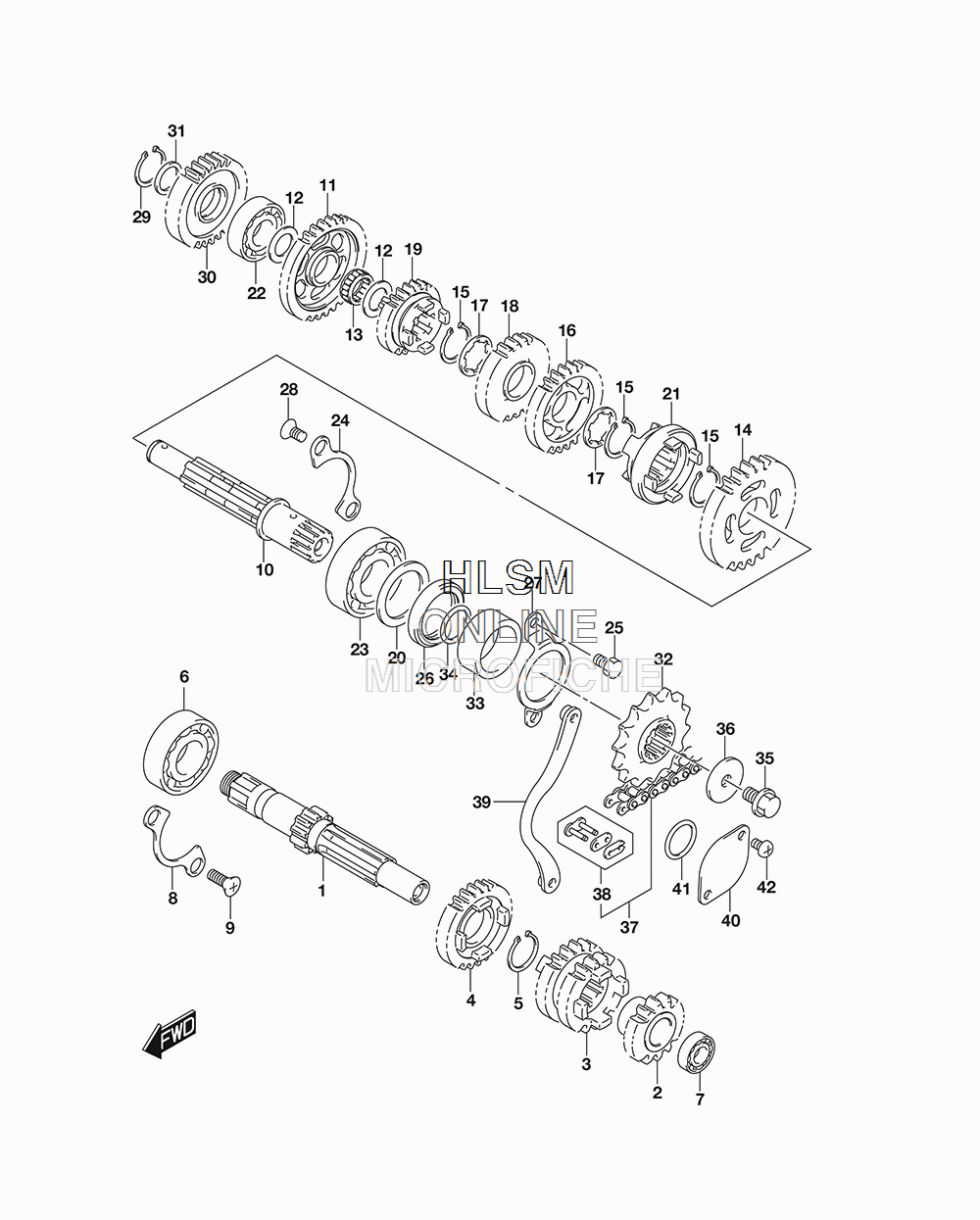

TRANSMISSION (CANADA) для Suzuki DR-Z125LL8 - 2018 года выпуска
-
№АртикулНазвание
-
124120-05850 SHAFT, COUNTER (NT:11)SHAFT, COUNTER (NT:11)
-
224221-05301 GEAR, 2ND DRIVE (NT:14)GEAR, 2ND DRIVE (NT:14)
-
324231-05203 GEAR, 3RD/4TH DR (NT:19/21)GEAR, 3RD/4TH DR (NT:19/21)
-
424251-05212 GEAR, 5TH DRIVE (NT:26)GEAR, 5TH DRIVE (NT:26)
-
509380-20009 CIRCLIPCIRCLIP
-
609262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
708123-60027 BEARINGBEARING
-
824741-05200 RETAINER, CENTER SHAFT BEARINGRETAINER, CENTER SHAFT BEARING
-
909126-06011 SCREW (6X12)SCREW (6X12)
-
1024130-44A00 SHAFT, DRIVESHAFT, DRIVE
-
1124311-05202 GEAR, 1ST DRIVEN (NT:33)GEAR, 1ST DRIVEN (NT:33)
-
1208211-15251 WASHERWASHER
-
1309263-15023 BEARING (15X19X7.8)BEARING (15X19X7.8)
-
1424320-05202 GEAR, 2ND DRIVEN (NT:26)GEAR, 2ND DRIVEN (NT:26)
-
1509380-20009 CIRCLIPCIRCLIP
-
1624331-05203 GEAR, 3RD DRIVEN (NT:26)GEAR, 3RD DRIVEN (NT:26)
-
1709167-20034 LOCK WASHERLOCK WASHER
-
1824341-05203 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
1924351-05211 GEAR, 5TH DRIVEN (NT:24)GEAR, 5TH DRIVEN (NT:24)
-
2024359-42A00 WASHER, OIL SEALINGWASHER, OIL SEALING
-
2124421-05300 WHEEL, SLIDING DOGWHEEL, SLIDING DOG
-
2209264-15001 BEARING (15X36X12)BEARING (15X36X12)
-
2309262-22018 BEARING (22X50X14)BEARING (22X50X14)
-
2424741-05200 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
2501500-0610A BOLTBOLT
-
2609283-30053 OIL SEAL (30X40X6)OIL SEAL (30X40X6)
-
2724751-42A10 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
2809126-06011 SCREW (6X12)SCREW (6X12)
-
2908331-3115A CIRCLIPCIRCLIP
-
3026260-05201 GEAR, KICK STARTER IDLE (NT:26)GEAR, KICK STARTER IDLE (NT:26)
-
3109181-15111 SHIM (15X20X1)SHIM (15X20X1)
-
3227511-44A20 SPROCKET, ENGINE (NT:14)SPROCKET, ENGINE (NT:14)
-
3327531-42A00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3409280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
-
3501550-0812A BOLTBOLT
-
3608211-08283 WASHERWASHER
-
3727600-46912-130 CHAIN ASSY (DID428HD(I))CHAIN ASSY (DID428HD(I))
-
3827620-46912 ...JOINT (DID428HD(I))...JOINT (DID428HD(I))
-
3927640-08G00 PLATE, FRONT CHAINPLATE, FRONT CHAIN
-
4011450-08G00 CAP, NEUTRAL SWCAP, NEUTRAL SW
-
4109280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
4202112-0508A SCREWSCREW
