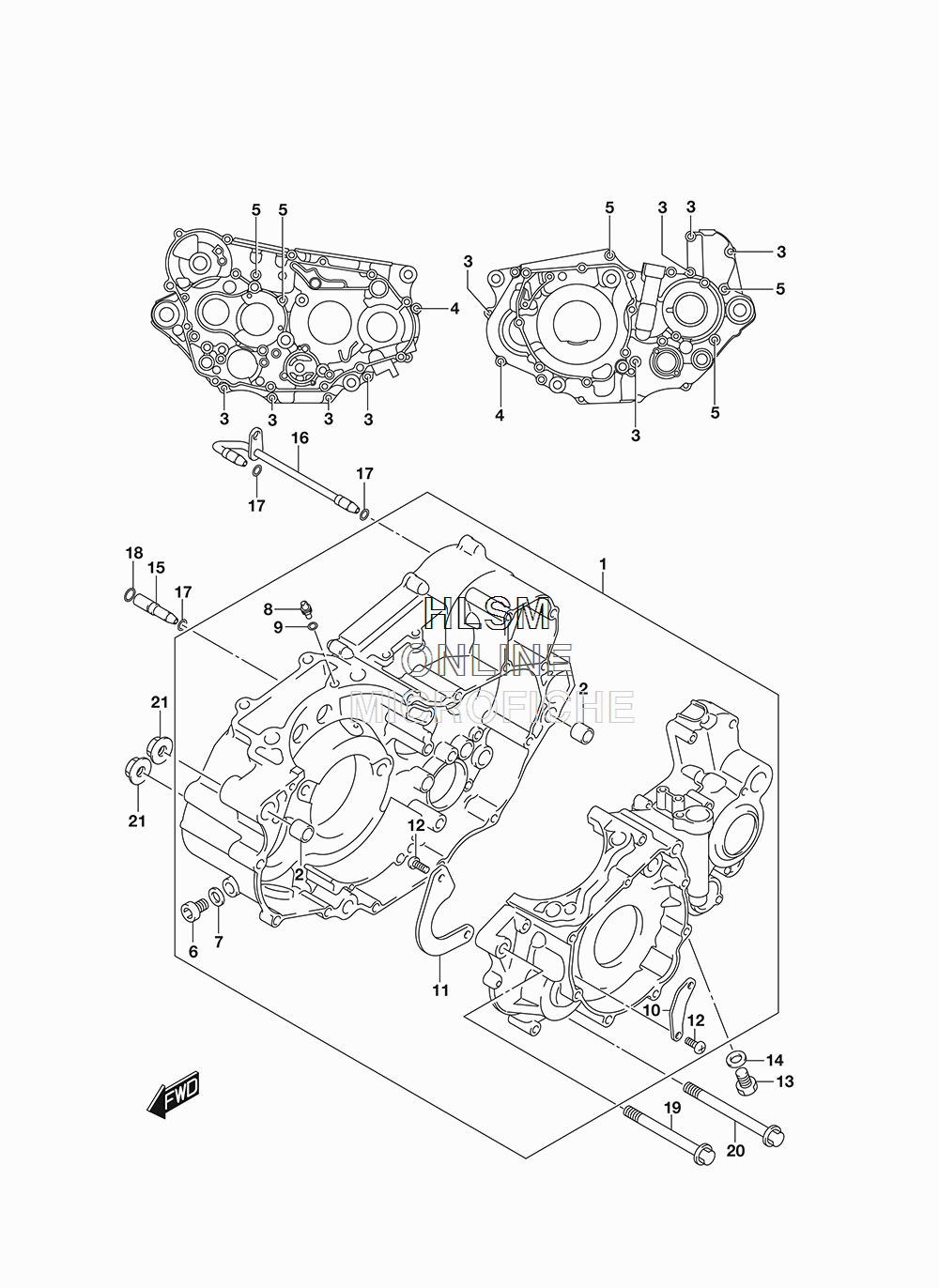

CRANKCASE для Suzuki DR-Z400SL8 - 2018 года выпуска
-
№АртикулНазвание
-
111301-29853 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN...PIN
-
301547-0640A ...BOLT...BOLT
-
401547-0655A ...BOLT...BOLT
-
501547-0670A ...BOLT...BOLT
-
609248-10010 ...PLUG (10X10)...PLUG (10X10)
-
709168-10002 ...GASKET (10X14X3.6)...GASKET (10X14X3.6)
-
809493-80005 ...JET(8)...JET(8)
-
909280-04004 ...O RING (D:1.2,ID:4)...O RING (D:1.2,ID:4)
-
1011323-29F00 ...SEPARATOR, CRANKCASE OIL NO....SEPARATOR, CRANKCASE OIL NO.
-
1111324-29F00 ...SEPARATOR, CRANKCASE OIL NO....SEPARATOR, CRANKCASE OIL NO.
-
1209125-06122 ...SCREW (6X12)...SCREW (6X12)
-
1309247-12011 PLUG (12X20) (OIL DRAIN)PLUG (12X20) (OIL DRAIN)
-
1409168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1511451-29F00 PIPE, OIL INNER NO.1PIPE, OIL INNER NO.1
-
1611460-29F00 PIPE, T/M OIL INNER NO.2PIPE, T/M OIL INNER NO.2
-
1709280-05004 O RING (D:1.9,ID:4.8)O RING (D:1.9,ID:4.8)
-
1809280-07004 O RING (D:1.9,ID:6.8)O RING (D:1.9,ID:6.8)
-
1909103-10726 BOLT (10X90)BOLT (10X90)
-
2009103-10063 BOLT (10X115)BOLT (10X115)
-
2109159-10115 NUTNUT
