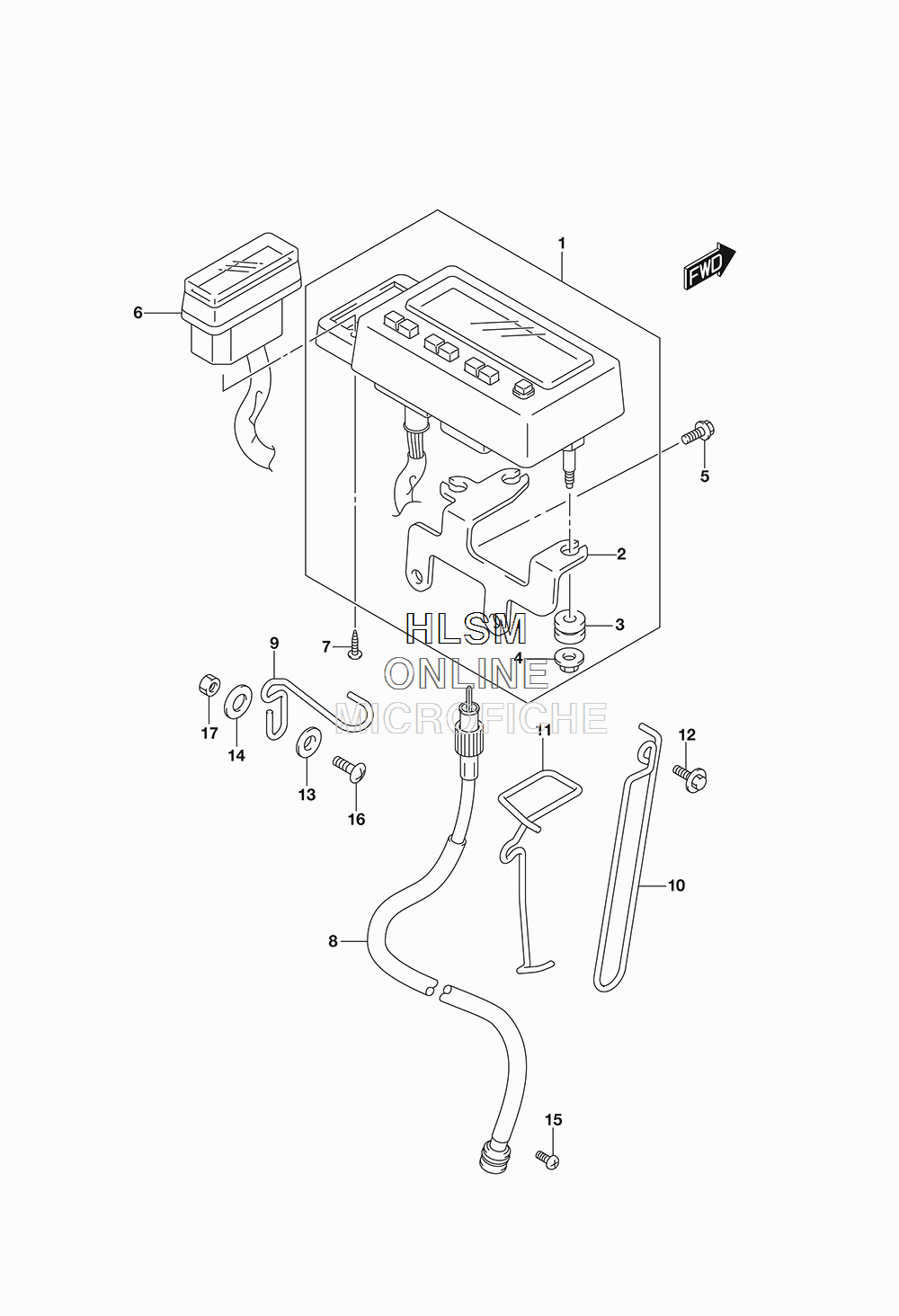

SPEEDOMETER (CANADA) для Suzuki DR-Z400SL8 - 2018 года выпуска
-
№АртикулНазвание
-
134100-29F30 SPEEDOMETER ASSY (KILO)SPEEDOMETER ASSY (KILO)
-
234950-29F00 ...BRACKET...BRACKET
-
334996-43410 ...CUSHION...CUSHION
-
408316-1005A ...NUT...NUT
-
501550-0616A BOLTBOLT
-
636380-29F00 BOX ASSY, PILOT LAMPBOX ASSY, PILOT LAMP
-
703511-0420B SCREWSCREW
-
834910-32E00 CABLE ASSY, SPEEDOMETERCABLE ASSY, SPEEDOMETER
-
934938-03D22 GUIDE, METER CABLE NO.1GUIDE, METER CABLE NO.1
-
1034938-14D30 GUIDE, METER CABLE NO.2GUIDE, METER CABLE NO.2
-
1134938-29F10 GUIDE, SPEEDMETER CABLE NO.3GUIDE, SPEEDMETER CABLE NO.3
-
1209116-06201 BOLT (6X20)BOLT (6X20)
-
1309160-06109 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1409169-06053 WASHERWASHER
-
1502112-0516B SCREWSCREW
-
1602142-0616B SCREWSCREW
-
1708310-0006B NUTNUT
