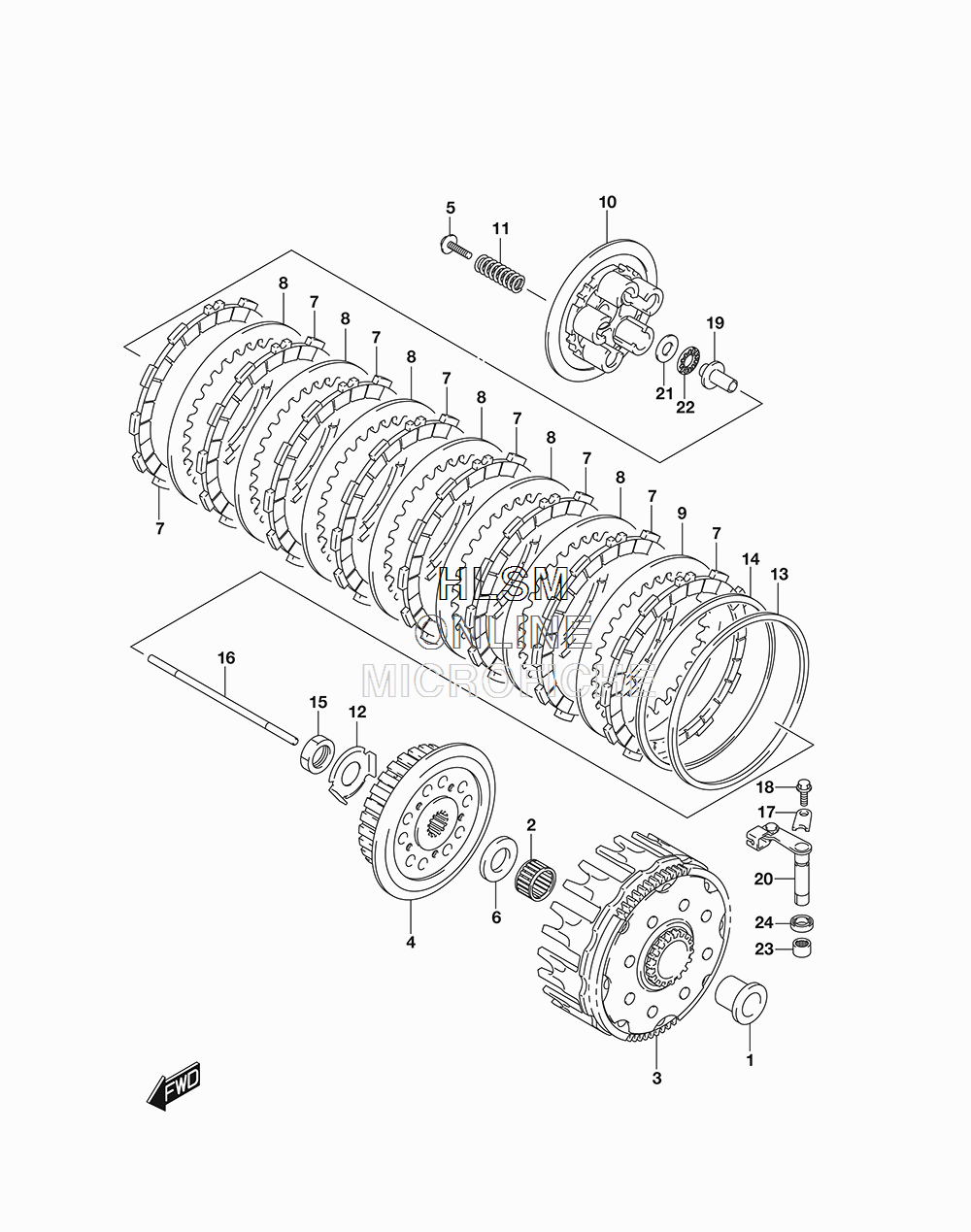

CLUTCH для Suzuki RM-Z250L8 - 2018 года выпуска

№

Артикул

Название
1

21251-10H00 SPACER, PRIMARY DRIVEN GEAR

SPACER, PRIMARY DRIVEN GEAR

7 470 ₽
2

09263-27004 BEARING (27X32X21.8)

BEARING (27X32X21.8)

4 810 ₽
3

21200-49H10 GEAR ASSY, PRIMARY DRIVEN (NT:18/63)

GEAR ASSY, PRIMARY DRIVEN (NT:18/63)

48 800 ₽
4

21411-10H10 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

17 390 ₽
5

21412-45G00 BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

590 ₽
6

09160-22083 WASHER (22X45X3)

WASHER (22X45X3)

2 040 ₽
7

21441-40F10 PLATE, CLUTCH DRIVE (T:2.8)

PLATE, CLUTCH DRIVE (T:2.8)

3 090 ₽
8

21451-10H00 PLATE, CLUTCH DRIVEN (T:1.6)

PLATE, CLUTCH DRIVEN (T:1.6)

1 880 ₽
9

21452-10H00 PLATE, CLUTCH DRIVEN (T:1.6)

PLATE, CLUTCH DRIVEN (T:1.6)

2 540 ₽
10

21462-10H00 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

8 600 ₽
11

21413-49H00 SPRING, CLUTCH

SPRING, CLUTCH

1 110 ₽
12

21416-49H00 WASHER, CLUTCH SLEEVE

WASHER, CLUTCH SLEEVE

720 ₽
13

21471-40F00 SEAT, WAVE WASHER

SEAT, WAVE WASHER

2 600 ₽
14

21472-10H00 WASHER, CLUTH PLATE

WASHER, CLUTH PLATE

3 250 ₽
15

21414-49H00 NUT, CLUTCH SLEEVE HUB

NUT, CLUTCH SLEEVE HUB

1 510 ₽
16

23110-37F00 ROD, CLUTCH PUSH

ROD, CLUTCH PUSH

2 760 ₽
17

23117-10H00 RETAINER, CLUTCH RELEASE

RETAINER, CLUTCH RELEASE

730 ₽
18

01547-0612A BOLT

BOLT

350 ₽
19

23121-49H10 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

4 720 ₽
20

23200-49H20 CAMSHAFT, CLUTCH RELEASE

CAMSHAFT, CLUTCH RELEASE

11 410 ₽
21

09181-12016 SHIM (12X26X0.8)

SHIM (12X26X0.8)

410 ₽
22

09263-12019 BEARING (12X26X2)

BEARING (12X26X2)

1 790 ₽
23

09263-10014 BEARING (10X14X10)

BEARING (10X14X10)

2 370 ₽
24

09285-10004 OIL SEAL (10X17X5)

OIL SEAL (10X17X5)

590 ₽
