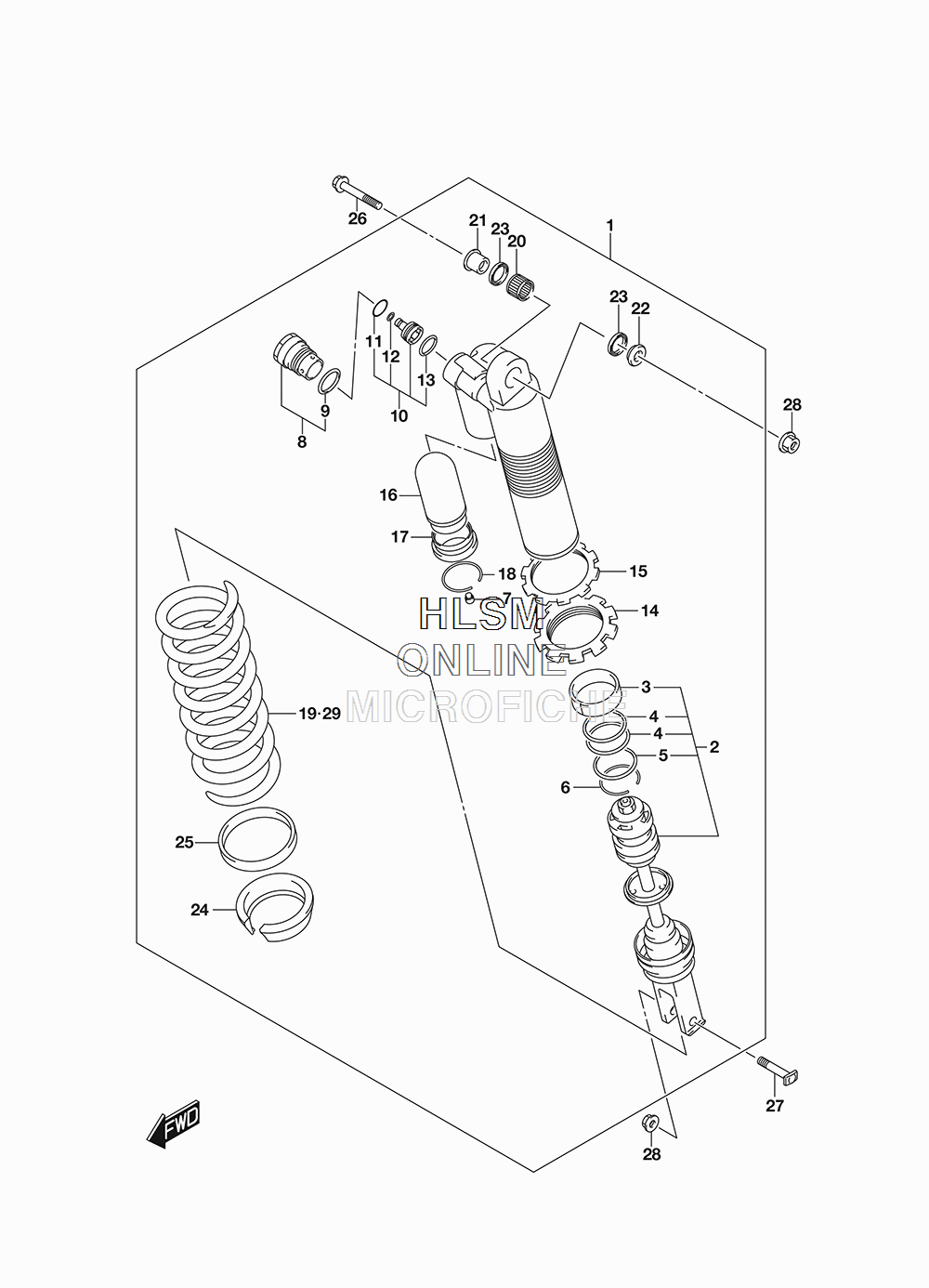

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250L8 - 2018 года выпуска
-
№АртикулНазвание
-
162100-49HF0-019 ABSORBER ASSY, RR SHOCK (019 - BLACK)ABSORBER ASSY, RR SHOCK (019 - BLACK)
-
262120-49HE0 ...ROD SUBASSY, PISTON...ROD SUBASSY, PISTON
-
362131-49HE0 ......RING, PISTON......RING, PISTON
-
462152-49HE0 ......O RING......O RING
-
562153-49HE0 ......O RING......O RING
-
662279-49HE0 ...RING, STOP...RING, STOP
-
751294-40400 ...CAP, VALVE AIR...CAP, VALVE AIR
-
862130-49HE0 ...VALVE ASSY...VALVE ASSY
-
962133-49HE0 ......O RING......O RING
-
1062170-49HE0 ...VALVE, COMP...VALVE, COMP
-
1162135-49HE0 ......WASHER......WASHER
-
1262136-49HE0 ......O RING......O RING
-
1362134-49HE0 ......O RING......O RING
-
1462191-49HE0 ...GUIDE, SPRING...GUIDE, SPRING
-
1562194-49HE0 ...NUT...NUT
-
1662273-49HE0 ...BLADER...BLADER
-
1762275-49HE0 ...GUIDE...GUIDE
-
1862277-49HE0 ...RING, STOP...RING, STOP
-
1962211-49HE0 ...SPRING (STD K=5.5)...SPRING (STD K=5.5)
-
2009263-16033 ...BEARING (16X22X12)...BEARING (16X22X12)
-
2162684-36F00 ...SPACER, UPPER BEARING (RH)...SPACER, UPPER BEARING (RH)
-
2262685-36F00 ...SPACER, UPPER BEARING (LH)...SPACER, UPPER BEARING (LH)
-
2309284-16005 ...OIL SEAL (16X22X2.5)...OIL SEAL (16X22X2.5)
-
2462222-49HE0 ...GUIDE SPRING...GUIDE SPRING
-
2562221-49HE0 ...GUIDE SPRING...GUIDE SPRING
-
2662311-28H00 BOLT, RR SHOCK ABSORBER UPPERBOLT, RR SHOCK ABSORBER UPPER
-
2762221-37F30 BOLT, RR SHOCK ABSORBER LOWERBOLT, RR SHOCK ABSORBER LOWER
-
2809159-10067 NUTNUT
-
29-162211-49HG0 SPRING, REAR (OPT) (SOFT K=5.3)SPRING, REAR (OPT) (SOFT K=5.3)
-
29-262211-49HH0 SPRING, REAR (OPT) (HARD K=5.7)SPRING, REAR (OPT) (HARD K=5.7)
-
29-362211-49HJ0 SPRING, REAR (OPT) (HARD K=5.9)SPRING, REAR (OPT) (HARD K=5.9)
