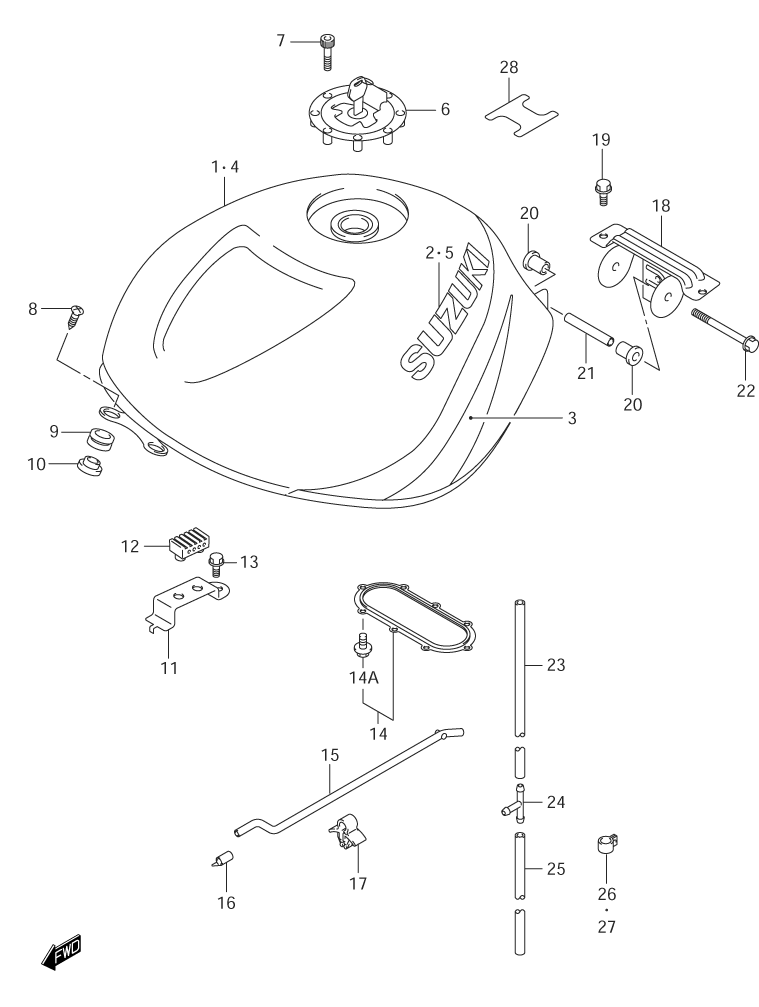

FUEL TANK для Suzuki TL-1000R Y - 2000 года выпуска
-
№АртикулНазвание
-
1-144100-02FJ0-L99 TANK ASSY., FUEL (L99 - WHITE/BLUE) (EXCEPT CALIF.)TANK ASSY., FUEL (L99 - WHITE/BLUE) (EXCEPT CALIF.)
-
1-244100-02FK0-L99 TANK ASSY., FUEL (L99 - WHITE/BLUE) (CALIF. ONLY)TANK ASSY., FUEL (L99 - WHITE/BLUE) (CALIF. ONLY)
-
268111-12C00-0JW ...EMBLEM (0JW - WHITE) (FOR L99)...EMBLEM (0JW - WHITE) (FOR L99)
-
368110-02FB0-1LE ...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99)...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99)
-
4-144100-02FL0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.)TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.)
-
4-244100-02FM0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY)TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY)
-
568111-12C00-Y7L ...EMBLEM (Y7L - BLACK) (FOR Y9H)...EMBLEM (Y7L - BLACK) (FOR Y9H)
-
6-144200-33870 CAP SET, FUEL TANK (EXCEPT CALIF)CAP SET, FUEL TANK (EXCEPT CALIF)
-
6-244200-33890 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
709106-05017 BOLT, CAPBOLT, CAP
-
809139-06029 BOLT (FRONT)BOLT (FRONT)
-
909320-09009 CUSHIONCUSHION
-
1009169-06062 SPACERSPACER
-
1144531-02FA0 BRACKET, SIDE CUSHIONBRACKET, SIDE CUSHION
-
1245149-31300 CUSHION, SIDECUSHION, SIDE
-
1301550-06163 BOLTBOLT
-
1444590-02840 GASKET SET, FUEL PUMPGASKET SET, FUEL PUMP
-
14A15211-02F00 ...BOLT...BOLT
-
1544574-33E01 STAY, FUEL TANKSTAY, FUEL TANK
-
1609251-05006 PLUGPLUG
-
1709403-05310 CLAMPCLAMP
-
1844550-02FA1 BRACKET (REAR)BRACKET (REAR)
-
1901550-08163 BOLT (REAR) BRACKETBOLT (REAR) BRACKET
-
2044541-02F00 CUSHION (REAR)CUSHION (REAR)
-
2144561-33E10 SPACER, JOINTSPACER, JOINT
-
2201550-08953 BOLT, JOINTBOLT, JOINT
-
2344423-02F01 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2409367-08005 3 WAY, DRAIN HOSE3 WAY, DRAIN HOSE
-
2509352-70103-600 HOSE, WATER DRAIN (L:600->270)HOSE, WATER DRAIN (L:600->270)
-
2609403-14408 CLAMPCLAMP
-
2709403-24302 CLAMPCLAMP
-
2844261-02F00 LABEL, FUELLABEL, FUEL
