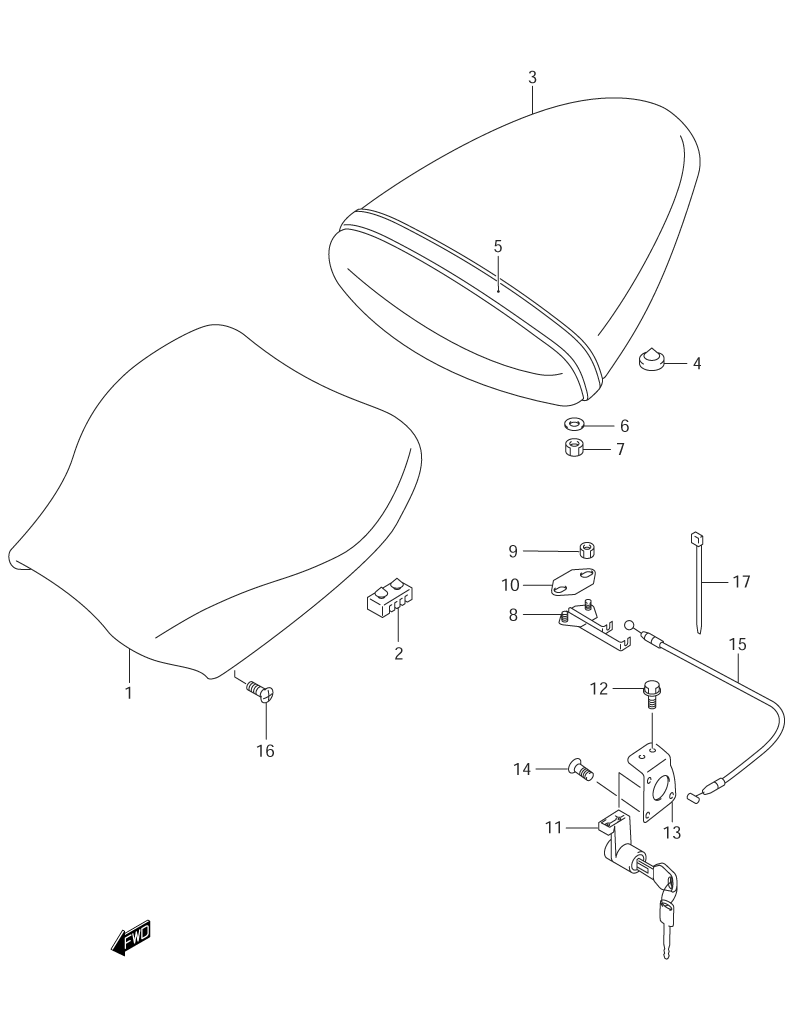

SEAT для Suzuki TL-1000R Y - 2000 года выпуска
-
№АртикулНазвание
-
145100-02FA0-R42 SEAT ASSY. (BLACK)SEAT ASSY. (BLACK)
-
245149-31300 ...CUSHION...CUSHION
-
345300-02FA0-R42 SEAT ASSY., PILLION (BLACK)SEAT ASSY., PILLION (BLACK)
-
409321-10002 ...CUSHION...CUSHION
-
545180-02FA0-R42 ...BAND, SEAT (BLACK)...BAND, SEAT (BLACK)
-
609160-06088 ...WASHER...WASHER
-
708316-10063 ...NUT...NUT
-
845220-03F00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
908316-10063 NUTNUT
-
1045228-03F00 PLATE, BRACKETPLATE, BRACKET
-
1195700-31840 LOCK SET, SEATLOCK SET, SEAT
-
1201547-05103 BOLTBOLT
-
1345289-03F00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1403141-14123 SCREWSCREW
-
1545280-02FA0 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1609106-06064 BOLT, SEAT (6X18)BOLT, SEAT (6X18)
-
1709407-14407 CLAMP, CABLECLAMP, CABLE
