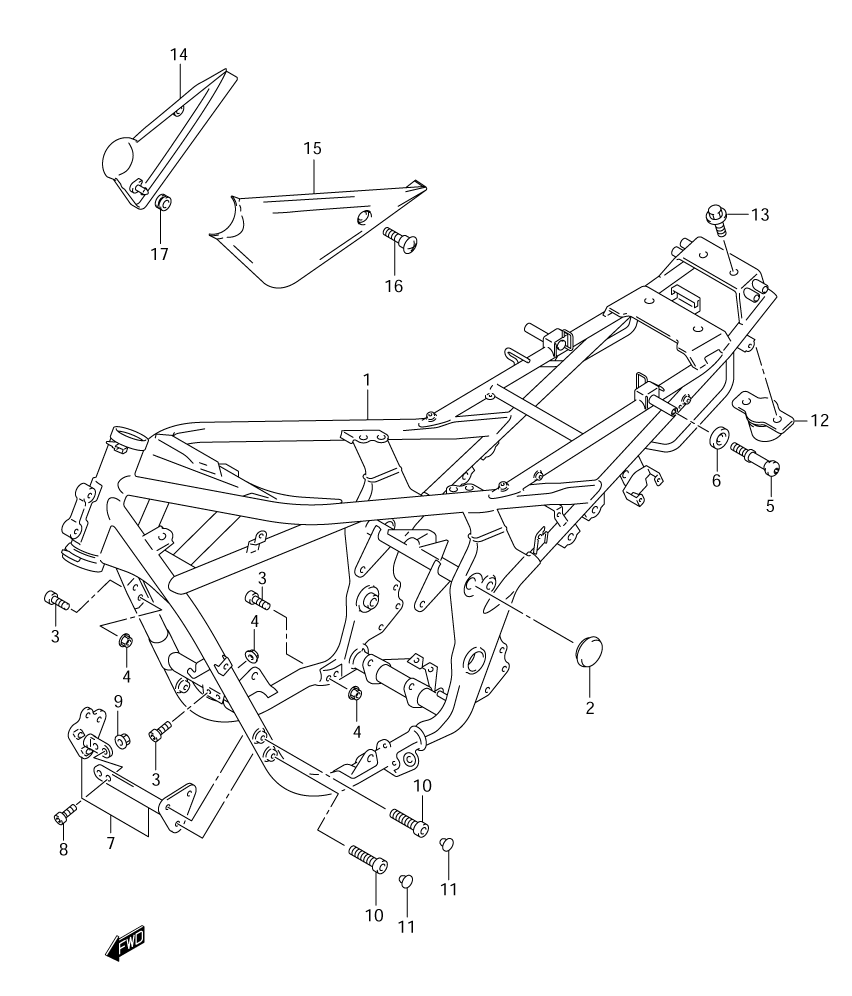

FRAME для Suzuki GSF1200S K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-141100-32F00-33J FRAME (33J - BLACK) (CANADA)FRAME (33J - BLACK) (CANADA)
-
1-241100-32F00-YC6 FRAME (YC6 - RED)FRAME (YC6 - RED)
-
1-341100-32F00-YD8 FRAME (YD8 - SILVER) (US)FRAME (YD8 - SILVER) (US)
-
243585-03F00 CAP, FRAME BODYCAP, FRAME BODY
-
309106-10068 BOLT (10X37)BOLT (10X37)
-
408319-31103 NUTNUT
-
546315-31F00 HOOK, SEAT RAILHOOK, SEAT RAIL
-
646317-31F00 WASHER, HOOKWASHER, HOOK
-
7-141900-32F00-33J PLATE, ENGINE MOUNT (BLACK) (CANADA)PLATE, ENGINE MOUNT (BLACK) (CANADA)
-
7-241900-32F00-YC6 PLATE, ENGINE MOUNT (RED)PLATE, ENGINE MOUNT (RED)
-
7-341900-32F00-YD8 PLATE, ENGINE MOUNT (SILVER) (US)PLATE, ENGINE MOUNT (SILVER) (US)
-
807120-10303 ...BOLT...BOLT
-
908319-31103 ...NUT...NUT
-
1007130-08503 BOLTBOLT
-
1109250-08016 CAPCAP
-
1242550-32F00 DAMPER, FRAME (REAR)DAMPER, FRAME (REAR)
-
1301550-06123 BOLTBOLT
