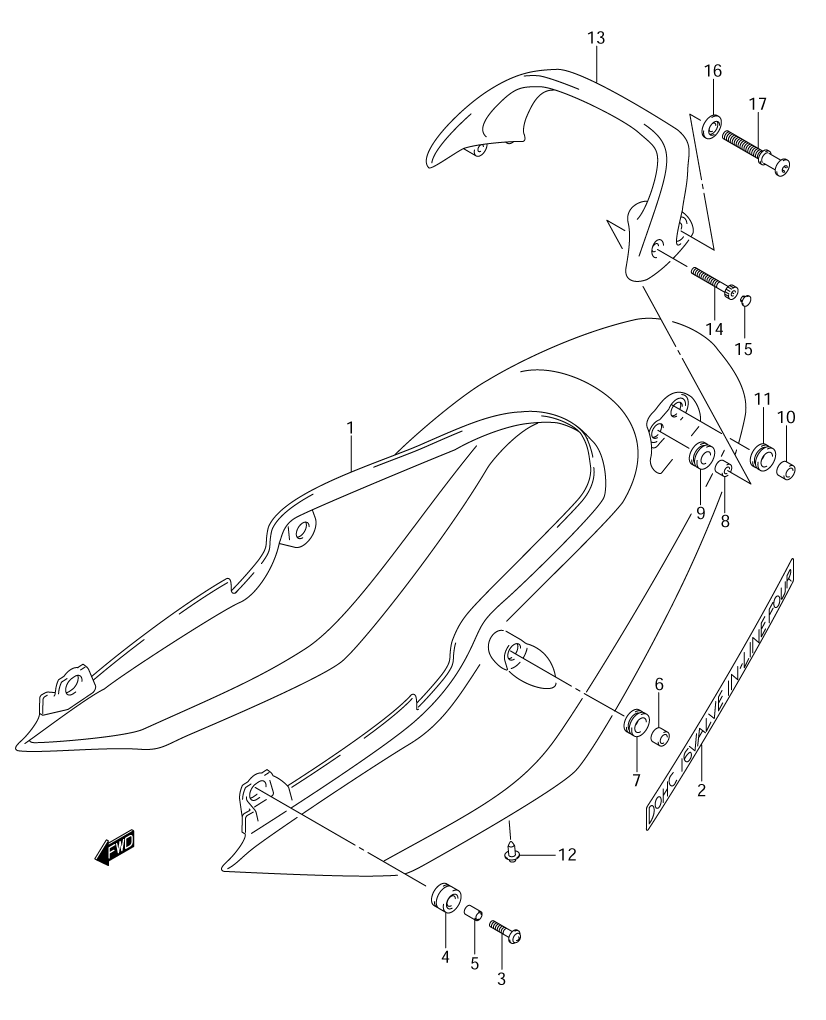

SEAT TAIL COVER для Suzuki GSF1200S K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-145510-32F10-YC6 COVER, SEAT TAIL (YC6 - RED)COVER, SEAT TAIL (YC6 - RED)
-
1-245510-32F10-33J COVER, SEAT TAIL (33J - BLACK)COVER, SEAT TAIL (33J - BLACK)
-
1-345510-32F10-YD8 COVER, SEAT TAIL (YD8 - SILVER)COVER, SEAT TAIL (YD8 - SILVER)
-
2-168131-32F10-DL2 ...EMBLEM, TAIL COVER (DL2 - SILVER/RED) (FOR YC6 - RED)...EMBLEM, TAIL COVER (DL2 - SILVER/RED) (FOR YC6 - RED)
-
2-268131-32F10-M2R ...EMBLEM, TAIL COVER (M2R - SILVER/BLACK) (FOR 33J - BLACK)...EMBLEM, TAIL COVER (M2R - SILVER/BLACK) (FOR 33J - BLACK)
-
2-368131-32F10-DL3 ...EMBLEM, TAIL COVER (DL3 - BLUE/SILVER) (FOR YD8 - SILVER)...EMBLEM, TAIL COVER (DL3 - BLUE/SILVER) (FOR YD8 - SILVER)
-
309136-06083 SCREW (FRONT) (6X30)SCREW (FRONT) (6X30)
-
447115-19F00 CUSHION (FRONT) (10X22X15)CUSHION (FRONT) (10X22X15)
-
509180-06291 SPACER (FRONT) (6.5X10X13)SPACER (FRONT) (6.5X10X13)
-
609180-08199 SPACER, CENTER (8.5X14X9)SPACER, CENTER (8.5X14X9)
-
709320-14023 CUSHION, CENTER (14X22X9.5)CUSHION, CENTER (14X22X9.5)
-
809180-06300 SPACER, RR-FR (6.5X12X9)SPACER, RR-FR (6.5X12X9)
-
909320-12068 CUSHION, RR-FR (12X22X9.5)CUSHION, RR-FR (12X22X9.5)
-
1009180-08199 SPACER, RR-RR (8.5X14X9)SPACER, RR-RR (8.5X14X9)
-
1109320-14023 CUSHION, RR-RR (14X12X9.5)CUSHION, RR-RR (14X12X9.5)
-
1209409-06314-5PK CLIPCLIP
-
13-146211-32F00-YC6 HANDLE, PILLION RIDER (YC6 - RED)HANDLE, PILLION RIDER (YC6 - RED)
-
13-246211-32F00-33J HANDLE, PILLION RIDER (33J - BLACK)HANDLE, PILLION RIDER (33J - BLACK)
-
13-346211-32F00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)HANDLE, PILLION RIDER (YD8 - SILVER)
-
1407120-06453 BOLTBOLT
-
1509250-05009 CAPCAP
-
1646317-31F00 WASHER, HOOKWASHER, HOOK
-
1746316-31F00 HOOK, HANDLEHOOK, HANDLE
