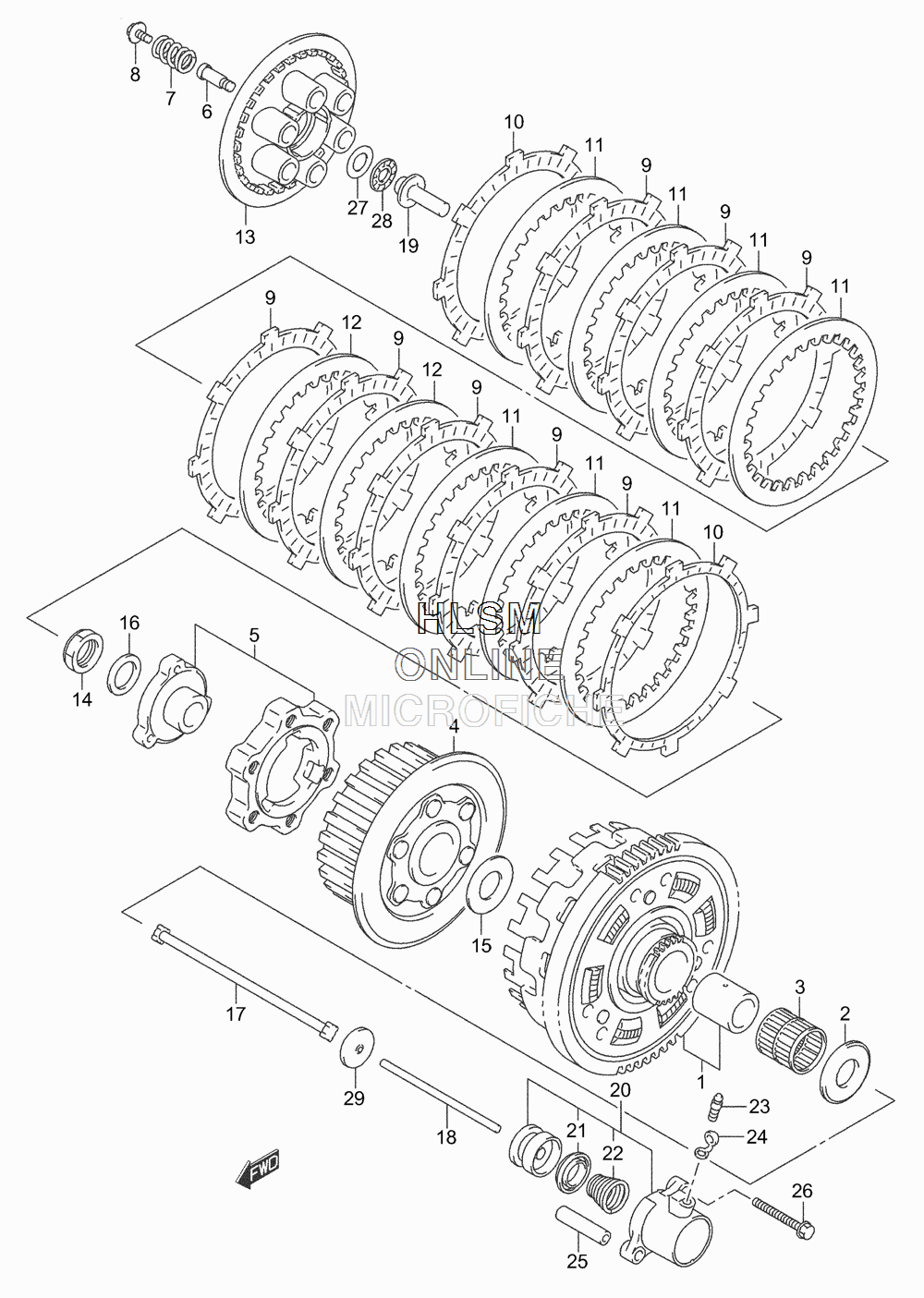

CLUTCH для Suzuki GSX-1300R K1 - 2001 года выпуска
-
№АртикулНазвание
-
121200-24830 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
209160-25037 WASHER (25.1X54X2.5)WASHER (25.1X54X2.5)
-
309263-35013 BEARING (35X40X39.8)BEARING (35X40X39.8)
-
421410-24F00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521610-02F12 CAM SET, CLUTCHCAM SET, CLUTCH
-
621481-02F11 BOLT, SPRING SUPPORTBOLT, SPRING SUPPORT
-
721413-24F10 SPRING, CLUTCHSPRING, CLUTCH
-
821482-02F11 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
921441-24F00 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
1021441-24F10 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1121451-24F00 PLATE, CLUTCH DRIVEN NO.1PLATE, CLUTCH DRIVEN NO.1
-
1221451-24F10 PLATE, CLUTCH DRIVEN NO.2PLATE, CLUTCH DRIVEN NO.2
-
1321462-24F00 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
1409159-24010 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1509160-25072 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1609164-24006 WASHER, CLUTCH SLEEVEWASHER, CLUTCH SLEEVE
-
1723110-24F00 ROD, CLUTCH PUSH RIGHT HANDROD, CLUTCH PUSH RIGHT HAND
-
1823111-26D00 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
1923121-31E10 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2023160-08A02 CYLINDER, CLUTCH RELEASE (INCL. 21-24)CYLINDER, CLUTCH RELEASE (INCL. 21-24)
-
2123163-05A00 CUPCUP
-
2223164-05A00 SPRINGSPRING
-
2359121-01A00 BLEEDERBLEEDER
-
2459122-01A00 CAP, BLEEDERCAP, BLEEDER
-
2504211-09129 PIN, CL RLSE CYLPIN, CL RLSE CYL
-
2607130-06253 BOLT, CL RLSE CYLBOLT, CL RLSE CYL
-
2709160-15045 WASHER, CLUTCH PUSHWASHER, CLUTCH PUSH
-
2809263-15003 BEARING, CLUTCH PUSHBEARING, CLUTCH PUSH
-
2909285-06015 SEAL, CLUTCH PUSHSEAL, CLUTCH PUSH
