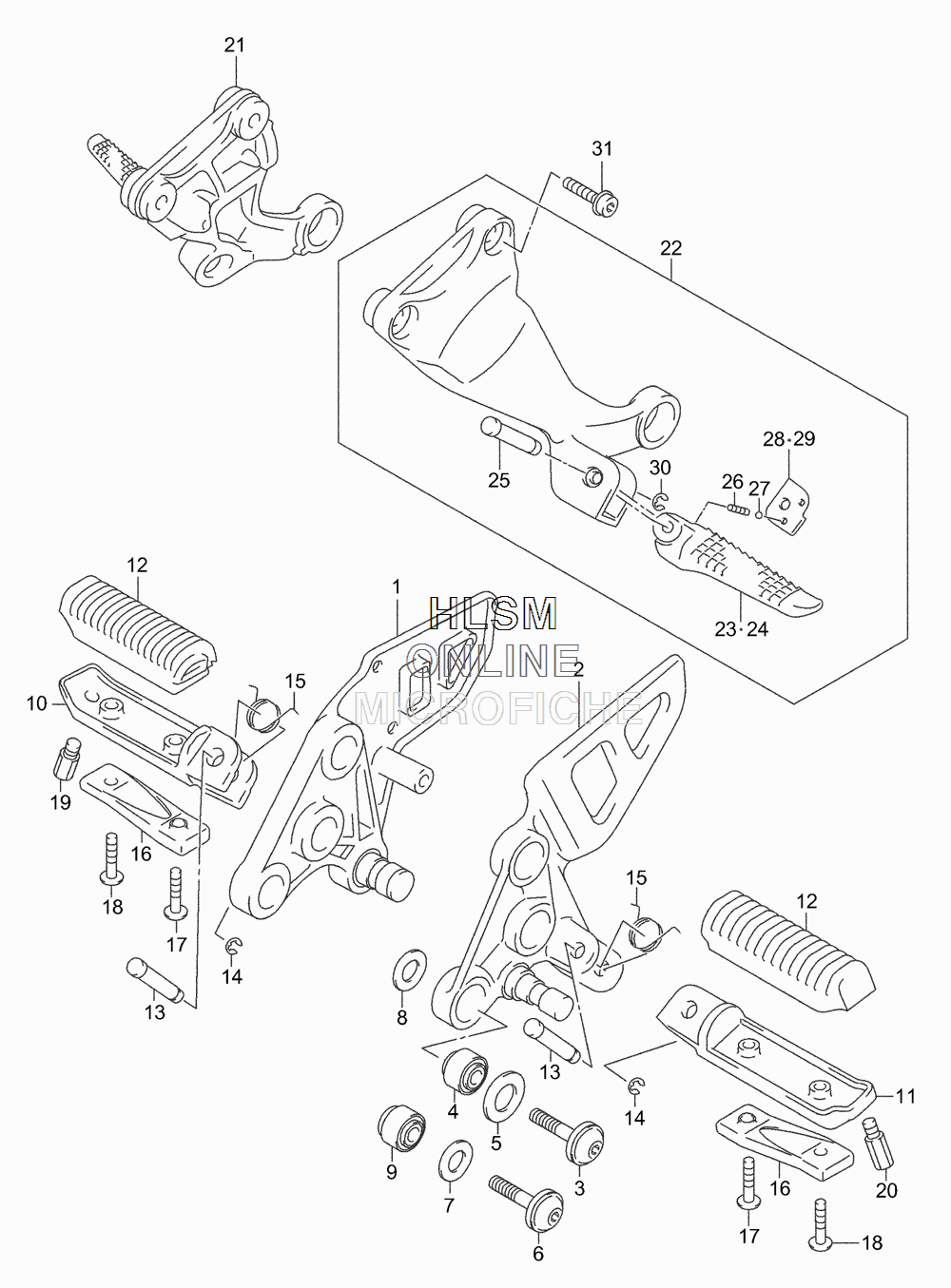

FOOTREST для Suzuki GSX-1300R K1 - 2001 года выпуска
-
№АртикулНазвание
-
143510-24F00 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243521-24F00 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
609106-08147 BOLT, BRACKETBOLT, BRACKET
-
709161-13004 WASHER, OUTERWASHER, OUTER
-
809161-17002 WASHER, INNERWASHER, INNER
-
909319-08045 BUSHBUSH
-
1043531-24F00 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
1143541-24F00 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
1243550-24F00 RUBBERRUBBER
-
1309208-08016 PINPIN
-
1408332-11063 E RINGE RING
-
1509448-18022 SPRINGSPRING
-
1643536-31E20 BALANCERBALANCER
-
1702142-05353 SCREW, INNERSCREW, INNER
-
1802142-05253 SCREWSCREW
-
1943576-48B02 BOLT, BANK SENS0R RIGHT HANDBOLT, BANK SENS0R RIGHT HAND
-
2043576-48B20 BOLT, BANK SENSOR LEFT HANDBOLT, BANK SENSOR LEFT HAND
-
2143600-24F00 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
2243700-24F00 FOOTREST ASSY, PILLION LEFT HAND (INCL. 23-30)FOOTREST ASSY, PILLION LEFT HAND (INCL. 23-30)
-
2343610-33E11 BAR, PILLION RIGHT HANDBAR, PILLION RIGHT HAND
-
2443620-33E11 BAR, PILLION LEFT HANDBAR, PILLION LEFT HAND
-
2509208-06007 PINPIN
-
2609440-05005 SPRINGSPRING
-
2706111-07004 BALLBALL
-
2843816-33E21 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
2943826-33E21 PLATE, LEFT HANDPLATE, LEFT HAND
-
3008332-11043 E RINGE RING
-
3109106-08121 BOLT, BRACKETBOLT, BRACKET
