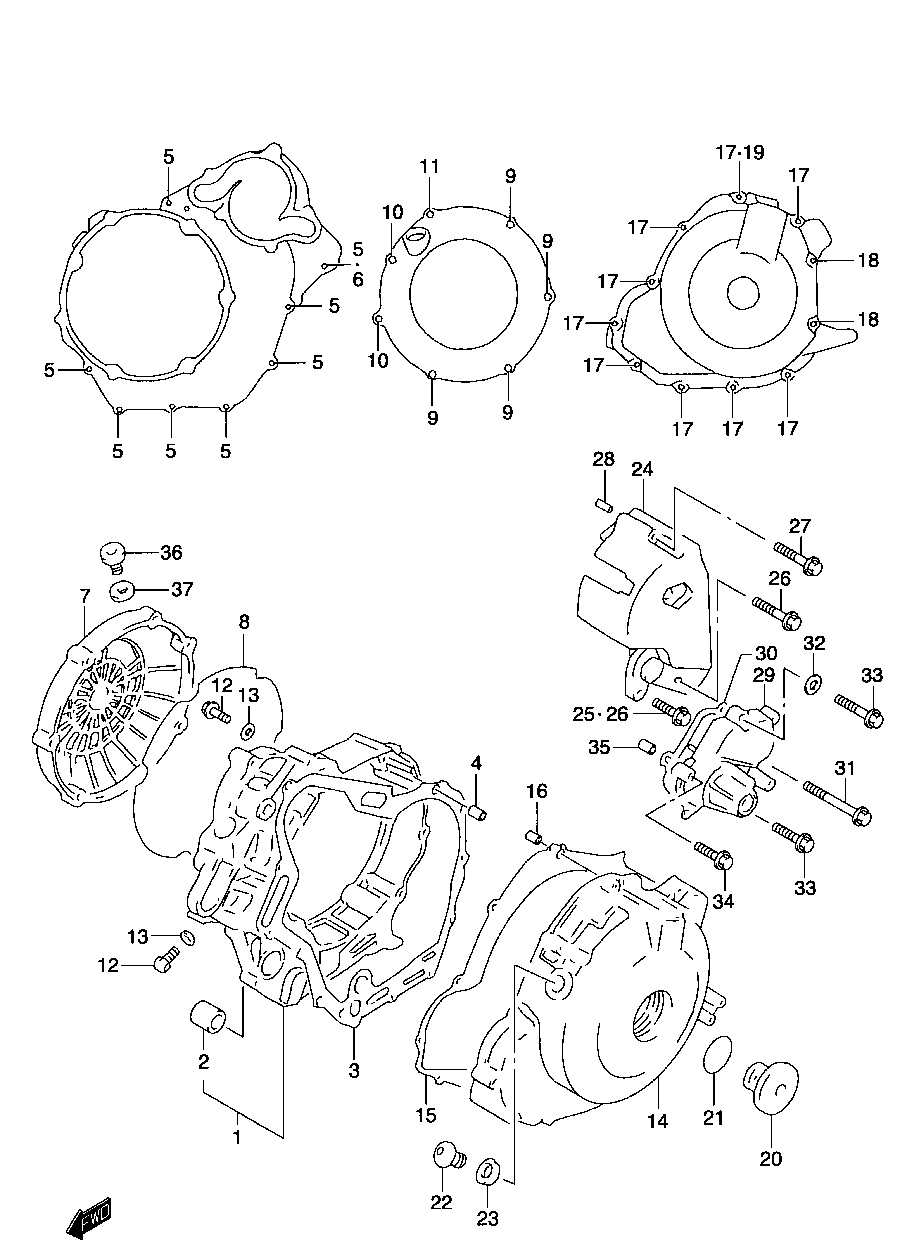

CRANKCASE COVER для Suzuki TL-1000S K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-211340-02F10 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
3-211482-02F10 GASKETGASKET
-
404211-09149 PINPIN
-
501547-06303 BOLTBOLT
-
6-209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
7-211370-02F10 COVER, CLUTCH (OUTER)COVER, CLUTCH (OUTER)
-
8-211484-02F10 O-RINGO-RING
-
901547-06307 BOLTBOLT
-
10-201547-06757 BOLTBOLT
-
1101547-06857 BOLTBOLT
-
12-201550-06103 BOLTBOLT
-
13-209168-06004 GASKETGASKET
-
14-211351-02F01 COVER, MAGNETOCOVER, MAGNETO
-
15-211483-02F10 GASKETGASKET
-
1604211-09149 PINPIN
-
1701547-06357 BOLTBOLT
-
1801547-06707 BOLTBOLT
-
19-209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2009259-36021 PLUGPLUG
-
2109280-33004 O-RING (D:3.1,ID:32.7)O-RING (D:3.1,ID:32.7)
-
2209248-14005 PLUGPLUG
-
2309168-14002 GASKETGASKET
-
2411360-02F00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
26-201547-06357 BOLTBOLT
-
2701547-06757 BOLTBOLT
-
2804211-09149 PINPIN
-
29-211381-02F01 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
30-211485-02F10 GASKETGASKET
-
3109103-06126 BOLTBOLT
-
32-209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
33-101547-06257 BOLT (CHROME)BOLT (CHROME)
-
33-201547-06253 BOLT (GREEN)BOLT (GREEN)
-
34-101547-06357 BOLT (CHROME)BOLT (CHROME)
-
34-201547-06353 BOLT (GREEN)BOLT (GREEN)
-
3504211-09149 PINPIN
-
3609259-20008 PLUG, OIL FILLERPLUG, OIL FILLER
-
3709280-17003 O-RINGO-RING
