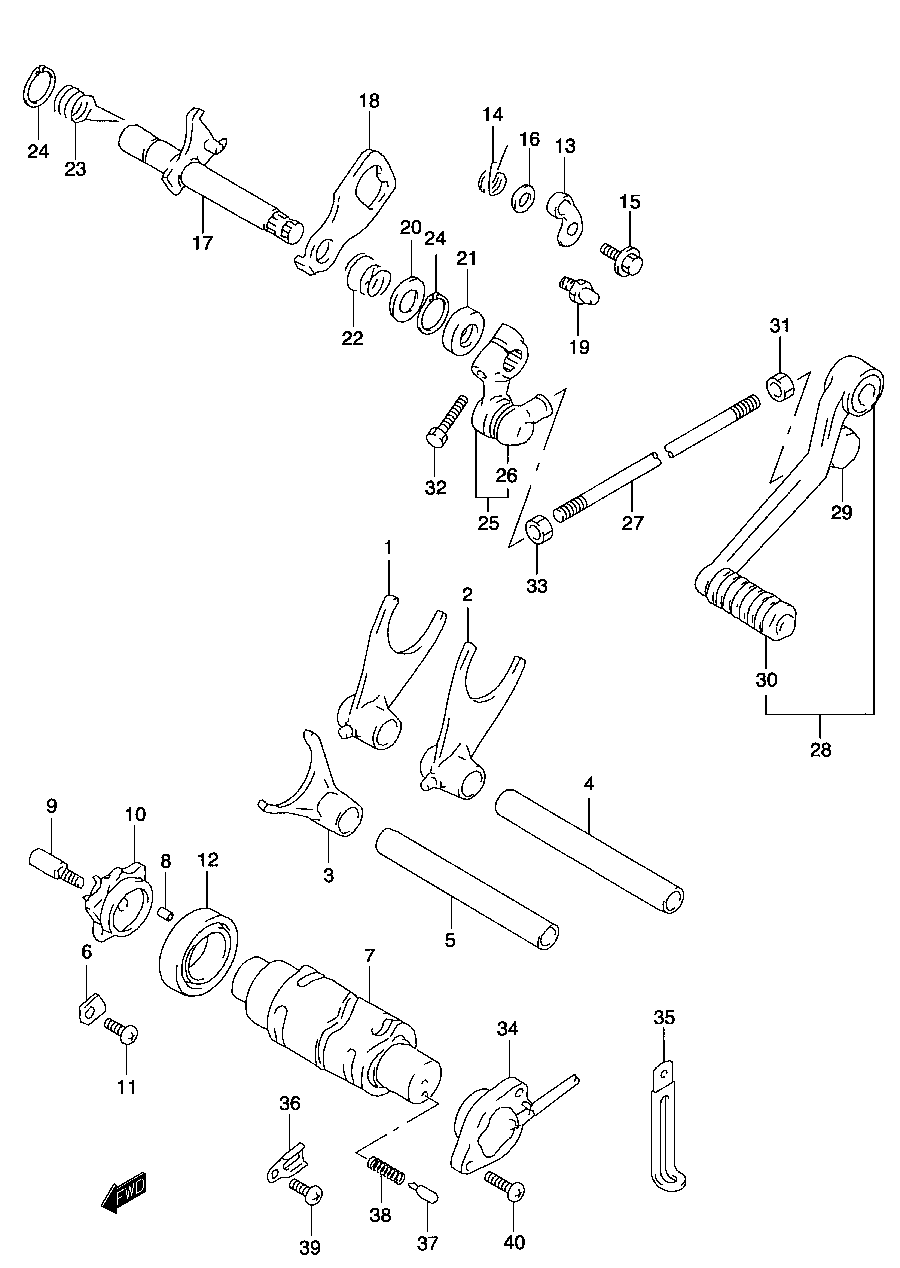

GEAR SHIFTING для Suzuki TL-1000S K1 - 2001 года выпуска
-
№АртикулНазвание
-
125211-17E01 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
225211-17E10 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
325231-17E11 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-02F20 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
525411-02F10 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
624741-21A00 RETAINER, SHIFT CAMRETAINER, SHIFT CAM
-
725310-02F10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 ...PIN, SHIFT CAM...PIN, SHIFT CAM
-
925312-12C00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1025381-13E10 PLATE, GEAR SHIFTPLATE, GEAR SHIFT
-
1102112-06123 SCREW, SHIFT CAMSCREW, SHIFT CAM
-
1208113-69050 BEARING, SHIFT CAMBEARING, SHIFT CAM
-
1325350-26D01 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1425355-13E00 SPRING. STOPPER ARMSPRING. STOPPER ARM
-
1509111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1608211-06141 WASHERWASHER
-
1725510-02F11 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1825512-13E11 PLATE, GEAR SHIFTPLATE, GEAR SHIFT
-
19-225671-01011 STOPPER, GEAR SHIFTSTOPPER, GEAR SHIFT
-
2009181-14167 WASHER, GEAR SHIFT RHWASHER, GEAR SHIFT RH
-
2109283-14006 SEAL, SHIFT SHAFT OILSEAL, SHIFT SHAFT OIL
-
2209440-17009 SPRING. GEAR SHIFT PLATESPRING. GEAR SHIFT PLATE
-
2309444-20001 SPRING, SHIFT SHAFTSPRING, SHIFT SHAFT
-
2408331-31146 CIRCLIP, GEAR SHIFTCIRCLIP, GEAR SHIFT
-
2525520-19C02 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2625526-47000 ...COVER, DUST...COVER, DUST
-
2725525-32C10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
2825600-33E00 LEVER ASSY., GEAR SHIFTLEVER ASSY., GEAR SHIFT
-
2925526-47000 ...COVER, DUST...COVER, DUST
-
3025652-20C00 ...RUBBER...RUBBER
-
3109140-06011 NUTNUT
-
3201500-06253 BOLTBOLT
-
3308310-00067 NUTNUT
-
3437730-02F10 BASE ASSY., GEAR SHIFT TERMBASE ASSY., GEAR SHIFT TERM
-
3509404-06432 CLAMP (L:80)CLAMP (L:80)
-
3631497-45000 CLAMP, GEAR SHIFTCLAMP, GEAR SHIFT
-
3709209-05011 CONTACT, GEAR SHIFTCONTACT, GEAR SHIFT
-
3809440-04010 SPRING, GEAR SHIFT SWSPRING, GEAR SHIFT SW
-
3902112-05103 SCREW, CLAMPSCREW, CLAMP
-
4002112-05163 SCREW, GEAR SHIFT SWSCREW, GEAR SHIFT SW
