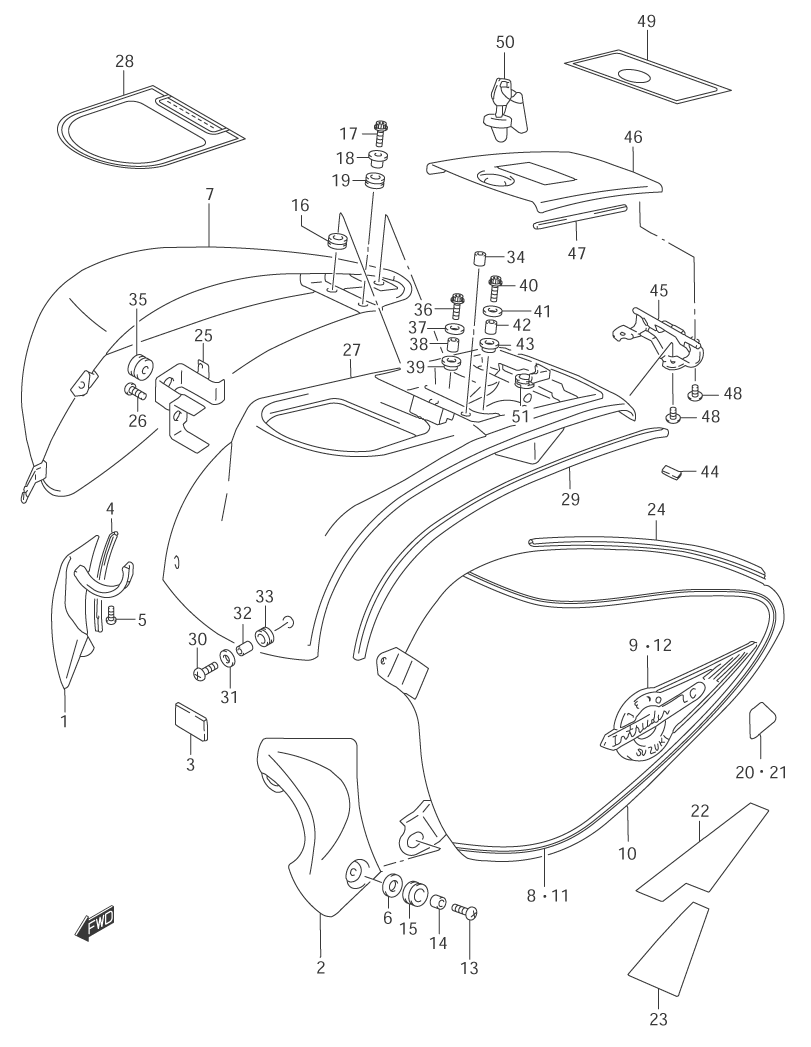

SIDE COVER #1 для Suzuki VL1500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
147510-10F00 COVER, FRAME HEAD (RIGHT)COVER, FRAME HEAD (RIGHT)
-
247520-10F01 COVER, FRAME HEAD (LEFT)COVER, FRAME HEAD (LEFT)
-
347829-10F00 CUSHIONCUSHION
-
447514-10F00 MOLDINGMOLDING
-
509139-06028 SCREWSCREW
-
608322-01063 WASHERWASHER
-
7-147800-10F10-33J COVER ASSY, SIDE (RIGHT) (33J - BLACK)COVER ASSY, SIDE (RIGHT) (33J - BLACK)
-
7-247800-10F10-FG1 COVER ASSY, SIDE (RIGHT) (FG1 - BLACK/BLUE)COVER ASSY, SIDE (RIGHT) (FG1 - BLACK/BLUE)
-
7-347800-10F10-FG2 COVER ASSY, SIDE (RIGHT) (FG2 - GOLD/MAROON)COVER ASSY, SIDE (RIGHT) (FG2 - GOLD/MAROON)
-
8-168135-10F10-BU8 ...TAPE, (RIGHT) (BU8 - GOLD/BLACK) (FOR 33J - BLACK)...TAPE, (RIGHT) (BU8 - GOLD/BLACK) (FOR 33J - BLACK)
-
8-268135-10F10-EZ7 ...TAPE, (RIGHT) (EZ7 - GRAY/BLUE/BLACK) (FOR FG1 - BLACK/BLUE)...TAPE, (RIGHT) (EZ7 - GRAY/BLUE/BLACK) (FOR FG1 - BLACK/BLUE)
-
8-368135-10F10-EZ9 ...TAPE, (RIGHT) (EZ9 - SILVER/MAROON/GOLD) (FOR FG2 - GOLD/MAROON)...TAPE, (RIGHT) (EZ9 - SILVER/MAROON/GOLD) (FOR FG2 - GOLD/MAROON)
-
968111-10F00 EMBLEM, (RIGHT)EMBLEM, (RIGHT)
-
10-147900-10F10-33J COVER ASSY, SIDE (LEFT) (33J - BLACK)COVER ASSY, SIDE (LEFT) (33J - BLACK)
-
10-247900-10F10-FG1 COVER ASSY, SIDE (LEFT) (FG1 - BLACK/BLUE)COVER ASSY, SIDE (LEFT) (FG1 - BLACK/BLUE)
-
10-347900-10F10-FG2 COVER ASSY, SIDE (LEFT) (FG2 - GOLD/MAROON)COVER ASSY, SIDE (LEFT) (FG2 - GOLD/MAROON)
-
11-168145-10F10-BU8 ...TAPE, (LEFT) (BU8 - GOLD/BLACK) (FOR 33J - BLACK)...TAPE, (LEFT) (BU8 - GOLD/BLACK) (FOR 33J - BLACK)
-
11-268145-10F10-EZ7 ...TAPE, (LEFT) (EZ7 - GRAY/BLUE/BLACK) (FOR FG1 - BLACK/BLUE)...TAPE, (LEFT) (EZ7 - GRAY/BLUE/BLACK) (FOR FG1 - BLACK/BLUE)
-
11-368145-10F10-EZ9 ...TAPE, (LEFT) (EZ9 - SILVER/MAROON/GOLD) (FOR FG2 - GOLD/MAROON)...TAPE, (LEFT) (EZ9 - SILVER/MAROON/GOLD) (FOR FG2 - GOLD/MAROON)
-
1268121-10F00 EMBLEM, (LEFT)EMBLEM, (LEFT)
-
1309139-06030 SCREWSCREW
-
1409180-06260 SPACERSPACER
-
1509320-08021 CUSHIONCUSHION
-
1647822-10F00 CUSHION, OUTERCUSHION, OUTER
-
1707120-06203 BOLT, INNERBOLT, INNER
-
1847827-10F00 WASHERWASHER
-
1947826-10F00 CUSHIONCUSHION
-
2047838-10F00 TAPE, SIDE COVER (UPPER) (RIGHT)TAPE, SIDE COVER (UPPER) (RIGHT)
-
2147848-10F00 TAPE, SIDE COVER (UPPER) (LEFT)TAPE, SIDE COVER (UPPER) (LEFT)
-
2247835-10F00 CUSHION, SIDE (UPPER) (RIGHT) NO.1CUSHION, SIDE (UPPER) (RIGHT) NO.1
-
2347836-10F00 CUSHION, SIDE (UPPER) (RIGHT) NO.2CUSHION, SIDE (UPPER) (RIGHT) NO.2
-
2447837-10F00 MOLDING, SIDE (UPPER) (LOWER)MOLDING, SIDE (UPPER) (LOWER)
-
2547850-10F00 BRACKET, SIDE COVER (RIGHT)BRACKET, SIDE COVER (RIGHT)
-
2601550-06163 BOLTBOLT
-
2747821-10F00 COVER, METERCOVER, METER
-
2868897-10F10 TAPE, METER COVERTAPE, METER COVER
-
2947824-10F00 MOLDINGMOLDING
-
3009139-06030 SCREW, (FRONT)SCREW, (FRONT)
-
3109160-06036 WASHERWASHER
-
3209180-06256 SPACERSPACER
-
3309320-08051 CUSHIONCUSHION
-
3409321-06013 CUSHION, LIDCUSHION, LID
-
3509321-10007 CUSHION, SIDECUSHION, SIDE
-
3607120-06253 BOLT, (CENTER)BOLT, (CENTER)
-
3709160-06084 WASHERWASHER
-
3809180-06265 SPACERSPACER
-
3947825-10F00 CUSHIONCUSHION
-
4007120-06163 BOLT, (REAR)BOLT, (REAR)
-
4109160-06084 WASHERWASHER
-
4209180-06256 SPACERSPACER
-
4309320-08051 CUSHIONCUSHION
-
4447829-10F00 CUSHION, (REAR)CUSHION, (REAR)
-
4547380-10F00 HINGE, FUEL LIDHINGE, FUEL LID
-
4647811-10F00 LID, FUEL INLETLID, FUEL INLET
-
4747812-10F00 CUSHION, LIDCUSHION, LID
-
4802142-06123 SCREWSCREW
-
4968898-10F10 TAPE, FUEL LIDTAPE, FUEL LID
-
5147828-10F00 CUSHION, INLET COVER (REAR) (LEFT)CUSHION, INLET COVER (REAR) (LEFT)
