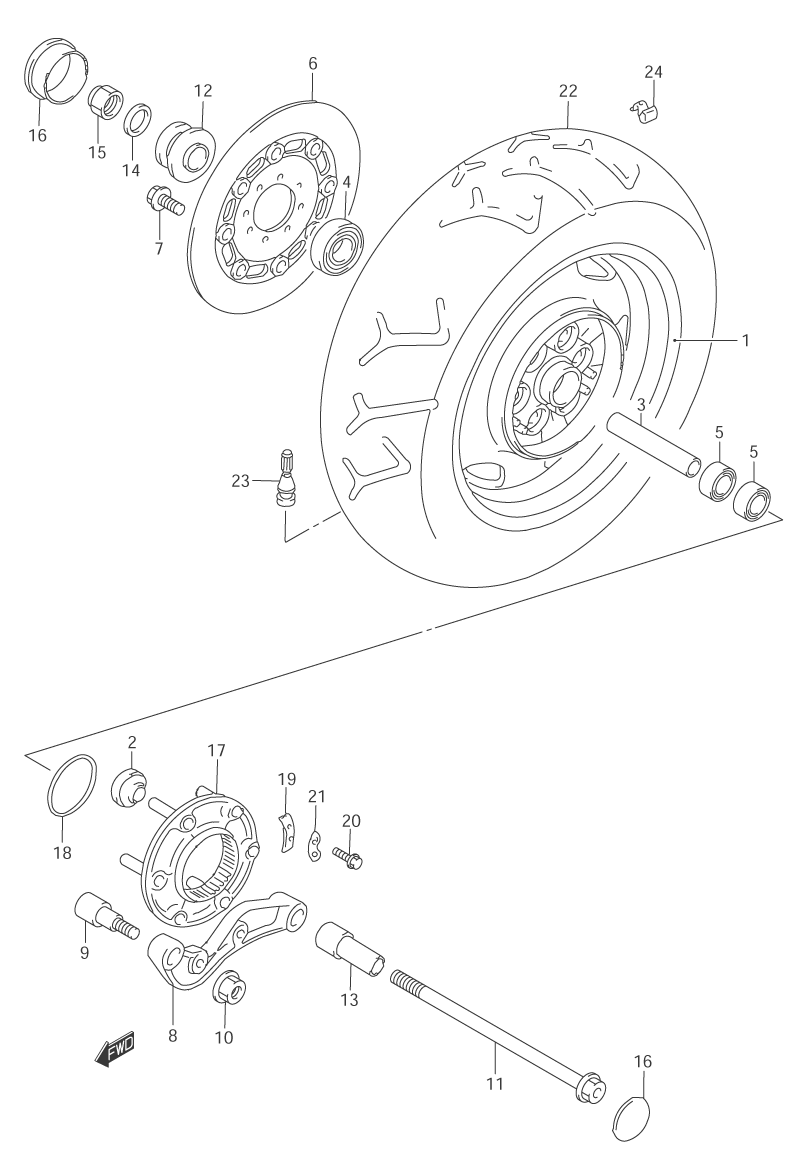

WHEEL - REAR для Suzuki VL1500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
164100-10820-12R WHEEL SET, (REAR) (MT5.00X15) (12R - SILVER)WHEEL SET, (REAR) (MT5.00X15) (12R - SILVER)
-
209319-12019 ...BUSHING (12X41X34)...BUSHING (12X41X34)
-
309180-20112 SPACER (20.8X27.2X124)SPACER (20.8X27.2X124)
-
408133-62047 BEARING, (RIGHT)BEARING, (RIGHT)
-
509262-20042 BEARING, (LEFT) (20X47X14)BEARING, (LEFT) (20X47X14)
-
669210-10F10 DISC, (REAR) BRAKEDISC, (REAR) BRAKE
-
709106-08125 BOLT, DISC (8X33)BOLT, DISC (8X33)
-
869721-10F00 BRACKET, (REAR) CALIPERBRACKET, (REAR) CALIPER
-
964241-10F00 PIN, BRACKETPIN, BRACKET
-
1008319-31123 NUTNUT
-
1164711-10F00 AXLE, (REAR)AXLE, (REAR)
-
1264740-10F00 SPACER, AXLE (RIGHT)SPACER, AXLE (RIGHT)
-
1364772-10F00 SPACER, AXLE (LEFT)SPACER, AXLE (LEFT)
-
1408322-01183 WASHERWASHER
-
1509159-18004 NUTNUT
-
1664792-38B00 CAP, (REAR) AXLECAP, (REAR) AXLE
-
1764680-24A00 JOINT ASSY, (REAR) HUBJOINT ASSY, (REAR) HUB
-
1809280-65003 O-RING (D:2.1,ID:65.0)O-RING (D:2.1,ID:65.0)
-
1964677-45110 WASHER, THRUSTWASHER, THRUST
-
2009119-06049 BOLT (6X16)BOLT (6X16)
-
2109169-06030 WASHERWASHER
-
2265110-10F00 TIRE, (REAR) (180/70-15M/C 76H) (BRIDGESTONE)TIRE, (REAR) (180/70-15M/C 76H) (BRIDGESTONE)
-
2343130-24A00 VALVE ASSY, WHEEL RIM TR412VALVE ASSY, WHEEL RIM TR412
-
24-143232-82000 BALANCER (10G)BALANCER (10G)
-
24-243234-82000 BALANCER (20G)BALANCER (20G)
-
24-343236-82000 BALANCER (30G)BALANCER (30G)
