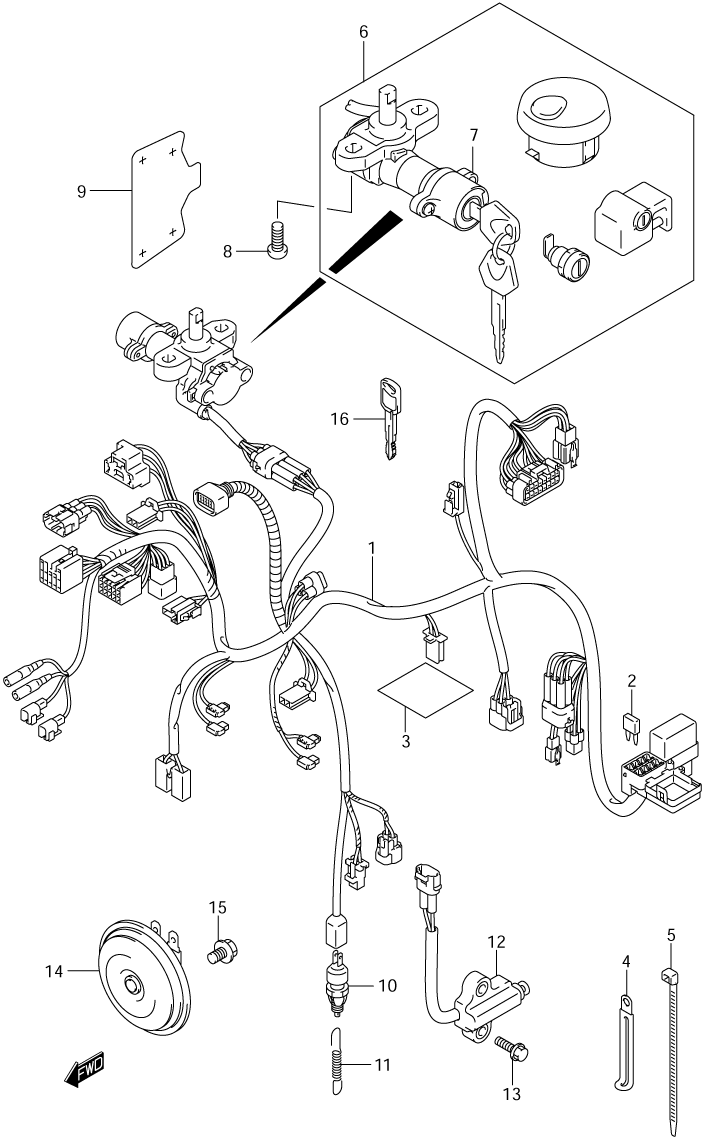

ELECTRICAL - WIRING HARNESS для Suzuki VL800 K1 VOLUSIA - 2001 года выпуска
-
№АртикулНазвание
-
136610-41F10 HARNESS, WIRINGHARNESS, WIRING
-
2-109481-10501 ...FUSE (10A)...FUSE (10A)
-
2-209481-15501 ...FUSE (15A)...FUSE (15A)
-
336611-41F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
409404-06434 CLAMP (L:95)CLAMP (L:95)
-
5-109407-11402 CLAMP (L:90)CLAMP (L:90)
-
5-209407-14403 CLAMP (L:125)CLAMP (L:125)
-
5-309407-18402 CLAMP (L:165)CLAMP (L:165)
-
5-409407-25401 CLAMP (L:235)CLAMP (L:235)
-
6-137000-41820 LOCK SET (EXCEPT CALIF.)LOCK SET (EXCEPT CALIF.)
-
6-237000-41830 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
737100-41F10 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
809139-08016 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
937187-41F00 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
1037740-24A00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1109443-06073 SPRING, STOP LAMPSPRING, STOP LAMP
-
1237840-41F00 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
1301550-06203 BOLTBOLT
-
1438500-41F00 HORN ASSY.HORN ASSY.
-
1501550-08123 BOLTBOLT
-
1637146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
