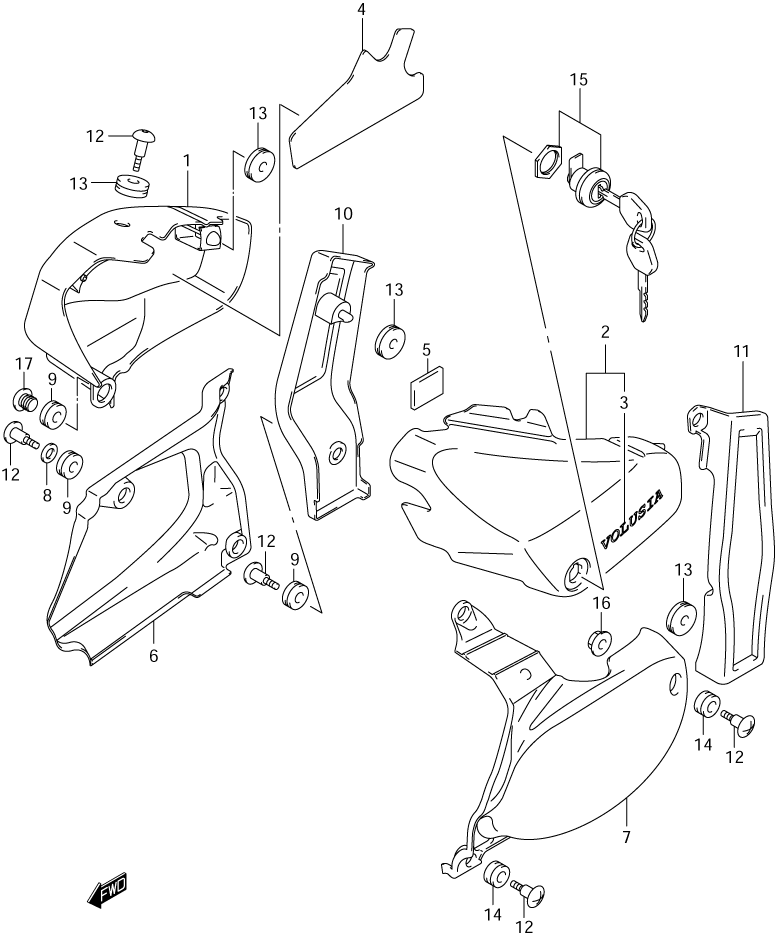

SIDE COVER для Suzuki VL800 K1 VOLUSIA - 2001 года выпуска
-
№АртикулНазвание
-
1-147110-41F00-33J COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (EXCEPT CALIF.)COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (EXCEPT CALIF.)
-
1-247110-41F00-YM7 COVER, FRAME (RIGHT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (US)COVER, FRAME (RIGHT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (US)
-
1-347110-41F20-33J COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (CALIF. ONLY)COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (CALIF. ONLY)
-
1-447110-41F20-YM7 COVER, FRAME (RIGHT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (CALIF. ONLY)COVER, FRAME (RIGHT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (CALIF. ONLY)
-
2-147210-41F00-33J COVER, FRAME (LEFT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (EXCEPT CALIF.)COVER, FRAME (LEFT) (33J - BLACK) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE) (EXCEPT CALIF.)
-
2-247210-41F00-YM7 COVER, FRAME (LEFT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (CALIF. ONLY)COVER, FRAME (LEFT) (YM7 - BLUE) (FOR FP5 - BLUE/BLUE) (CALIF. ONLY)
-
3-168131-41F00-FW8 ...EMBLEM (FW8 - SILVER/BLACK/GRAY) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE)...EMBLEM (FW8 - SILVER/BLACK/GRAY) (FOR 33J -BLACK, FP3 - BLACK/RED, FP4 - BLACK/WHITE)
-
3-268131-41F00-FW7 ...EMBLEM (FW7 - SILVER/BLACK/BLUE/GRAY) (FOR FP5 - BLUE/BLUE)...EMBLEM (FW7 - SILVER/BLACK/BLUE/GRAY) (FOR FP5 - BLUE/BLUE)
-
447166-41F00 SHIELD, FRAME COVER (RIGHT)SHIELD, FRAME COVER (RIGHT)
-
593676-80020 CUSHION, (LEFT)CUSHION, (LEFT)
-
647130-41F00 COVER, SIDE LOWER (RIGHT)COVER, SIDE LOWER (RIGHT)
-
747231-41F00 COVER, SIDE LOWER (LEFT)COVER, SIDE LOWER (LEFT)
-
809160-10123 WASHERWASHER
-
909320-08021 CUSHIONCUSHION
-
1047141-41F00-019 COVER, SIDE REAR (RIGHT) (BLACK)COVER, SIDE REAR (RIGHT) (BLACK)
-
1147241-41F00-019 COVER, SIDE REAR (LEFT) (BLACK)COVER, SIDE REAR (LEFT) (BLACK)
-
1209139-06087 SCREWSCREW
-
1309320-08018 CUSHIONCUSHION
-
1409320-09501 CUSHIONCUSHION
-
1595700-07860 LOCK SET, FUEL LIDLOCK SET, FUEL LID
-
1608316-10063 NUT, SIDE LOWER (LEFT)NUT, SIDE LOWER (LEFT)
-
1709250-09001 PLUGPLUG
