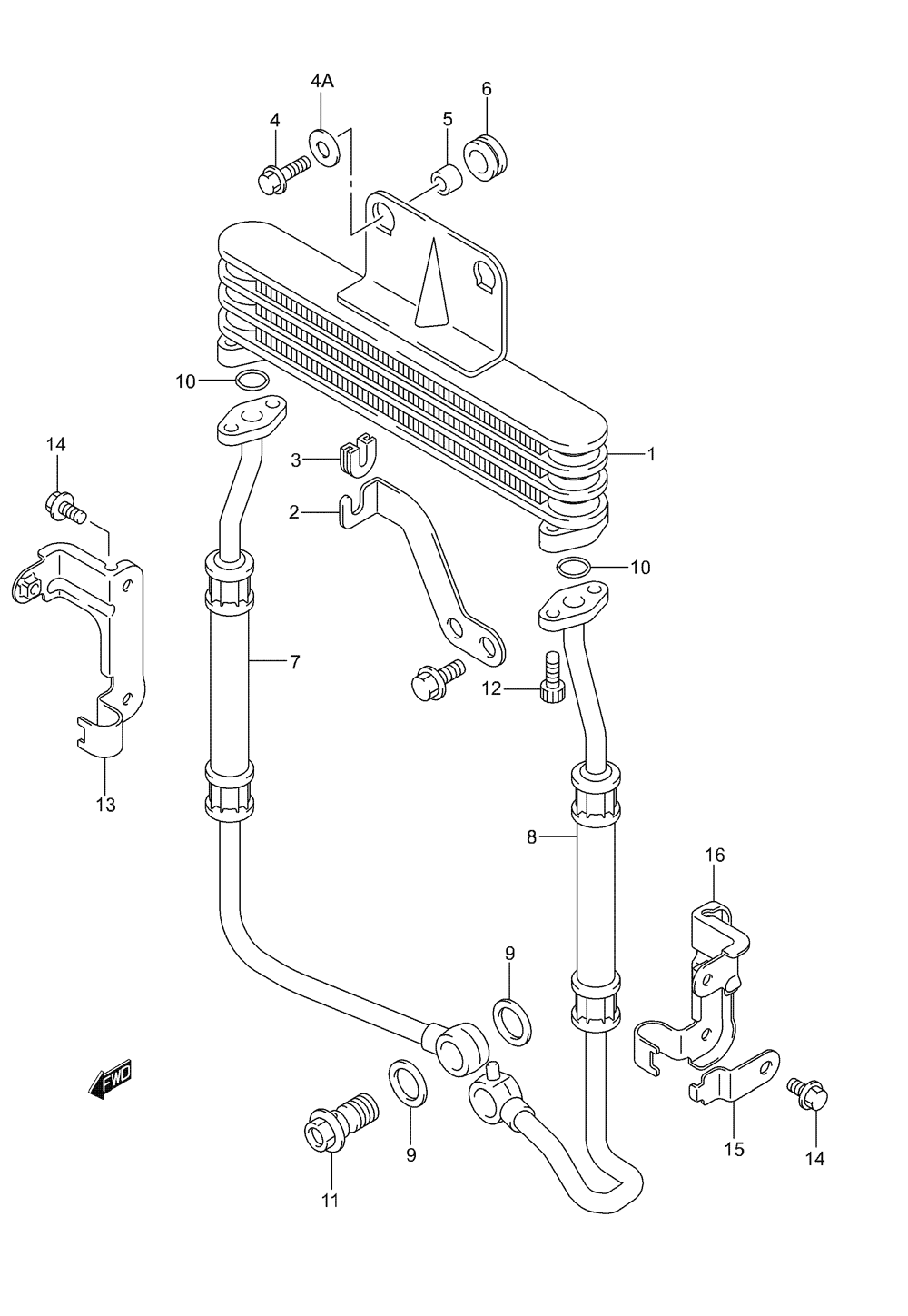

OIL COOLER для Suzuki GS-500F K3 - 2003 года выпуска
-
№АртикулНазвание
-
116600-01D01 COOLER ASY, OILCOOLER ASY, OIL
-
216621-0BE00-E0N BRACKET, OIL COOLERBRACKET, OIL COOLER
-
316628C27A00J000 CUSHIONCUSHION
-
4D1507-06205 BOLTBOLT
-
4AD8322-91065 WASHERWASHER
-
509180C06310J000 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
609320-10501 CUSHIONCUSHION
-
716460-01D00 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
816470-01D00 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
909168-14015 GASKET (16X22X2)GASKET (16X22X2)
-
1009280-12005 O RING (D:2.4, ID:11.8)O RING (D:2.4, ID:11.8)
-
1109360-14012 BOLT (16X32)BOLT (16X32)
-
12D7107-06165 BOLTBOLT
-
1316480-01D00-E0N CLAMP, OIL HOSE RIGHT HANDCLAMP, OIL HOSE RIGHT HAND
-
14D1557-06125 BOLTBOLT
-
1516492-01D00-E0N GUIDE, OIL HOSEGUIDE, OIL HOSE
-
1616490-01D00-E0N CLAMP, OIL HOSE LEFT HANDCLAMP, OIL HOSE LEFT HAND
