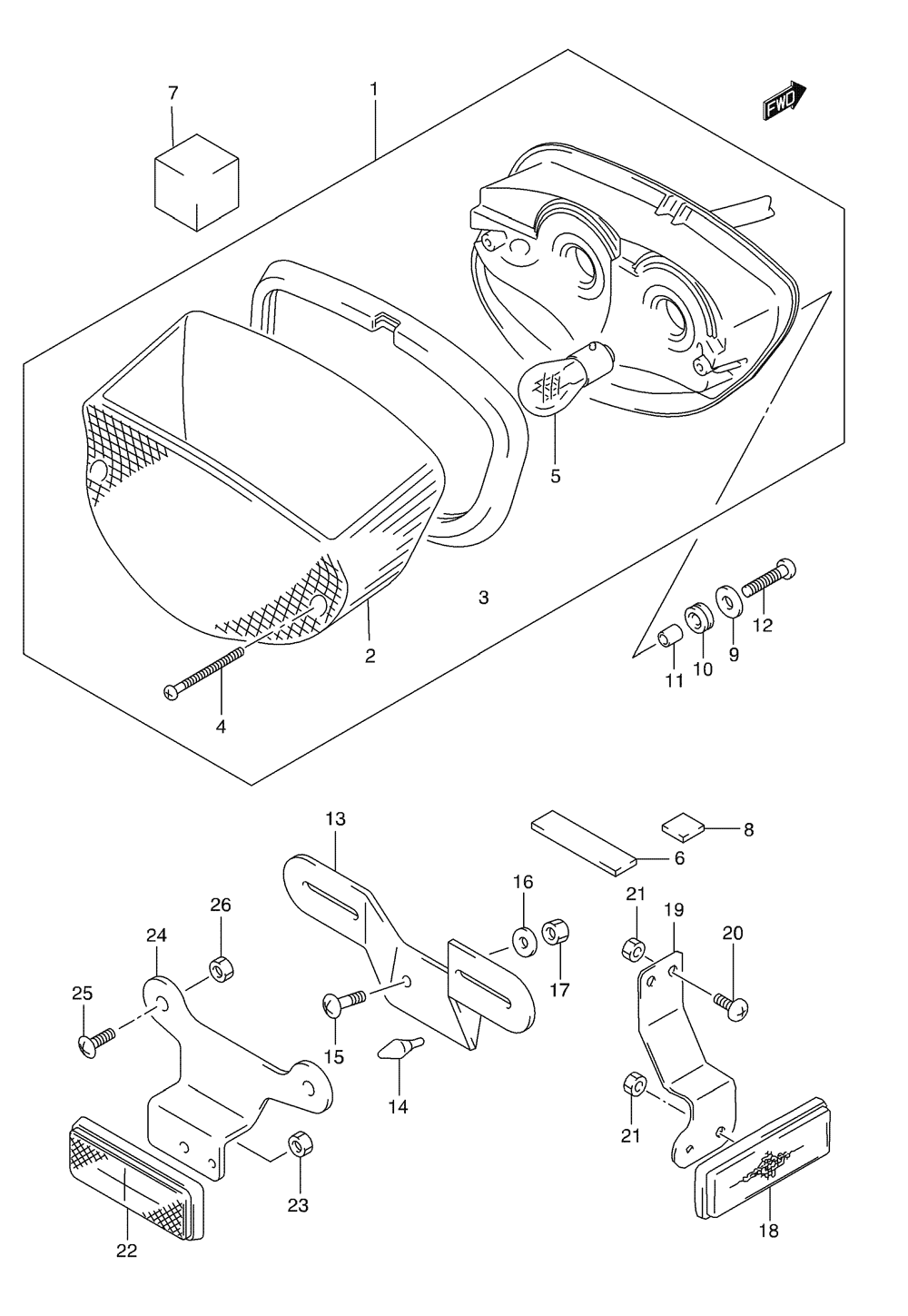

TAILLIGHT ASSY. для Suzuki GS-500F K3 - 2003 года выпуска
-
№АртикулНазвание
-
135710-01D30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235712-01D20 LENSLENS
-
335713-01D20 GASKET, LENSGASKET, LENS
-
403511-04403 SCREWSCREW
-
509471-12204 BULB (12V,32/3CP)BULB (12V,32/3CP)
-
633652C01D10J000 CUSHION (80X20X10)CUSHION (80X20X10)
-
733652C01D20J000 CUSHION, UPPER (40X40X38)CUSHION, UPPER (40X40X38)
-
833652C09400J000 CUSHION, LOWER (20X20X6)CUSHION, LOWER (20X20X6)
-
9D8322-91065 WASHERWASHER
-
1009320-09009 CUSHIONCUSHION
-
1109180-06262 SPACER (6.5X9X8.5)SPACER (6.5X9X8.5)
-
12D2116-06205 SCREWSCREW
-
1335927-01D30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1409321-06026 CUSHIONCUSHION
-
15D2116-06165 SCREWSCREW
-
16D8322-91065 WASHERWASHER
-
17D8310-00065 NUTNUT
-
1835970-24D60 REFLEX REFLECTOR, REAR SIDEREFLEX REFLECTOR, REAR SIDE
-
1935977-01D11 BRACKET, REAR SIDE REARBRACKET, REAR SIDE REAR
-
2002142-05123 SCREWSCREW
-
2108310-00053 NUTNUT
-
2235970-09EF0 REFLEX REFLECTOR ASSY, REARREFLEX REFLECTOR ASSY, REAR
-
23D8310-00055 NUTNUT
-
2435974-01D00 BRACKET, REAR REFLEX REFLECTORBRACKET, REAR REFLEX REFLECTOR
-
25D2116-06125 SCREWSCREW
-
26D8310-00065 NUTNUT
